ACB-2107 (discontinued)

7” Acendo Book Scheduling Touch Panel

ACB-2107
Larger Images

This product is discontinued with a projected last order date of December 31, 2018.
The suggested alternative is MD-702 Acendo Book.

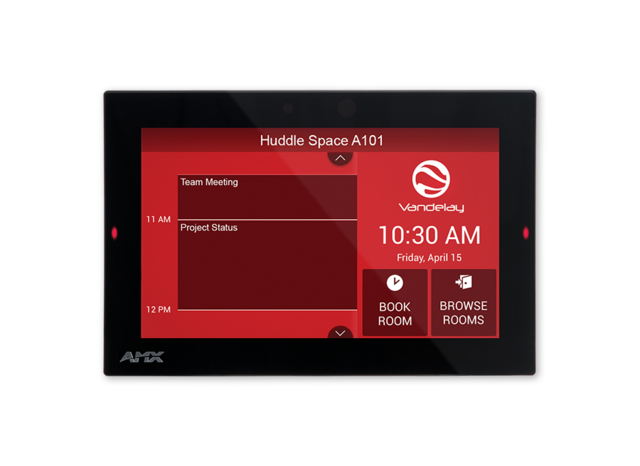

The Acendo Book 7" Touch Panel is a standalone scheduling panel that integrates directly with popular room scheduling software like Microsoft Exchange, Office 365, and Google Calendar without additional system hardware requirements. The user interface background color and built-in room availability bars change between red and green to show room availability so users can easily locate and book an available room directly from the panel and, if that room is currently booked, users can quickly locate the nearest available room or the next available time with ease.

Leveraging the style and cost-efficiency of our award winning Modero S Series Touch Panel, ACB-2107 includes SmoothTouch™ Technology, a brilliant full-color high-resolution display, wide viewing angle of screen and availability bar LEDs, and a low profile design for a subtle aesthetic. The ACB-2107 can be mounted on any flat surface, including glass or stone, inside or outside a conference room or classroom.

ACB-2107 is easy to install using a one-time, panel-based configuration wizard, to get the panel operational in a matter of minutes with minimal training.

COMMON APPLICATIONS

Ideal for small/medium businesses wishing to optimize room utilization by implementing facility-wide room scheduling on a budget

Videos





Downloads

  Version Language Size Uploaded
file type icon Data Sheet
updated: Mar 2024
    292 KB Mar 2024
Manuals
file type icon Instruction Manual - Acendo Book Scheduling Touch Panels
updated: Jul 2018
    3.91 MB Jul 2018
CAD Drawings
file type icon Pictorial Drawing - ACB-2107, 7" Acendo Book Scheduling Touch Panel (PDF)
updated: Apr 2018
    108 KB Apr 2018
file type icon Pictorial Drawing - ACB-2107, 7" Acendo Book Scheduling Touch Panel (DXF)
updated: Apr 2018
    1.16 MB Apr 2018
Firmware
platform icon AMX RoomBook and AMX Acendo Book Scheduling Touch Panels Firmware
version 1.1.22, updated: Aug 2018
1.1.22     159 MB Aug 2018
platform icon Acendo Book (RMBK and ACB Panels) CloudworX Firmware
version 1.3.49, updated: Oct 2019
1.3.49     171 MB Oct 2019
Quick Start Guides
file type icon Quick Start Guide - ACB-2107 Acendo Book 7” Scheduling Touch Panel
updated: Oct 2020
    238 KB Oct 2020
Safety Sheets
file type icon Safety Instructions - Acendo Book Scheduling Touch Panel
updated: Oct 2020
    5.15 MB Oct 2020
Certifications
file type icon RoomBook Scheduling Touch Panel IECEE CB Test Certificate
updated: Apr 2018
    120 KB Apr 2018
file type icon RoomBook Scheduling Touch Panel CE Declaration of Conformity
updated: Apr 2018
    50.3 KB Apr 2018
file type icon RoomBook Scheduling Touch Panel UL Notice of Authorization To Apply The UL Mark
updated: Apr 2018
    108 KB Apr 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Standalone Scheduling Panel that's Quick and Easy to Install – Reduces cost by streamlining installation, simplifying configuration, and eliminating the need for a controller and monitoring software
  • Directly Integrates with Microsoft Exchange, Office 365 and Google Calendar – Synchronizes with the most popular scheduling platforms without additional software or configuration complications
  • Based on Modero S Hardware – Provides all the benefits of our most popular Modero S Scheduling Panels including award-winning industrial design, SmoothTouch™ Technology, and brilliant full-color display
  • On-Panel Room Booking – Quickly book available rooms directly from the panel
  • Diverse Mounting Options – Mount the panel virtually anywhere, including glass
  • Available Room Locator – Panel will suggest other currently available rooms at the push of a button
  • Availability Indicators on the Front and Sides of the Panel – 180 degree Visibility allows users to easily determine whether the room is currently available

Specifications

Display Size (WH) Landscape: 7.3" x 4.8" (186 mm x 122 mm), 8.8" (222 mm) diagonal
Viewable Area (WH) Landscape: 6.05" x 3.54" (154 mm x 90 mm), 7.0" (178 mm) diagonal
Resolution 1024x600
Viewing Angle Vertical: ± 89°, Horizontal: ± 89°
Aspect Ratio 16:9
Touch Overlay Resistive
Front Panel Components Sleep Button, Programmable Red/Green LEDs. See Data Sheet for details.
Power Consumption Full-On: 11 W maximum
FG Numbers FG4221-07
