DX-TX-WP (discontinued)

DXLink™ Multi-Format Wallplate Transmitters

DX-TX-WP

The DXLink Multi-Format Wallplate Transmitter sends analog or digital video including HDMI/HDCP, along with embedded audio or supplemental analog audio up to 100 meters to an Enova DGX Digital Media Switcher, compatible Enova DVX All-In-One Presentation Switcher, or directly to a DXLink Receiver. It receives Power over DXLink* from the Enova DGX, Enova DVX (3155HD, 3156HD or 2155HD), PS-POE-AT-TC High Power PoE Injector or PDXL-2 Dual Power over DXLink Controller over the twisted pair cable and features both a multi-format analog port to support legacy devices and an HDMI port to support newer digital devices.

Common Applications

Mount the DXLink Multi-Format Wallplate Transmitter in the wall or lectern to connect guest equipment and send audio and video signals across the room, on the other side of the house or in a classroom down the hall. Since it is powered remotely, the wallplate can be installed virtually anywhere.

Downloads

  Version Language Size Uploaded
file type icon Data Sheet
updated: Mar 2024
    365 KB Mar 2024
Manuals
file type icon Hardware Reference Manual - DXLink Twisted Pair Transmitters/Receiver
updated: Mar 2018
    3.83 MB Mar 2018
file type icon Support Guide – IO Board and Endpoint Compatibility
updated: Feb 2021
    46.4 KB Feb 2021
CAD Drawings
file type icon Pictorial Drawing - DXLink Multi-Format Wallplate Transmitters (DWG)
updated: Oct 2020
    349 KB Oct 2020
file type icon Pictorial Drawing - DXLink Multi-Format Wallplate Transmitters (PDF)
updated: Oct 2020
    311 KB Oct 2020
Bim Objects
file type icon DX-TX-WP - BIM Object
updated: Aug 2019
    Aug 2019
Firmware
platform icon DXLink Transmitter Firmware
version 1.6.29, updated: Sep 2018
1.6.29     488 KB Sep 2018
platform icon DXLink Transmitter Firmware (100 Series Compatible)
version 1.8.47, updated: Oct 2020
1.8.47     528 KB Oct 2020
A&E (Architectural & Engineering) Specifications
file type icon A&E Spec - AVB-WP-TX-MULTI-DXLINK DXLink Multi-Format Wallplate Transmitters
updated: Jun 2018
    33.5 KB Jun 2018
Certifications
file type icon DX-TX-DWP/DX-TX-WP UL Certificate of Compliance
updated: Apr 2018
    246 KB Apr 2018
file type icon DX-TX-DWP/DX-TX-WP CE Declaration of Conformity
updated: Apr 2018
    255 KB Apr 2018
file type icon DX-TX-DWP/DX-TX-WP IECEE CB Test Certificate
updated: Apr 2018
    149 KB Apr 2018
Whitepapers
file type icon Using SDI with the Enova DGX & DVX
updated: Oct 2020
    484 KB Oct 2020
file type icon Cabling for Success with DXLink
updated: Oct 2020
    1.6 MB Oct 2020
Quick Start Guides
file type icon Quick Start Guide - DXLink Multi-Format Wallplate/Decor Style Wallplate Transmitter
updated: Mar 2018
    550 KB Mar 2018
Product Guides
file type icon DXLink Compatibility Tool
updated: Apr 2021
    Apr 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Only One Cable – Send audio and video, while passing Ethernet signals and power over one twisted pair cable
  • Multi-Format Analog Port and HDMI Port – Supports legacy analog signals - RGBHV, Component, S-Video, and Composite, and digital HDMI/HDCP, DisplayPort++ and DVI signals
  • Send HDMI signals up to 100 meters – Extend the reach of the HDMI signals far beyond the capabilities of typical HDMI cabling
  • Standard Twisted Pair Cable – Save time and effort in installation by leveraging cost effective twisted pair cable, see the Cabling for Success with DXLink white paper for more details
  • Power over DXLink* Enabled – Designed for use with Enova DGX or DVX systems with DXLink inputs, PS-POE-AT-TC (FG423-84) or PDXL-2 (FG1090-170) to provide remotely located Power over DXLink (requires firmware v1.2.40 or above)
  • DXLink Direct Connection – When receiving Power over DXLink* from the PS-POE-AT-TC or PDXL-2, DXLink Wallplates can be connected directly to a DXLink Receiver for a point-to-point solution



* Power must be supplied by one of the following DXLink Power sourcing devices: Enova DGX 8/16/32/64 Digital Media Switcher (with a DXLink Twisted Pair Input Board installed), Compatible Enova DVX All-In-One Presentation Switcher (3155HD, 3156HD or 2155HD), PS-POE-AT-TC High Power PoE Injector or PDXL-2 Power over DXLink Controller. AMX only supports the use of these approved Power over DXLink solutions. Other third party power supplies or non-compatible standard PoE solutions may damage the DXLink equipment.

Specifications

Dimensions (HWD) 4 11/16" x 6" x 1 5/16" (11.90 cm x 15.20 cm x 3.33 cm)
Twisted Pair Cable Type & Length Shielded Cat6, Cat6A and Cat7; up to 328 ft (100 m)
USB (HID) (1) USB Mini A/B Connector (“HOST”); Use in conjunction with an Enova DGX Digital Media Switcher

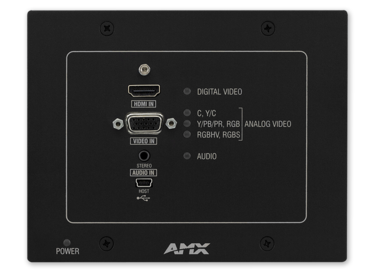

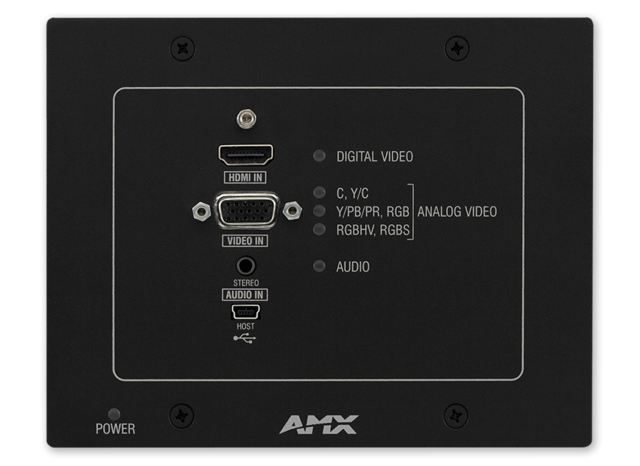

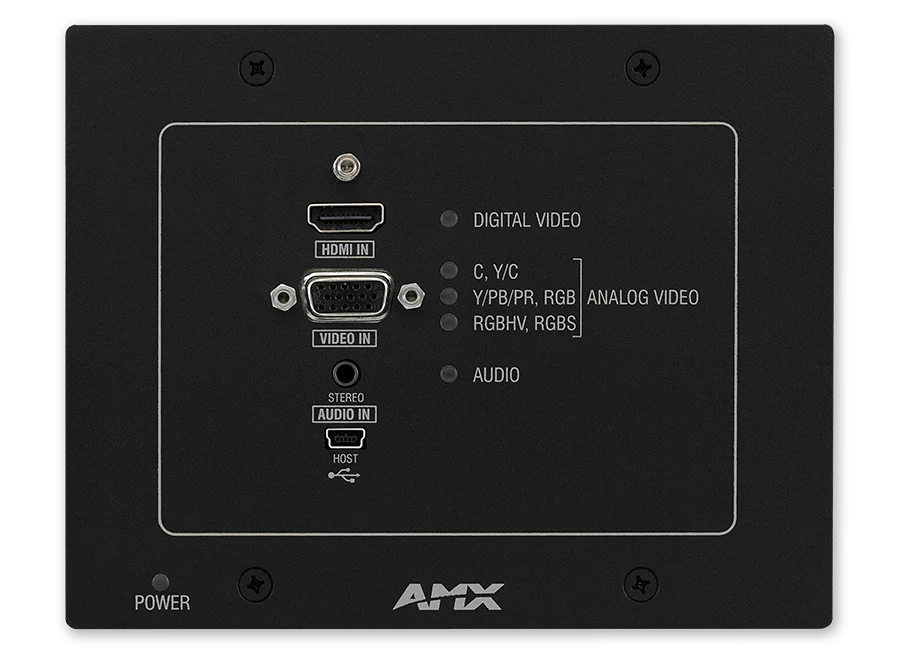

Front Connectors HDMI Input: HDMI Type A Female; Analog Video Input: HD-15; Analog Stereo Input: 3.5mm Mini-Stereo Jack; Advanced Configuration Interface: USB Mini-B Connector; USB (HID): USB Mini-B Connector
Back Connectors DXLink Output: RJ-46
HDMI Compatible Formats: HDMI, HDCP, DVI; Data Rate (Max): 4.95 Gbps / 6.75 Gbps
HDMI Support Progressive Resolution Support: 480p up to 1920x1200 @ 60 Hz; Interlaced Resolution Support: 480i, 576i, 1080i; 3D Format Support: Yes
HDMI Audio Audio Resolution: 16 bit to 24 bit; Audio Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192kHz
HDCP & DDC/EDID HDCP: Supports AMX HDCP InstaGate Pro Technology When used with an AMX Digital Media Switcher the key support is up to 16 sinks per output, independent of source device; DDC/EDID Support: EDID in point-to-point mode is passed up from the sink device
Analog Video Compatible Formats RGBHV, RGBs, RGsB, YPbPr (HDTV), Y/c (S-Video), C (Composite)
Analog Video Resolution Support Progressive Resolution Support: 480p up to 1920x1200 @ 60 Hz; Interlaced Resolution Support: 480i, 576i, 1080i
Audio (Analog & Digital S/PDIF) S/PDIF Audio Format Support: Dolby Digital, DTS, 2 CH L-PCM, Dolby Digital and DTS support up to 48kHz, 5.1 channels; S/PDIF Resolution: 16 to 24 bit
FG Numbers

FG1010-320-BL (Black)

FG1010-320-WH (White)
