DXF-TX-SMD

DXLink™ Multi-Format Single Mode Fiber Transmitter, Duplex

Limited Availability
DXF-TX-SMD
Larger Images

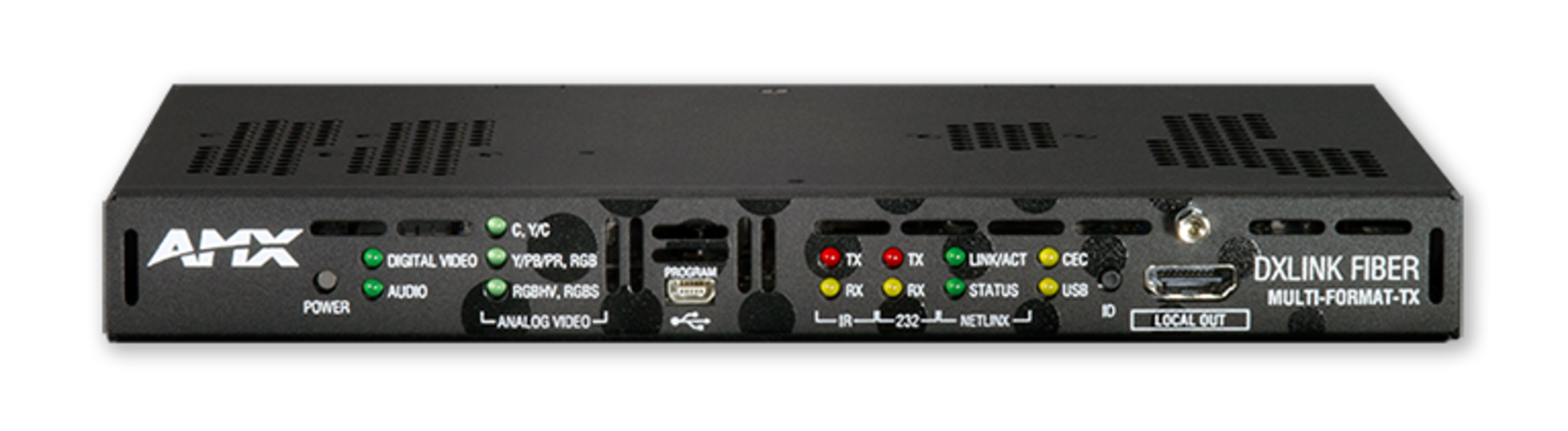

The DXLink Multi-Format Fiber Transmitter sends analog and digital audio and video signals including HDMI with HDCP up to 10 Km over single mode fiber. Use the DXLink Fiber Transmitter in conjunction with the Enova DGX 8, 16, 32 or 64 to transmit clear, uncompressed video beyond 6 miles at the fastest data rate in the industry – 10 Gbps. The DXF-TX-SMD also sends and receives control commands from the Enova DGX Digital Media Switcher with integrated NetLinx providing a total control and distribution solution to all end points.

Common Applications

The ideal entry-point for any source designed into an Enova DGX integrated system that requires the distance capabilities and inherent security of fiber – or both; including campus-wide distribution of sources that are shared between classrooms, secure military applications, casinos, arenas and museums. Directly connect video sources such as PCs using the HD-15 multi-format input connection or HDMI input and easily include audio on the same fiber cable by using the stereo or digital audio connection.

Downloads

  Version Language Size Uploaded
file type icon Data Sheet
updated: Mar 2024
    384 KB Mar 2024
Manuals
file type icon Support Guide – IO Board and Endpoint Compatibility
updated: Feb 2021
    46.4 KB Feb 2021
file type icon Hardware Reference Manual - DXLink Fiber Transmitters/Receivers
updated: Jan 2021
    3.9 MB Jan 2021
CAD Drawings
file type icon Pictorial Drawing - DXLink Multi-Format Fiber Transmitter, Duplex (DWG)
updated: Oct 2020
    1.3 MB Oct 2020
file type icon Pictorial Drawing - DXLink Multi-Format Fiber Transmitter, Duplex (PDF)
updated: Oct 2020
    231 KB Oct 2020
Bim Objects
file type icon DXF-TX-SMD - BIM Object
updated: Aug 2019
    Aug 2019
Firmware
platform icon DXLink Transmitter Firmware
version 1.6.29, updated: Sep 2018
1.6.29     488 KB Sep 2018
platform icon DXLink Fiber Transmitter Firmware (100 Series Compatible)
version 1.4.14, updated: Aug 2021
1.4.14     937 KB Aug 2021
Quick Start Guides
file type icon Quick Start Guide - DXLink Fiber Transmitters and Receivers
updated: Mar 2018
    665 KB Mar 2018
Certifications
file type icon Enova DXLink Fiber TX/RX UL Certificate of Compliance
updated: Apr 2018
    445 KB Apr 2018
file type icon Enova DXLink Fiber TX/RX CE Declaration of Conformity
updated: Apr 2018
    261 KB Apr 2018
file type icon Enova DXLink Fiber TX/RX IECEE CB Test Certificate
updated: Apr 2018
    152 KB Apr 2018
Whitepapers
file type icon Using SDI with the Enova DGX & DVX
updated: Oct 2020
    484 KB Oct 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • HDCP Compliance Over Fiber – Transmit HDCP compliant video including HDMI up to 10 Km (over 6 miles)
  • Industry Leading Data Rate – DXLink is leading the way with an optical transport rate of 10 Gbps
  • Secure and Isolated – Fiber inherently provides extra security and electrical isolation making it the transport method of choice for many mission-critical secure environments
  • InstaGate Pro® Technology – Easily integrate HDCP into system designs and enjoy hassle free matrix switching to all compliant displays, no tools, no delays and no key constraints – it just works
  • Native NetLinx® Control Everywhere – Control connected source devices using the built-in IR and RS-232 ports
  • Field Serviceable Fiber Modules – Easily remove and replace SFP modules in the field
  • Multi-Format Analog Port and HDMI Port – Supports legacy analog signals – RGBHV, Component, S-Video, and Composite, and digital HDMI/HDCP, DisplayPort and DVI signals
  • Ethernet Connectivity – Provides ICSLan Ethernet support at the Transmitter – add Ethernet connectivity to a Touch Panel, plug in a WAP or stream IP audio/video to a Ethernet enabled source device

Specifications

Dimensions (HWD) 1" x 8 3/4" x 5 1/5" (2.54 cm x 22.12 cm x 13.08 cm)
DxLink Fiber Fiber Connector: LC Duplex conforming to ANSI TIA/EIA 604-10 (FOCIS 10A); Fiber Cable Type: 9/125µm; Fiber Cable Length: 10 km (6.21 miles)
USB (HID) (1) USB Mini A/B Connector ("HOST")
Front Connectors Advanced Configuration Interface: (1) USB Mini-B Connector ("PROGRAM"); Local Loopback Output Connector: (1) HDMI Type A Female, non-scaling
Back Connectors Video Input: (1) HD-15 (RGBHV, RGBs, RGsB, Y/Pb/Pr, Y/c / S-Video, composite (breakout cable is required for RGB formats); HDMI Input: (1) HDMI Type A Female; Analog Stereo Input: (1) 3.5mm Mini-Stereo Jack; S/PDIF Digital Audio Input: (1) RCA Jack
HDMI Compatible Formats: HDMI, HDCP , DVI
HDMI Support Progressive Resolution Support: 480p up to 1920x1200 @ 60 Hz; Interlaced Resolution Support: 480i, 576i, 1080i; 3D Format Support: Yes
HDMI Audio Audio Format Support: Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM, Dolby Digital and DTS support up to 48kHz, 5.1 channels; Audio Resolution: 16 bit to 24 bit
HDCP & DDC/EDID HDCP Support: Supports AMX HDCP InstaGate Pro Technology; When used with an Enova DGX Digital Media Switcher the key support is up to 16 sinks per output, independent of source device; DDC/EDID Support: Yes
Analog Video Compatible Formats RGBHV, RGBs, RGsB, YPbPr (HDTV), Y/c (S-Video), C (Composite)
Analog Video Resolution Support Progressive Resolution Support: 480p up to 1920x1200 @ 60 Hz; Interlaced Resolution Support: 480i, 576i, 1080i
Audio (Analog & Digital S/PDIF) S/PDIF Audio Format Support: Dolby Digital, DTS, 2 CH L-PCM, Dolby Digital and DTS support up to 48kHz, 5.1 channels; S/PDIF Resolution: 16 to 24 bit
FG Numbers FG1010-360
