MET-7 (discontinued)

Metreau 7-Button AxLink Keypad

MET-7
Larger Images

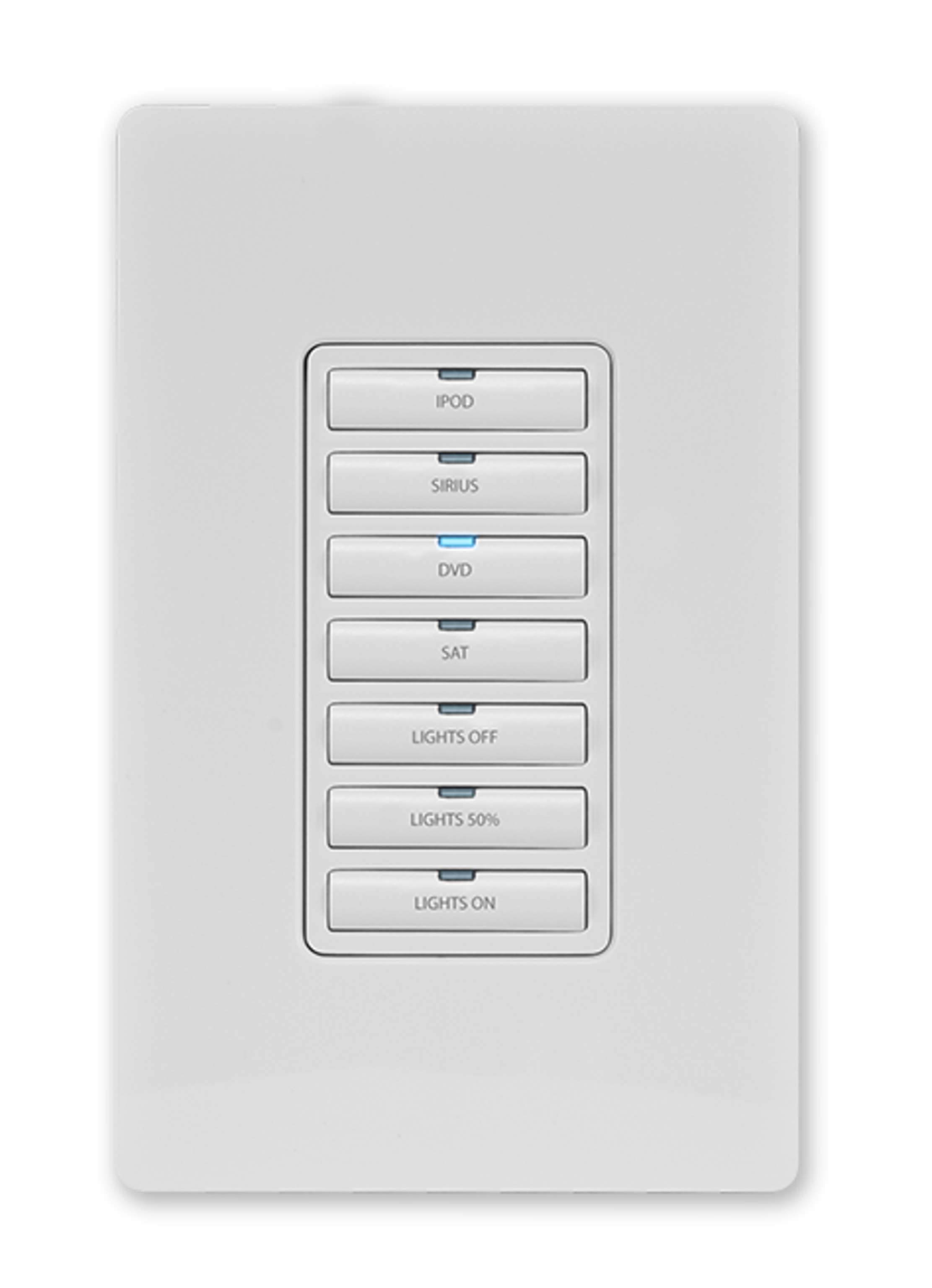

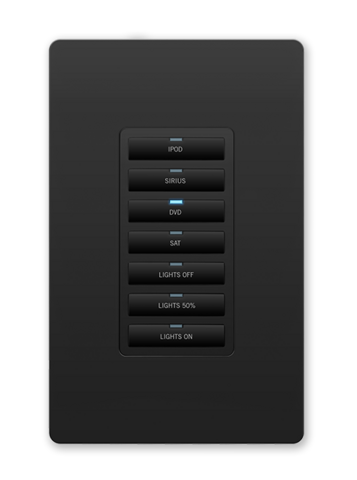

The Metreau 7-Button AxLink Keypad offers 7 double-width buttons that can be used as an individual keypad or in conjunction with the 6- and 13-button Metreau configurations.

Common Applications

Great keypad for control of a variety of devices in applications such as hospitals, residences, MDUs and other applications.

Recommended For

Downloads

  Version Language Size Uploaded
file type icon Data Sheet
updated: Mar 2024
    520 KB Mar 2024
Manuals
file type icon Instruction Manual - Metreau Keypads
updated: Mar 2018
    2.57 MB Mar 2018
CAD Drawings
file type icon Pictorial Drawing - MET-7 Metreau 7-Button Keypad (PDF)
updated: Oct 2020
    79 KB Oct 2020
file type icon Pictorial Drawing - MET-7 Metreau 7-Button Keypad (DXF)
updated: Oct 2020
    1.71 MB Oct 2020
Bim Objects
file type icon MET-7 - BIM Object
updated: Aug 2019
    Aug 2019
Safety Sheets
file type icon Safety Instructions - Metreau Keypads
updated: Mar 2018
    80.8 KB Mar 2018
Certifications
file type icon Metreau Keypads MET-6N/MET-7/MET-13 CE Declaration of Conformity
updated: Apr 2018
    255 KB Apr 2018
Information Documents
file type icon Metreau Series Keypad Button Ordering
updated: Oct 2020
    92.7 KB Oct 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Fits in decor-style wallplates
  • AxLink connectivity to NetLinx master
  • Standard buttons include TUNER, DVD, LIGHTS, FAN, BLINDS, DISPLAY, and +/-
  • Blue LEDs glow to indicate button selection
  • Conveniently matches NI-3101-SIG Controller
  • Bottom button can act as a single button or as two buttons



NOTE: Keypad wallplates not included. See ALD-CW-1, ALD-CW-2.

Specifications

Dimensions (HWD) Keypad and Mounting Plate: 4" x 1 3/4" x 1" (10.3 cm x 4.5 cm x 2.5 cm)
Mounting Mounts into standard decor-style wallplates
Front Panel Components 7 tactile pushbuttons with blue LED indicators
Rear Panel Components DIP switch, AxLink connector
Power 12 VDC, 30mA
FG Numbers

FG5794-03-WH (White)
FG5794-03-BL (Black)
FG5794-03-LA (Light Almond)
