RE-DM4 (discontinued)

Radia Eclipse 4-Dimmer Module

RE-DM4
Larger Images

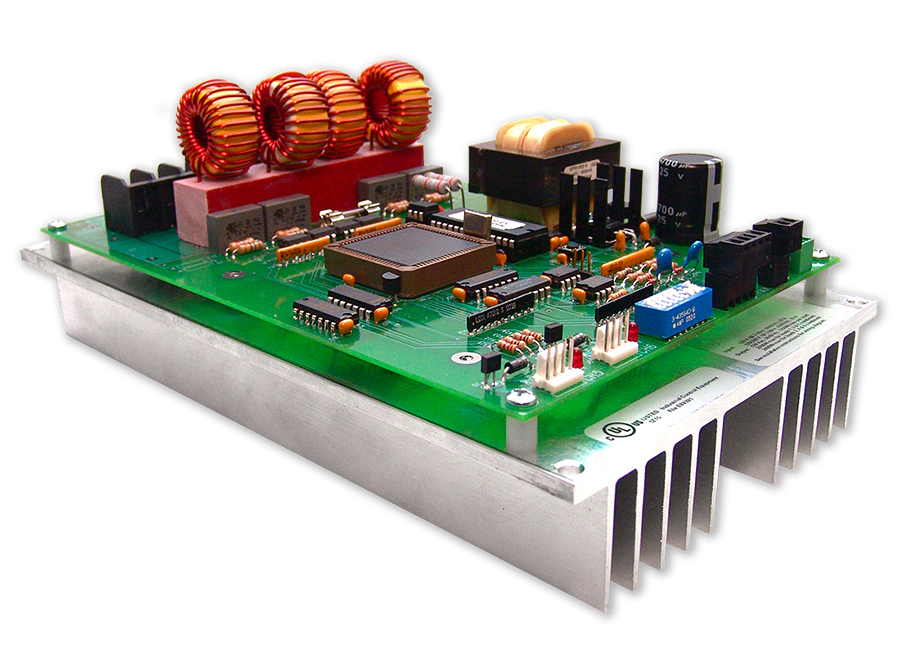

The RADIA Eclipse 4-Channel Integrated Dimmer Module (120 VAC: FG706-01; 240 VAC: FG706-02) controls up to six circuits with four 1200-watt onboard dimmers and two satellite connectors for RDM series dimmer or switch modules. The RE-DM4 is designed for use with the RDA series of enclosures in an AMX Lighting modular digital dimming system. The RE-DM4 is controlled by AxLink or by dry (contact) closures.

Common Applications

Ideal for supporting homes or businesses with up to 4 Radia traditional dimmers and 2 specialty dimmers - including fluorescent, energy management switches and low power DC switching.

Downloads

  Version Language Size Uploaded
CAD Drawings
file type icon Pictorial Drawing - RE-DM4, RE-DM6 Radia Eclipse Dimmer Modules (PDF)
updated: Oct 2020
    268 KB Oct 2020
file type icon Pictorial Drawing - RE-DM4, RE-DM6 Radia Eclipse Dimmer Modules (DXF)
updated: Oct 2020
    1.23 MB Oct 2020
file type icon Pictorial Drawing - RE-DM4, RE-DM6 Radia Eclipse Dimmer Modules (DWG)
updated: Oct 2020
    571 KB Oct 2020
Quick Reference Guides
file type icon Operation/Reference Guide - RE-DM4/DM6 Radia Eclipse Dimmer Modules
updated: Mar 2018
    3.08 MB Mar 2018
Quick Start Guides
file type icon Quick Start Guide - RE-DM4 Radia Eclipse 4 Dimmer Module
updated: Mar 2018
    264 KB Mar 2018
Device Modules
file type icon RE-DM4/DM6/DC Radia Eclipse Dimmer Device Module
updated: Oct 2020
    3 MB Oct 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Custom preset configuration files, which can be saved and reused in any installation - a huge time saver for programmers
  • Support for up to 768 dimmers/zones - more than an 8-fold increase over the previous generation
  • Greater processing power for quicker preset recall - an even better user experience
  • RoHS compliance - an environmentally-friendly product
  • Each traditional dimmer - supports up to 1200 watts
  • Supports up to 4 Radia traditional dimmers and 2 specialty dimmers - including fluorescent, energy management switches and low power DC switching

Specifications

FG Numbers

FG706-01 (120 VAC)
FG706-02 (240 VAC)
