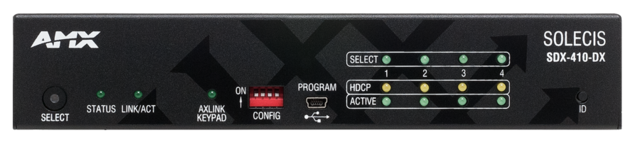

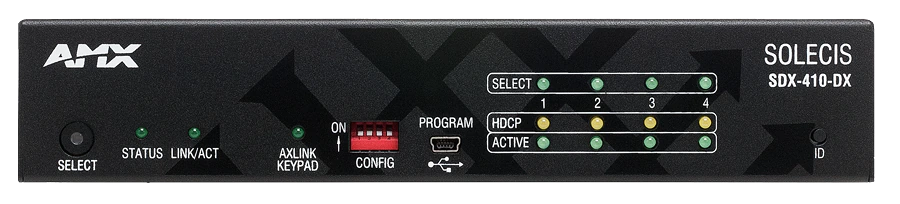

SDX-410-DX (discontinued)

Solecis® 4x1 HDMI Digital Switcher with DXLink™ Output

SDX-410-DX
Larger Images

The Solecis SDX is a family of small digital AV switchers. The 4x1 HDMI Solecis Digital Switcher provides four user connection points and includes simplified local control which routes the selected signal to both a DXLink and HDMI output. This provides a simple, low cost solution that combines a DXLink Transmitter and digital switcher into a single small form factor device that is commonly used at a table.

Common Applications

Solecis Digital Switchers are ideal for use in huddle spaces or small classrooms to provide simple switching for multiple sources. In larger rooms with multiple work spaces, a Solecis at each table or desk allows users to share content with the work group or the entire room. In even larger integrated environments Solecis digital switchers can provide easy to use source point switching and distance transmission over DXLink to an Enova DVX or DGX for hub-style building or campus-wide distribution.

Downloads

  Version Language Size Uploaded
file type icon Data Sheet
updated: Mar 2024
    389 KB Mar 2024
Manuals
file type icon Instruction Manual - Solecis Digital Switchers
updated: Mar 2018
    1.2 MB Mar 2018
Bim Objects
file type icon SDX-410-DX - BIM Object
updated: Aug 2019
    Aug 2019
Quick Start Guides
file type icon Quick Start Guide - SDX-410-DX Digital Switcher
updated: Mar 2018
    131 KB Mar 2018
Safety Sheets
file type icon Safety Instructions - Solecis Digital Switchers
updated: Mar 2018
    83.9 KB Mar 2018
Whitepapers
file type icon AMX AV/IT Administrator's Guide
updated: Oct 2020
    2.61 MB Oct 2020
file type icon Cabling for Success with DXLink
updated: Oct 2020
    1.6 MB Oct 2020
file type icon Using SDI with the Enova DGX & DVX
updated: Oct 2020
    484 KB Oct 2020
A&E (Architectural & Engineering) Specifications
file type icon A&E Spec - SDX-410-DX 4x1 HDMI Digital Switcher with DXLink Output
updated: Jun 2018
    67.5 KB Jun 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Multiple Video, Audio and Ethernet Connections – All the connections you need at the conference table including audio, video, control and network access
  • Switch Inputs Without the Need for a Central Controller – Provides low cost solution for huddle spaces and classrooms
  • Works with HydraPort Single Button or Keypad Modules – Provides an elegant installation in a table or lectern
  • Built-in Support for AxLink Keypads – Forwards keypad commands to a central controller over Ethernet eliminating the need for a separate AxLink cable run

Specifications

Audio Video Switching 4x1 (dual) audio/video switching, any of 4 inputs can be routed to the HDMI and DXLink output simultaneously
Video Inputs (4) HDMI; supports HDMI/HDCP
Video Outputs (1) HDMI; supports HDMI/HDCP, (1) DXLink; supports digital video, audio, Ethernet, and bi-directional control
Audio Format Support Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM; Dolby Digital and DTS support up to 48kHz, 5.1 channels
Audio Inputs (4) HDMI connections support digital audio
AxLink Keypad Port (1), 4-pin 3.5 mm captive-wire connector, provides data and power to up to 2 external AxLink Keypads
Ethernet Connections (2) RJ-45, 10/100 Port provides TCP/IP communication; an Auto MDI/MDI-X enabled port which allows use of either straight-through or crossover Ethernet cables. The Ethernet Port LEDs show communication activity, connection status, speeds and mode info
Dimensions 1 11/16" x 8 13/16" x 6 7/8" (42.16 mm x 221.64 mm x 175.92 mm)
Compatible AMX Enova DVX/DGX and DXLink Products Enova DGX 800/1600/3200/6400, Enova DGX 8/16/32/64 Digital Media Switchers, Enova DVX-3255HD, DVX-3155HD, DVX-3256HD, DVX-3156HD, DVX-2255HD and 2155HD All-In-One Presentation Switchers, DXLink HDMI Twisted Pair RX
MyTurn Source Selection Use in conjunction with MyTurn Source Selector Buttons installed onto HDMI/VGA cables at a source device and a MyTurn Source Selector Receiver that triggers switching. A HydraPort 2-Button Keypad Module can trigger a switch for multiple connections.
FG Numbers FG1010-304
