SDX-810-DX

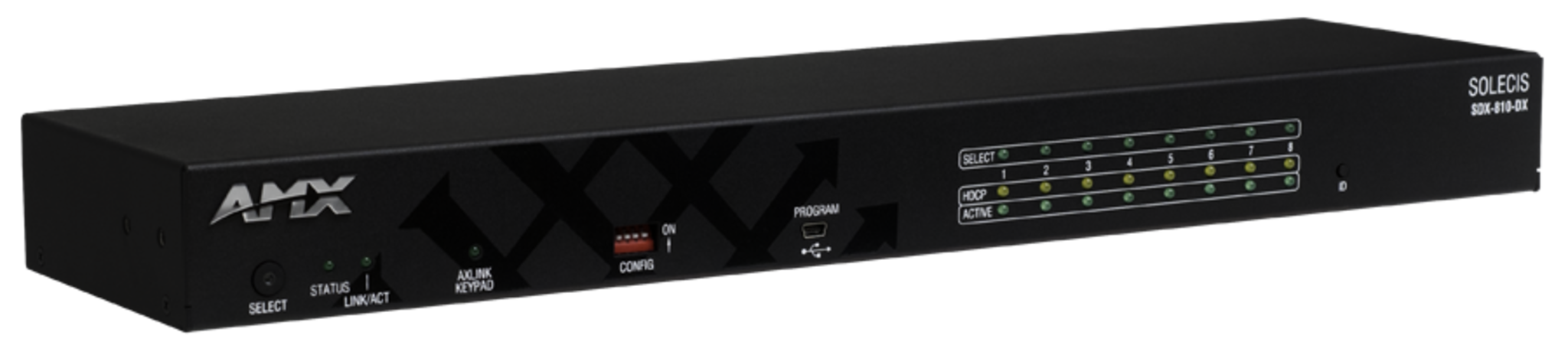

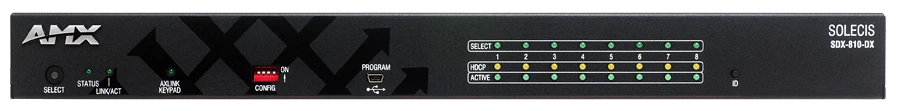

Solecis® 8x1 HDMI Digital Switcher with DXLink™ Output

Sdx 810 dx front vert medium
Larger Images

The Solecis SDX is a family of small digital AV switchers. The 8x1 HDMI Solecis Digital Switcher provides eight user connection points and includes simplified local control which routes the selected signal to both a DXLink and HDMI output. This provides a simple, low cost solution that combines a DXLink Transmitter and digital switcher into a single small form factor device that is commonly used at a table.

Common Applications

Solecis Digital Switchers are ideal for use in huddle spaces or small classrooms to provide simple switching for multiple sources. In larger rooms with multiple work spaces, a Solecis at each table or desk allows users to share content with the work group or the entire room. In even larger integrated environments Solecis digital switchers can provide easy to use source point switching and distance transmission over DXLink to an Enova DVX or DGX for hub-style building or campus-wide distribution.

Features

  • Multiple Video, Audio and Ethernet Connections – All the connections you need at the conference table including audio, video, control and network access
  • Switch Inputs Without the Need for a Central Controller – Provides low cost solution for huddle spaces and classrooms
  • Works with HydraPort Single Button or Keypad Modules – Provides an elegant installation in a table or lectern
  • Built-in Support for AxLink Keypads – Forwards keypad commands to a central controller over Ethernet eliminating the need for a separate AxLink cable run

Documentation

Specifications

Audio Video Switching 8x1 (dual) audio/video switching, any of 8 inputs can be routed to the HDMI and DXLink output simultaneously
Video Inputs (8) HDMI; supports HDMI/HDCP
Video Outputs (1) HDMI; supports HDMI/HDCP, (1) DXLink; supports digital video, audio, Ethernet, and bi-directional control
Audio Format Support Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM; Dolby Digital and DTS support up to 48kHz, 5.1 channels
Audio Inputs (4) HDMI connections support digital audio
AxLink Keypad Port (1), 4-pin 3.5 mm captive-wire connector, provides data and power to up to 2 external AxLink Keypads
Ethernet Connections (2) RJ-45, 10/100 Port provides TCP/IP communication; an Auto MDI/MDI-X enabled port which allows use of either straight-through or crossover Ethernet cables. The Ethernet Port LEDs show communication activity, connection status, speeds and mode info
Dimensions 1 11/16" x 17" x 4 7/16"
Compatible AMX Enova DVX/DGX and DXLink Products Enova DGX 800/1600/3200/6400, Enova DGX 8/16/32/64 Digital Media Switchers, Enova DVX-3255HD, DVX-3155HD, DVX-3256HD, DVX-3156HD, DVX-2255HD and 2155HD All-In-One Presentation Switchers, DXLink HDMI Twisted Pair RX
MyTurn Source Selection Use in conjunction with MyTurn Source Selector Buttons installed onto HDMI/VGA cables at a source device and a MyTurn Source Selector Receiver that triggers switching. A HydraPort 2-Button Keypad Module can trigger a switch for multiple connections.
