DGX-O-DXL-4K (discontinued)

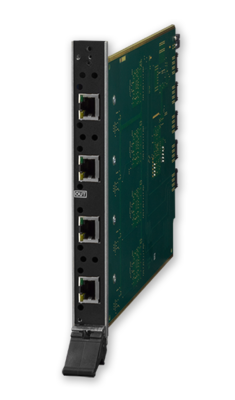

Enova® DGX DXLink™ Twisted Pair 4K Output Board

DGX-O-DXL-4K
Larger Images

The DGX-O-DXL-4K is a 4K and Ultra High Definition (UHD) capable and HDCP compliant twisted pair cable output board for the Enova DGX 800, Enova DGX 1600, Enova DGX 3200, and Enova DGX 6400 Digital Media Enclosures. It has four connections per board designed to transmit audio and video to DXLink Twisted Pair Receivers while passing bi-directional control and Ethernet signals over one shielded Cat6A or Cat7 standard twisted pair cable up to 70 m. DXLink Power is available from the DXLink Output Board to power DXLink Twisted Pair Receivers.

Common Applications

The Enova DGX DXLink Twisted Pair Output Board is ideal for applications where destination devices are located up to 70 meters away from the Enova DGX Digital Media Switcher and need to be distributed throughout a commercial or residential environment.

Downloads

  Version Language Size Uploaded
file type icon Data Sheet
updated: Mar 2024
    323 KB Mar 2024
Manuals
file type icon Support Guide - Enova DGX Board Replacement
version P, updated: Mar 2021
  868 KB Mar 2021
file type icon Support Guide – IO Board and Endpoint Compatibility
updated: Feb 2021
    46.4 KB Feb 2021
Certifications
file type icon Enova DGX 100 Series Enclosure UL Certificate of Compliance
updated: Feb 2021
    176 KB Feb 2021
file type icon Enova DGX 100 Series CB Test Certificate 62368
updated: Feb 2021
    143 KB Feb 2021
file type icon Enova DGX 100 Series CB Test Certificate 60950
updated: Feb 2021
    201 KB Feb 2021
file type icon Enova DGX 100 Series CE Declaration of Conformity
updated: Feb 2021
    276 KB Feb 2021
Comparison Charts
file type icon Comparison Chart - DGX Video Boards
updated: Dec 2020
    159 KB Dec 2020
Product Guides
file type icon DXLink Compatibility Tool
updated: Apr 2021
    Apr 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • 4K and Ultra High Definition (UHD) Support – Experience high-quality video resolution for 4K devices
  • Only One Cable – Send audio and video while passing control, Ethernet and power over one twisted pair cable
  • Send HDMI signals up to 70 meters – Extend the reach of the HDMI with HDCP signals far beyond the capabilities of typical HDMI cabling
  • Standard Twisted Pair Cable – Save time and effort in installation by leveraging pre-existing cost effective twisted pair cable, see the Cabling for Success with DXLink white paper for more details
  • Hot Swappable – Easily add or replace I/O boards at any time after deployment - the system automatically recognizes the new configuration and activates the boards
  • HDCP Compliant

Specifications

FG Numbers FG1061-580
