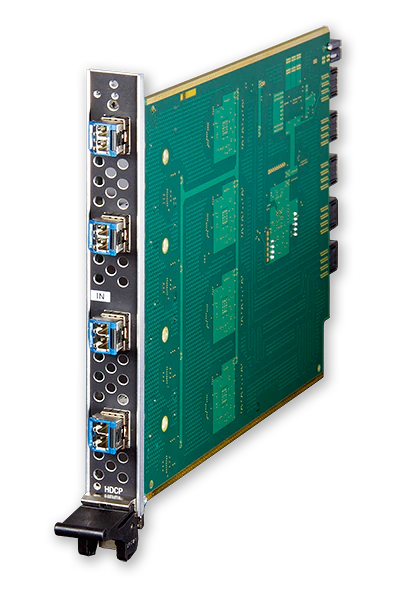

The DGX-I-DXF-SMD is a DXLink Fiber input board with field serviceable SFP modules designed for use with single mode fiber, and is compatible with the Enova DGX 8, 16, 32 and 64 Digital Media Switcher Enclosures. Use it as part of an integrated system to receive audio, video, control and Ethernet over single mode fiber from up to 10 Km from a DXLink Transmitter. Fiber uses light to send data, rather than electric signals making it both the highest quality and most secure way to transmit video as it is not susceptible to electronic noise or non-intrusive physical wiretapping.
Replacement Products
-
DGX-I-DXFP-4K60
Enova® DGX DXLink™ 4K60 Fiber Input Board
Common Applications
The Enova DGX DXLink Input Board is ideal for applications where the demands of high-resolution video clarity, long distance transmission and maximum security need to be met without compromise including campus-wide distribution of sources that are shared between classrooms, secure military applications, casinos, arenas and museums.
Configuration Tool
Downloads
Size | ||||
updated: Sep 2023
|
328 KB | |||
Manuals | ||||
updated: Mar 2018
|
16.4 MB | |||
version P,
updated: Mar 2021
|
868 KB | |||
updated: Feb 2021
|
46.4 KB | |||
Certifications | ||||
updated: Feb 2021
|
276 KB | |||
updated: Feb 2021
|
201 KB | |||
updated: Feb 2021
|
143 KB | |||
updated: Feb 2021
|
176 KB | |||
Whitepapers | ||||
updated: Oct 2020
|
484 KB | |||
Quick Start Guides | ||||
updated: Mar 2018
|
419 KB | |||
Comparison Charts | ||||
updated: Dec 2020
|
159 KB | |||
Configuration Tools | ||||
updated: Mar 2021
|
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Features
- HDCP Compliance Over Fiber – Transmit HDCP compliant video including HDMI up to 10 km
- Industry Leading Data Rate – DXLink is leading the way with an optical transport rate of 10 Gbps
- Secure and Isolated – Fiber inherently provides extra security and electrical isolation making it the transport method of choice for many mission-critical secure environments
- Field Serviceable Fiber Modules – Easily remove and replace SFP modules in the field
Specifications
FG Numbers | FG1058-620 |
NOTE: The most current and complete specifications for this product are found in the data sheet. Specifications are subject to change.
