MXD-1000 (discontinued)

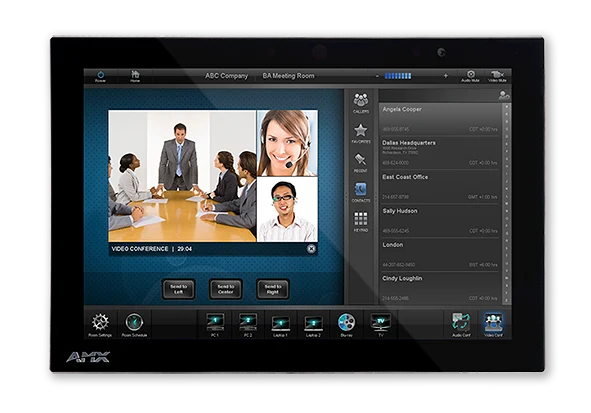

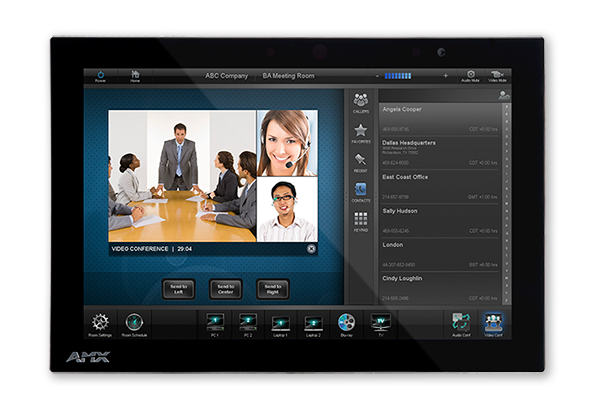

10.1" Modero X® Series G4 Wall Mount Touch Panel

Larger Images

The MXD-1000 / 10.1" Modero X® Series Wall Mount Touch Panel is a premium user interface designed for dedicated room control or scheduling. This elegantly-styled touch panel provides fast and smooth animations and transitions, along with elegant styling that looks great in any setting.

The Modero X Series Touch Panels provide several industry firsts including a beautiful, capacitive multi-touch screen that provides users access to multiple applications with minimal navigation. The distinctive appearance will complement even the most sophisticated meeting facilities and homes, with a variety of mounting options for added security and convenience.

Common Applications

  • The MXD-1000 is ideal for boardrooms, conference rooms or auditoriums where a panoramic control surface is needed to provide access to multiple functions simultaneously while remaining elegantly unobtrusive.
  • In Higher Education, the MXD-1000 is ideal for lecture halls, auditoriums, performing arts theaters and boardrooms that require extensive control capabilities.
  • In residences, it is perfect for kitchens, bedrooms or home offices where it can be used to manage systems throughout the home.
  • The MXD-1000 can be used as a scheduling panel for high-end meeting rooms and auditoriums.
  • All Modero X Series Wall Mount panels are ideal for reception areas or other gathering places for displaying master calendars and other information.

Downloads

  Version Language Size Uploaded
Data Sheet
updated: Jul 09, 2018
    437 KB Jul 09, 2018
Comparison Chart
updated: Jul 09, 2018
    173 KB Jul 09, 2018
Manuals
Installation Hardware Reference Manual - Modero X Series G4 Touch Panels
updated: Mar 30, 2018
    4.57 MB Mar 30, 2018
CAD Drawings
Pictorial Drawing - MXD-1000-P, 10.1" Modero X Series Portrait Wall Mount Touch Panel (PDF)
updated: Apr 02, 2018
    207 KB Apr 02, 2018
Pictorial Drawing - MXD-1000-P, 10.1" Modero X Series Portrait Wall Mount Touch Panel (DXF)
updated: Apr 02, 2018
    5.99 MB Apr 02, 2018
Pictorial Drawing - MXD-1000-P, 10.1" Modero X Series Portrait Wall Mount Touch Panel (DWG)
updated: Apr 02, 2018
    1.63 MB Apr 02, 2018
Pictorial Drawing - MXD-1000-L, 10.1" Modero X Series Landscape Wall Mount Touch Panel (PDF)
updated: Apr 02, 2018
    206 KB Apr 02, 2018
Pictorial Drawing - MXD-1000-L, 10.1" Modero X Series Landscape Wall Mount Touch Panel (DXF)
updated: Apr 02, 2018
    17.7 MB Apr 02, 2018
Pictorial Drawing - MXD-1000-L, 10.1" Modero X Series Landscape Wall Mount Touch Panel (DWG)
updated: Apr 02, 2018
    4.76 MB Apr 02, 2018
Bim Objects
MXD-1000 - BIM Object
updated: Aug 12, 2019
    Aug 12, 2019
Software
G4 Support Files
version 3.3.62, updated: Jul 16, 2018
3.3.62    35.7 MB Jul 16, 2018
TPDesign4
version 3.3.674, updated: Mar 14, 2018
3.3.674    68.9 MB Mar 14, 2018
Modero X Series G4 Touch Panels Firmware
version 2.104.134, updated: Mar 16, 2018
2.104.134    47.2 MB Mar 16, 2018
Quick Start Guides
Quick Start Guide - MXD-1000 Modero X Series Wall/Flush Mount Touch Panel
updated: Mar 29, 2018
    363 KB Mar 29, 2018
Application Guides
AMX and the Perfect Meeting Room
updated: Apr 12, 2018
    426 KB Apr 12, 2018
Whitepapers
AMX AV/IT Administrator's Guide
updated: Apr 25, 2018
    2.61 MB Apr 25, 2018
Digital Media Capabilities of the Modero X Series Touch Panels
updated: Apr 25, 2018
    1.22 MB Apr 25, 2018
Certifications
Modero X Series 7"/10.1" Touch Panels IECEE CB Test Certificate
updated: Apr 26, 2018
    155 KB Apr 26, 2018
Modero X Series 10.1" Touch Panel CE Declaration of Conformity
updated: Apr 26, 2018
    255 KB Apr 26, 2018
Modero X Series 7"/10.1" Touch Panels UL Certificate of Compliance
updated: Apr 26, 2018
    245 KB Apr 26, 2018
Programming Guides
Configuration and Programming Guide - Modero S/X Series G4 Touch Panels HydraPort Touch Connection Ports
updated: Mar 30, 2018
    2.16 MB Mar 30, 2018
Safety Sheets
Safety Instructions - Modero X Series G4 Touch Panels
updated: Mar 30, 2018
    103 KB Mar 30, 2018
Device Modules
Panel-to-Panel Video Chat Module
updated: Apr 12, 2018
    7.46 MB Apr 12, 2018
Modero X Residential Demo
updated: Apr 12, 2018
    52.8 MB Apr 12, 2018
Near Field Communications (NFC) Module
updated: Apr 12, 2018
    4.81 MB Apr 12, 2018
MET-ECOM/D Metreau Entry Communicator Device Module
updated: Apr 12, 2018
    2.72 MB Apr 12, 2018
AMX Communications Application
updated: Apr 12, 2018
    16.9 MB Apr 12, 2018
Touch Panel Files
MXT/D-1000 Landscape Demo Touch Panel File (1280x800)
updated: Jul 18, 2018
    12.2 MB Jul 18, 2018
MXD-1000 Portrait Demo Touch Panel File (800x1920)
updated: Jul 18, 2018
    3.93 MB Jul 18, 2018
MXT/D-1000 Page Transitions Demo Touch Panel File (1280x800)
updated: Jul 18, 2018
    1.97 MB Jul 18, 2018
MXD-1000 RMS Scheduling Touch Panel File (800x1280)
updated: Jul 18, 2018
    2.64 MB Jul 18, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features



  • Graphic Leaps & Bounds – The Modero X Series includes intuitive UI functionality including: gesturing, swiping, dynamic reordering and enhanced animation capabilities
  • Perfect From Any Angle – Includes In-Plane Switching (IPS), which delivers the widest viewing angles and the most accurate color reproduction on the market
  • Enhanced Usability – External phone connections via Bluetooth or USB and HD video streaming
  • Generous Mounting Options – In addition to wall mount, you can mount the 10.1" Modero X Series Landscape Wall/Flush Mount Touch Panel directly to an equipment rack using the optional MXA-RMK-10 Modero X Series Rack Mount Kit (FG5969-62)

*Product Update Notice: Near Field Communication™ (NFC) and High Frequency RFID (HF RFID) will no longer be included product features for all AMX Modero X® Series Touch Panels, shipping on or after October 1, 2017.

Specifications

Display Size (WH) Landscape: 9.9" x 6.7" (252 mm x 170 mm), 12.0" (304 mm) diagonal, Portrait: 6.7" x 9.9" (170 mm x 252 mm), 12.0" (304 mm) diagonal
Viewable Area (WH) Landscape: 8.5" x 5.3" (217mm x 136mm), 10.1" (257mm) diagonal, Portrait: 5.3" x 8.5" (136 mm x 217 mm), 10.1" (257mm) diagonal
Resolution Landscape: 1280x800, Portrait: 800x1280
Viewing Angle Vertical: ± 89°, Horizontal: ± 89°
Aspect Ratio Landscape: 16:9, Portrait: 9:16
Touch Overlay Projected capacitive, multi-touch support, 3 simultaneous max
Graphics Engine AMX G4
Front Panel Components Light Sensor, Proximity Detector, Camera, LED Indicators, Sleep button. See Data Sheet for details.
Power Consumption Full-On: 8 W
Temperature Range Operating: 32° F to 104° F (0° C to 40° C)
FG Numbers

FG5968-07 (Portrait)
FG5968-13 (Landscape)
