AMX MXD-700-NC

Larger Images

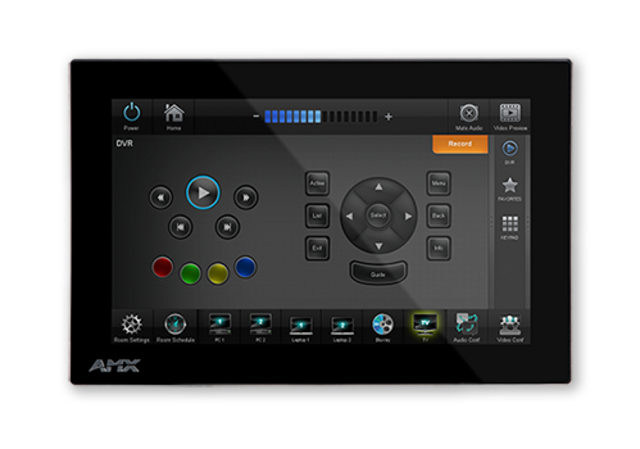

The MXD-700-NC / 7" Modero X^® Series Wall Mount Touch Panel (No Camera, No Microphone) is specifically designed to exclude the camera and microphone functions of the original Modero X Series panel to meet the security requirements of facilities that do not allow these capabilities.

The Modero X Series Touch Panels provide several industry firsts including a beautiful, capacitive multi-touch screen that provides users access to multiple applications with minimal navigation. The distinctive, low-profile design is engineered to sit perfectly on a table without obstructing views, and comes with a variety of mounting options for added security and convenience.

Common Applications

The MXD-700-L-NC MXD-700 is ideal for federal, state, and local government or military facilities with strict security restrictions due to the storage, use, discussion or electronic processing of sensitive or classified information. It features modifications to support the added security measures necessary in secure environments such as sensitive compartmented information facilities, emergency operations centers or command headquarters. These modified panels give users robust functionality and capabilities while adhering to essential operational security guidelines.

Downloads

CAD Drawings

	Size	Uploaded
Pictorial Drawing - MXD-700-L, 7" Modero X Series Landscape Wall Mount Touch Panel (DWG) updated: Oct 2020	1.15 MB	Oct 2020
Pictorial Drawing - MXD-700-L, 7" Modero X Series Landscape Wall Mount Touch Panel (DXF) updated: Oct 2020	4.22 MB	Oct 2020
Pictorial Drawing - MXD-700-L, 7" Modero X Series Landscape Wall Mount Touch Panel (PDF) updated: Oct 2020	197 KB	Oct 2020
Pictorial Drawing - MXD-700-P, 7" Modero X Series Portrait Wall Mount Touch Panel (DWG) updated: Oct 2020	1.23 MB	Oct 2020

Software

	Version	Size	Uploaded
G4 Support Files version 3.3.62, released: Jul 2018	3.3.62	35.7 MB	Jul 2018
TPDesign4 version 3.3.674, released: Dec 2019	3.3.674	68.9 MB	Dec 2019

Firmware

	Version	Size	Uploaded
Modero X Series G4 Touch Panels Firmware version 2.104.134, released: Mar 2018	2.104.134	47.2 MB	Mar 2018

Quick Start Guides

	Size	Uploaded
Quick Start Guide - MXD-700 Modero X Series Tabletop Touch Panel updated: Oct 2020	261 KB	Oct 2020

Certifications

	Size	Uploaded
Modero X Series 7"/10.1" Touch Panels UL Certificate of Compliance updated: Apr 2018	245 KB	Apr 2018
Modero X Series 7"/10.1" Touch Panels IECEE CB Test Certificate updated: Apr 2018	155 KB	Apr 2018

Whitepapers

	Size	Uploaded
Digital Media Capabilities of the Modero X Series Touch Panels updated: Apr 2018	1.22 MB	Apr 2018

Safety Sheets

	Size	Uploaded
Safety Instructions - Modero X Series G4 Touch Panels updated: Oct 2020	103 KB	Oct 2020

Device Modules

	Size	Uploaded
AMX Communications Application updated: Oct 2020	16.9 MB	Oct 2020
MET-ECOM/D Metreau Entry Communicator Device Module updated: Oct 2020	2.72 MB	Oct 2020

Touch Panel Files

	Size	Uploaded
MXT/D-700 Page Transitions Demo Touch Panel File (1024x600) updated: Jul 2018	1.37 MB	Jul 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

Graphic Leaps & Bounds – The Modero X Series features intuitive UI functionality including: gesturing, swiping, dynamic reordering and enhanced animation capabilities
Perfect From Any Angle – Includes In-Plane Switching (IPS), the latest technology in popular tablet/mobile devices that delivers the widest viewing angles and the most accurate color reproduction on the market
Available Rack Mounting Kit – As an option, you can mount the 7" Modero X Series Wall/Flush Mount Touch Panel directly to an equipment rack using the MXA-RMK-07 Modero X Series Rack Mount Kit (FG5969-63). The Kit includes a rack mount frame, screws and washers

*Product Update Notice: Near Field Communication™ (NFC) and High Frequency RFID (HF RFID) will no longer be included product features for all AMX Modero X® Series Touch Panels, shipping on or after October 1, 2017.

Specifications

Display Size (WH)	7.3" x 4.8" (186 mm x 122 mm), 8.8" (222 mm) diagonal
Viewable Area (WH)	6.05" x 3.54" (154 mm x 90 mm), 7.0" (178 mm) diagonal
Resolution	1024x600
Viewing Angle	Vertical: ± 89°, Horizontal: ± 89°
Aspect Ratio	16:9
Touch Overlay	Projected capacitive, multi-touch support, 3 simultaneous max
Graphics Engine	AMX G4
Front Panel Components	Light Sensor, Proximity Detector, Sleep button. See Data Sheet for details.
Power Consumption	Full-On: 8 W
Temperature Range	Operating: 32° F to 104° F (0° C to 40° C)
FG Numbers	FG5968-28 (Portrait) FG5968-29 (Landscape)
