EXB-REL8
Ngừng sản xuất

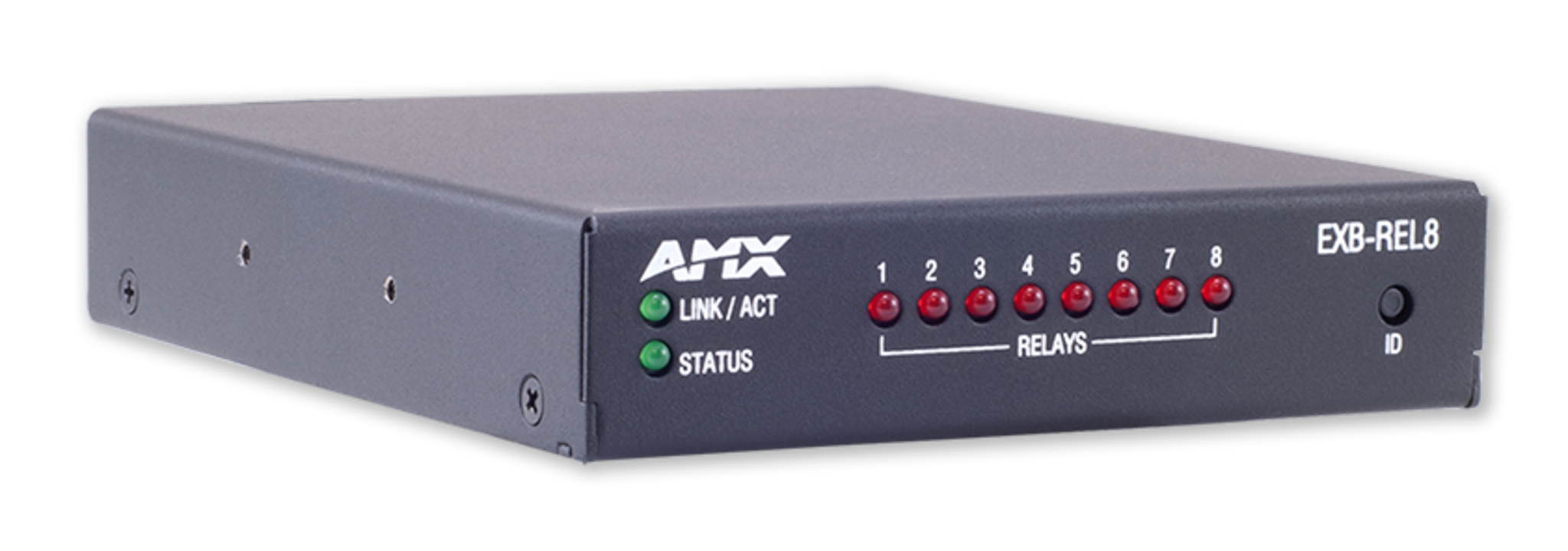

Bộ giao diện rơle ICSLan, 8 kênh

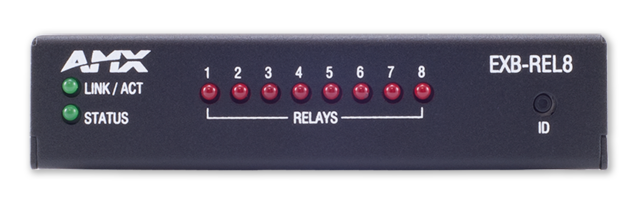

EXB-REL8_Front
Hình ảnh lớn hơn

Sản phẩm thay thế

  • CE-REL8

    CE-REL8

    Bộ Mở Rộng Điều Khiển Phổ Quát với 8 Relays

ICSLan Device Control Boxes allow users to manage devices remotely from a Controller over an Ethernet network. This provides a beautifully simple method for a centralized control environment allowing users to share a controller among multiple smaller rooms versus controllers in every room. Ethernet has become the industry standard for connecting devices and the ICSLan Device Control Boxes make it easy to introduce control to equipment such as projectors located extended distances from a Controller. Additionally, the number of ports on an AMX Controller can be expanded when all ports are fully populated. Because they employ Native NetLinx technology, it is extremely simple to add an EXB to an AMX installation.

Thêm Chi tiết

Conference rooms, classroom or auditoriums where a single controller is used to manage multiple devices such as projectors spread throughout a facility or to add additional ports to an AMX Central Controller.

Tải xuống

Tài liệu
  Kích thước Đã tải lên
file type icon Data Sheet
cập nhật: Thg 4 2026
300 KB Thg 4 2026
file type icon EXB-REL8 Hướng dẫn bắt đầu nhanh
cập nhật: Thg 4 2026
100 KB Thg 4 2026
Manuals
  Kích thước Đã tải lên
900 KB Thg 10 2020
CAD Drawings
  Kích thước Đã tải lên
100 KB Thg 4 2018
50 MB Thg 4 2018
10 MB Thg 4 2018
BIM Objects
  Kích thước Đã tải lên
file type icon EXB-REL8 - BIM Object
cập nhật: Thg 8 2019
Thg 8 2019
Firmware
  Phiên bản Kích thước Đã tải lên
download icon for ICSLan Device Control Boxes Firmware ICSLan Device Control Boxes Firmware
phiên bản 1.0.49, phát hành: Thg 9 2018
1.0.49   200 KB Thg 9 2018
Quick Start Guides
  Kích thước Đã tải lên
100 KB Thg 10 2020
Certifications
  Kích thước Đã tải lên
300 KB Thg 4 2018
200 KB Thg 4 2018
A&E (Architectural & Engineering) Specifications
  Kích thước Đã tải lên
40 KB Thg 6 2018

Nếu bất kỳ liên kết nào ở trên hiển thị ký tự lạ trong trình duyệt của bạn, vui lòng nhấp chuột phải vào tệp để lưu vào máy tính của bạn.

Tính năng

  • Enable Ports over Ethernet – Provides a future proof solution to add ports anywhere
  • Easy to Program – Programming is identical to any other device ports on the Controller
  • Power over Ethernet – Eliminate the need for a power source at the install location
  • Small Form Factor – Compact design makes it easy to hide for a clean installation
  • NetLinx Studio Tools – Configuration tools make ICSLan Device Control Boxes easy to deploy

Thông số kỹ thuật

Dimensions (HWD) 1" x 4 3/8" x 5 1/8" (2.5 cm cm x 11.1 cm x 13.00 cm), RU: 1
Weight 1.02 lb (463 g)
Power Over Ethernet (PoE) No local Power Supply needed
Power Draw Typical power draw: 1.9 Watts, Max power draw: 3.4 Watts
Connectors (1) RJ-45 ICS-LAN Ethernet Connector, (2) 8-Pin 3.5mm captive-screw terminals
FG Numbers FG2100-20
