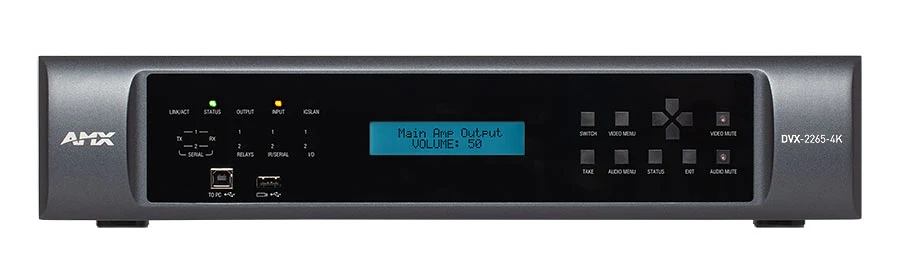

The AMX Enova® DVX-2265-4K 6x2+1 All-In-One Presentation Switcher is a unified audio, video, and control device that replaces the need for numerous individual components and eliminates the integration and reliability challenges that accompany them.

This compact 2U presentation switcher features class-leading video quality with support for 4K60 4:4:4 video, HDMI 2.0, HDCP 2.2, and HDR.

The DVX leverages HARMAN’s legendary audio technology. A 120-watt Crown DriveCore amplifier, audio processing by BSS, and the latest dbx feedback suppression work together to ensure that users enjoy the highest quality audio experience.

The DVX-2265-4K is a simple to install, flexible solution, perfectly suited for dramatically simplifying AV control and distribution in small to medium-sized conference rooms, boardrooms, and classrooms. Ease-of-use features include a mobile-friendly HTML5 web interface, automatic binding of DXLink endpoints on the isolated ICSLan network of the NX-Series Integrated Controller, and power on every DXLink input and output. Dante audio inputs and outputs complement analog audio inputs and outputs allowing the DVX to be used in a multitude of situations. The DVX’s DXLink inputs and outputs are compatible with other AMX devices, such as the Enova DGX, as well as standard HDBaseT devices allowing the DVX to be integrated into enterprise-wide designs simply and cleanly.

The integrated NX processor and its secure operating system provide extensive security features including an isolated network we call ICSLan, 802.1X support, LDAP integration with unlimited user-defined groups, syslog support, and support for encrypted IP communication using FIPS 140-2 validated cryptographic modules.

The Enova DVX's all-in-one architecture delivers the lowest Total Cost of Ownership in the industry, thanks to ease of support, maintenance and configuration, as well as reduced hardware and cabling costs.

PICTURE PERFECT

With support for 4K60 4:4:4, HDMI 2.0, HDCP 2.2, and HDR, Enova DVX 4K60 switchers allow end users to realize the full potential of their source and display devices.

ÂM THANH HARMAN HUYỀN THOẠI

Một bộ khuếch đại Crown DriveCore 120W, xử lý âm thanh bởi BSS, và công nghệ loại bỏ phản hồi dbx mới nhất hoạt động cùng nhau để đảm bảo người dùng tận hưởng trải nghiệm âm thanh chất lượng cao nhất.

SIMPLE TO CONFIGURE

AMX’s mobile-friendly HTML5 web-based configuration tool, built–in end-point power for all DXLink transmitters and receivers, internal ICSLan network, and auto-configured transmitters and receivers make Enova DVX 4K60 switchers the simplest to configure switchers on the market.

FLEXIBLITY FOR EVERY SPACE

Dante and AES67 support allow DVX 4K60 switchers the ability to support a huge range of audio configurations and the class-leading power of the Crown DriveCore amplifier can fill large meeting spaces with exceptional sound. DVX has the flexibility to excel on its own or when integrated into an enterprise-wide solution.

BẢO MẬT MISSION CRITICAL

Các tính năng bảo mật mission critical của Enova DVX bao gồm hỗ trợ mạng kép để cô lập thiết bị AMX hoặc của bên thứ ba, 802.1X, hỗ trợ LDAP, hỗ trợ Syslog và các thư viện mật mã được xác thực FIPS 140-2.
