DVX-2210HD
Số lượng có hạn

Bộ chuyển mạch trình chiếu All-In-One 4x2 với Điều khiển NX (Đa định dạng, Đầu vào HDMI)

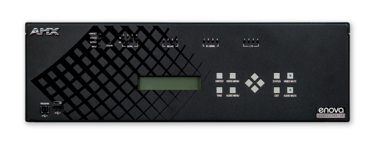

DVX-2210HD-SP_Front
Hình ảnh lớn hơn

Bộ chuyển mạch trình chiếu tất cả trong một Enova® DVX-2210HD 4x2 là một thiết bị âm thanh, video và điều khiển thống nhất giúp loại bỏ nhu cầu sử dụng nhiều thành phần riêng lẻ và giải quyết những thách thức về tích hợp và độ tin cậy đi kèm. Bộ chuyển mạch trình chiếu 3U nhỏ gọn tích hợp nhiều chức năng khác nhau, chẳng hạn như bộ co dãn, bộ chuyển đổi tín hiệu analog sang digital, bộ phát và bộ khuếch đại cặp xoắn cùng xử lý âm thanh chuyên nghiệp được tích hợp sẵn vào một chiếc hộp. Với các tính năng độc quyền của AMX, DVX-2210HD là một giải pháp đơn giản để cài đặt, linh hoạt, phù hợp hoàn hảo cho các phòng họp nhỏ hơn và các lớp học.

DVX-2210HD bao gồm công nghệ NetLinx Integrated Controller thế hệ tiếp theo, NX-Series. Bộ điều khiển mới này cung cấp một nền tảng có khả năng mở rộng cho tương lai bằng cách kết hợp hiệu suất cao, tính tương thích ngược và các tính năng bảo mật mạng mở rộng.

DVX-2210HD bao gồm một danh sách dài các tính năng để đảm bảo chất lượng âm thanh và video tối ưu từ hầu hết mọi nguồn. DSP âm thanh chuyên nghiệp tiên tiến cung cấp âm thanh chất lượng cao trong toàn bộ phòng. Các đầu vào video đa định dạng của 2210HD hỗ trợ tín hiệu analog và digital bao gồm HDMI với các nguồn HDCP - tất cả trong cùng một đầu nối. Công nghệ SmartScale® được tích hợp sẵn xuất ra video được co dãn hoàn hảo cho từng màn hình được kết nối, loại bỏ những thách thức tích hợp có thể xảy ra khi các nguồn và màn hình có độ phân giải tối ưu khác nhau - giúp 2210HD dễ chỉ định, dễ cài đặt và dễ sử dụng.

Kiến trúc tất cả trong một của Enova DVX cũng mang lại Tổng Chi phí Sở hữu thấp nhất trong ngành, nhờ vào sự hỗ trợ, bảo trì và cấu hình dễ dàng, cũng như giảm chi phí phần cứng và cáp.

Thêm Chi tiết

  • The DVX-2210HD is ideal for dramatically simplifying AV control and distribution in small conference rooms and classrooms - especially those on a tight budget.
  • The flexible DVX-2210HD is perfect for any small collaboration space with a mix of analog and digital sources.
  • The DVX-2210HD is perfect for any room or facility with space constraints, especially those that lack space in equipment racks.

Tải xuống

Tài liệu
  Kích thước Đã tải lên
file type icon Data Sheet
cập nhật: Thg 4 2026
400 KB Thg 4 2026
file type icon Comparison Chart
cập nhật: Thg 4 2026
2 MB Thg 4 2026
Manuals
  Kích thước Đã tải lên
3 MB Thg 10 2020
CAD Drawings
  Kích thước Đã tải lên
1 MB Thg 10 2020
800 KB Thg 10 2020
1 MB Thg 10 2020
2 MB Thg 10 2020
1 MB Thg 10 2020
3 MB Thg 10 2020
2 MB Thg 10 2020
1 MB Thg 10 2020
700 KB Thg 10 2020
2 MB Thg 10 2020
Firmware
  Phiên bản Kích thước Đã tải lên
download icon for DVX-325x/225x Switcher Firmware DVX-325x/225x Switcher Firmware
phiên bản 1.7.81, phát hành: Thg 7 2018
1.7.81   2 MB Thg 7 2018
download icon for NX Series (X200) DVX Controller Firmware (HTML5 Web Configuration) NX Series (X200) DVX Controller Firmware (HTML5 Web Configuration)
phiên bản 1.6.193, phát hành: Thg 7 2021
1.6.193
download icon for NX Series (X200) NX/DVX/DGX Device Firmware NX Series (X200) NX/DVX/DGX Device Firmware
phiên bản 1.1.50, phát hành: Thg 4 2024
1.1.50   50 KB Thg 4 2024
Certifications
  Kích thước Đã tải lên
100 KB Thg 4 2018
60 KB Thg 4 2018
80 KB Thg 4 2018
A&E (Architectural & Engineering) Specifications
  Kích thước Đã tải lên
100 KB Thg 6 2018
Information documents
  Kích thước Đã tải lên
file type icon Benefits And Applications of Websockets
cập nhật: Thg 10 2020
200 KB Thg 10 2020
Product Guides
  Kích thước Đã tải lên
file type icon DXLink Compatibility Tool
cập nhật: Thg 4 2021
Thg 4 2021
Programming Guides
  Phiên bản Kích thước Đã tải lên
file type icon Zoom Room Controls - JSON Configuration Example
phiên bản 0.1.1, cập nhật: Thg 10 2021
0.1.1  600 KB Thg 10 2021
  3 MB Thg 10 2020
Quick Start Guides
  Kích thước Đã tải lên
300 KB Thg 10 2020
Safety Sheets
  Kích thước Đã tải lên
90 KB Thg 10 2020
Quick Reference Guides
  Phiên bản Kích thước Đã tải lên
file type icon Language Reference Guide - NetLinx Programming Language
phiên bản B, cập nhật: Thg 10 2024
3 MB Thg 10 2024

Nếu bất kỳ liên kết nào ở trên hiển thị ký tự lạ trong trình duyệt của bạn, vui lòng nhấp chuột phải vào tệp để lưu vào máy tính của bạn.

Tính năng

  • All-In-One Device – Controller, matrix switcher, scaler, analog to digital converter, amplifier, plus twisted pair distribution and professional-grade audio DSP – all in a space-saving 3U chassis
  • Simplicity & Reliability – Replaces the need for numerous individual components and equipment, ensuring high reliability and saving on configuring and programming costs
  • Low Total Cost of Ownership – With a consistent platform across a variety of sizes, it is easy to standardize on the DVX and reduce costs for hardware, training, support, troubleshooting and sparing
  • Unrivaled Network Security – With Dual NIC to isolate AMX or third-party AV equipment from the primary network, IPv6 and wired 802.1X for protected network access, and user-defined LDAP login group support, the Enova DVX provides rock-solid security
  • Optimal Video Image Quality Every Time – Exclusive SmartScale Technology automatically scales the image to the best resolution and video parameters for each display—even for displays of different information—without manual setup, eliminating the need for costly external scalers
  • Crystal Clear Audio – Includes an integrated digital signal processor with advanced capabilities like independent 10-band parametric EQ, independent input gain adjustments and variable compression, allow precision tuning to match unique source and room attributes
  • Audio Breakaway – Stereo audio from any analog input or de-embedded from any HDMI input can be broken away from its associated video, processed through the DSP, and switched independently to any analog, HDMI or S/PDIF audio output
  • Audio Matrix Switching – Three independently switched and processed audio paths provide four unique volume, EQ, ducking and mixing configurations for perfectly tuned room audio as well as integration with audio/video conferencing, induction loop systems, voice re-enforcement speakers and audio recording devices
  • Enhanced Microphone Processing – Independent 3-band parametric EQ, compression, gating, auto-ducking, and limiting on each microphone input ensures crystal clear communication
  • Matrix Switching – Freely route any input to any or all outputs without blocking - 4x2 video switcher and 6x3 audio switcher with audio breakaway
  • AV and Control Over Twisted Pair – Send audio, video, bi-directional control and Ethernet up to 100m over one standard twisted pair cable
  • HDMI/HDCP Switching with Simplicity of Analog – End-to-end distribution of HDMI/HDCP without interruption or key constraints using exclusive InstaGate Pro® Technology
  • Multi-Format Ports – Built for analog signals - RGBHV, Component, S-Video, and Composite, and digital HDMI/HDCP and DVI signals - all on the same connector
  • Enhanced Diagnostics On Serial & IR Ports – Provides real time error feedback when Serial and IR ports are disconnected or improperly wired
  • 3D Support – Pass through latest video formats including 3D and Deep Color
  • DXLink™ Twisted Pair Outputs – Send audio, video, bi-directional control and Ethernet to DXLink HDMI Receivers up to 100m away over one twisted pair cable - for more details and helpful cabling information, reference the white paper titled Cabling for Success with DXLink, or contact your AMX representative
  • Saves Energy – Includes features that dramatically reduce energy utilization. Use the interactive DVX Energy Savings Calculator to estimate savings for your particular configuration
  • HTML5 Web Configuration – Eliminates the need for proprietary configuration software

Thông số kỹ thuật

Video Inputs (2) Multi-Format DVI-I, (2) HDMI. See Data Sheet for Details
Video Outputs (2) HDMI; supports HDMI/HDCP, (1) DXLink; mirrors associated HDMI outputs; supports digital video, audio, Ethernet, and bi-directional control
Video Resolution Support Supports resolutions up to 1920 x 1200 @ 60 Hz. See Operations Reference Guide for details for each signal type.
Audio Inputs (2) female 1/8" stereo mini-phono jacks, (2) 3.5 mm 5-position captive-wire terminals, (2) 3.5 mm 3-pin captive-wire MIC connectors, (2) HDMI connections, (2) DXLink connections. See Data Sheet for details
Audio Outputs - SP (1) Amplified audio output; 4-position captive wire connector, (2) Line level audio outputs, (1) S/PDIF output, (2) HDMI outputs, (1) DXLink output. See Data Sheet for details
Audio Outputs - T (1) Amplified audio output; 2-position captive wire connectors, (2) Line level audio outputs, (1) S/PDIF output, (2) HDMI outputs, (1) DXLink output. See Data Sheet for details
AxLink Port (1) 4-position 3.5mm Screw Terminal, provides data and power to external AxLink control devices
RS-232/422/485 Ports (1) 10-position 3.5mm Screw Terminal, NetLinx Port 1, XON/XOFF (transmit on / transmit off), CTS/RTS (clear to send/ready to send), 300 - 115,200 baud
RS-232 Port (3) 5-position 3.5mm Screw Terminal, NetLinx Ports 2-4, XON/XOFF (transmit on / transmit off), CTS/RTS (clear to send/ready to send), 300 - 115,200 baud
IR/Serial (4) 2-position 3.5mm Screw Terminal, 4 IR Transmit / 1-way Serial ports, NetLinx Ports 11-14. See Data Sheet for details
I/O Channels (4) 6-position 3.5mm Screw Terminal, 4-channel binary I/O port for contact closure with each input being capable of voltage sensing, NetLinx Port 22, Channels 1-4
Relays (4) Two 8-position 3.5 mm Screw Terminal, (8) single-pole, single-throw relays, NetLinx Port 21, Channels 1-4. See Data Sheet for details
Dimensions (HWD) 5 3/16" x 17" x 14" (13.2 cm x 43.2 cm x 35.6 cm)
FG Numbers FG1906-07 (2x25W, 8-Ohms)
FG1906-09 (75W, 70/100V) (Discontinued)
