AMX DGX-I-DXL-4K60

Hình ảnh lớn hơn

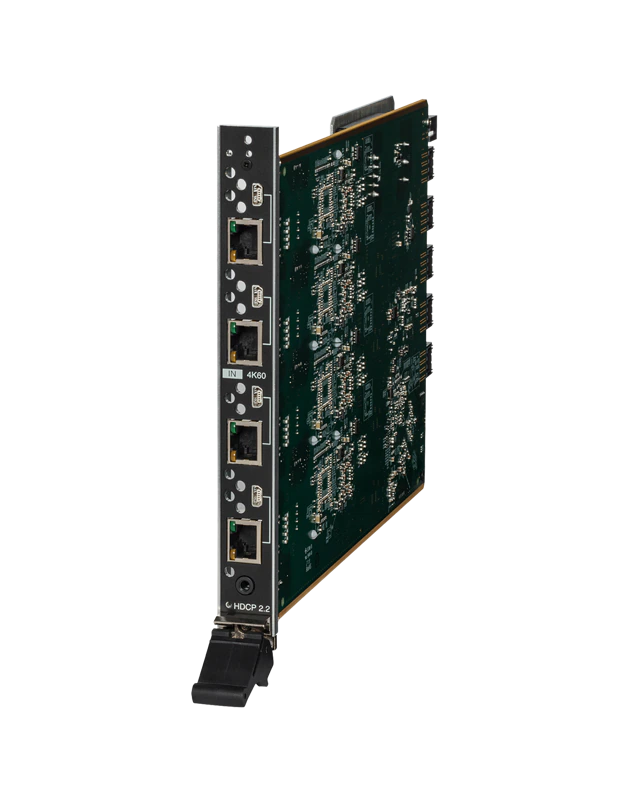

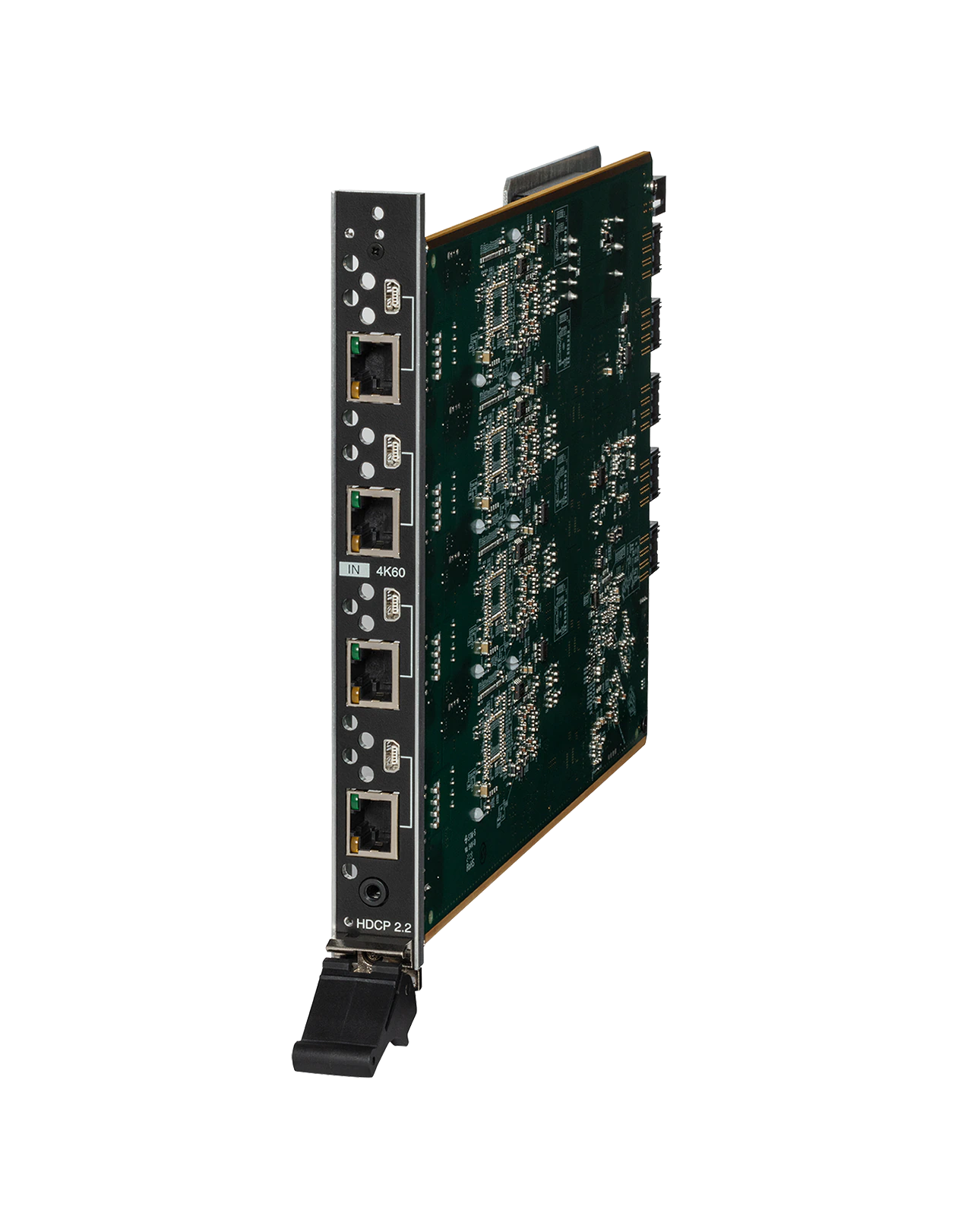

AMX Enova DGX DXLink 4K60 Input Board hỗ trợ các tính năng HDMI 2.0 và tuân thủ HDCP 2.2 với hỗ trợ video 4K60 4:4:4 đầy đủ và High Dynamic Range (HDR) để có chất lượng hình ảnh tối ưu và tái tạo hình ảnh pixel-for-pixel mà không cần nén chroma. Nó có bốn kết nối trên mỗi bảng được thiết kế để nhận audio và video từ các Bộ phát DXLink Twisted Pair trong khi truyền điều khiển hai chiều, tín hiệu USB 2.0 và Ethernet qua một cáp twisted pair Cat6, Cat6A hoặc Cat7. AMX DGX-I-DXL-4K60 Input Board tương thích với các vỏ Enova DGX 800, Enova DGX 1600, Enova DGX 3200 và Enova DGX 6400. DXLink Power có sẵn từ DXLink Input Board để cấp nguồn cho các Bộ phát DXLink Twisted Pair.

PICTURE PERFECT
Enova DGX DXLink 4K60 Input and Output boards allow end users to realize the full potential of their source and display devices by fully supporting the latest HDMI 2.0 and HDCP 2.2 standards.
HDR and Deep Color Support
Enova DGX DXLink 4K60 Input and Output boards support HDR10 and 36-bit Deep Color for the richest, most realistic video.
EVER EVOLVING PLATFORM
Enova DGX enclosures already deployed in the field can be easily upgraded to support superior video quality by adding or swapping in new Enova DGX DXLink 4K60 Twisted Pair cards and end-points. This ensures a future-proof Enova DGX family that is designed to evolve with technology.
HDBaseT COMPATIBILITY
These 4K60 Twisted Pair boards are compliant with the HDBaseT standard, making them compatible with third party HDBaseT sources/displays. When added features provided by DXLink transmitters and receivers are not required, direct connections to HDBaseT devices can be leveraged to reduce system cost.

PICTURE PERFECT
Enova DGX DXLink 4K60 Input and Output boards allow end users to realize the full potential of their source and display devices by fully supporting the latest HDMI 2.0 and HDCP 2.2 standards.

HDR and Deep Color Support
Enova DGX DXLink 4K60 Input and Output boards support HDR10 and 36-bit Deep Color for the richest, most realistic video.

EVER EVOLVING PLATFORM
Enova DGX enclosures already deployed in the field can be easily upgraded to support superior video quality by adding or swapping in new Enova DGX DXLink 4K60 Twisted Pair cards and end-points. This ensures a future-proof Enova DGX family that is designed to evolve with technology.

HDBaseT COMPATIBILITY
These 4K60 Twisted Pair boards are compliant with the HDBaseT standard, making them compatible with third party HDBaseT sources/displays. When added features provided by DXLink transmitters and receivers are not required, direct connections to HDBaseT devices can be leveraged to reduce system cost.

Thêm Chi tiết

The Enova DGX DXLink 4K60 Twisted Pair Input board is ideal for extending 4K60 4:4:4 video in any situation where the highest video quality is required:

Colleges and universities that transmit audio and video within or between classrooms for collaborative or distributed learning.
Corporations that distribute audio and video within meeting spaces or throughout facilities for corporate communications.
Healthcare facilities distributing high-resolution video within training rooms, simulation rooms, or labs.
Government entities that have operation centers with multiple analysts screening and analyzing video from a variety of sources for threat assessment, security and operational monitoring.

configuration_tool

Enova DGX 100 Series Configuration Tool

Tải xuống

Manuals

	Phiên bản	Kích thước	Đã tải lên
Support Guide - Enova DGX Board Replacement phiên bản P, cập nhật: Thg 3 2021	P	900 KB	Thg 3 2021
Support Guide – IO Board and Endpoint Compatibility cập nhật: Thg 2 2021		50 KB	Thg 2 2021

Product Guides

	Kích thước	Đã tải lên
DXLink Compatibility Tool cập nhật: Thg 4 2021		Thg 4 2021

Certifications

	Kích thước	Đã tải lên
Enova DGX 100 Series CB Test Certificate 60950 cập nhật: Thg 2 2021	200 KB	Thg 2 2021
Enova DGX 100 Series CB Test Certificate 62368 cập nhật: Thg 2 2021	100 KB	Thg 2 2021
Enova DGX 100 Series CE Declaration of Conformity cập nhật: Thg 2 2021	300 KB	Thg 2 2021

Comparison Charts

	Kích thước	Đã tải lên
Comparison Chart - DGX Video Boards cập nhật: Thg 12 2020	200 KB	Thg 12 2020

Data Sheets

	Kích thước	Đã tải lên
DGX-I-DXL-4K60 - Data Sheet cập nhật: Thg 11 2021	200 KB	Thg 11 2021

Whitepapers

	Kích thước	Đã tải lên
Cabling for Success with DXLink cập nhật: Thg 10 2020	2 MB	Thg 10 2020

Configuration Tools

	Kích thước	Đã tải lên
Enova DGX 100 Series Configuration Tool cập nhật: Thg 3 2021		Thg 3 2021

Nếu bất kỳ liên kết nào ở trên hiển thị ký tự lạ trong trình duyệt của bạn, vui lòng nhấp chuột phải vào tệp để lưu vào máy tính của bạn.

Tính năng

Perfect 4K60 4:4:4 Video - Ideal for users that can benefit from processing the full fidelity of their displays
High Dynamic Range (HDR) and Deep Color Support – Support HDR10 and 36-bit per pixel deep color
HDMI 2.0 & HDCP 2.2 - Supports the latest video standards to realize the full capabilities of HDMI interfaces
USB 2.0 - High-speed USB 2.0 data from devices like web cameras and storage devices are transmitted without the need for separate cables.
As Always, Just One Cable – Just like all current DXLink solutions, video, audio and control are delivered over a single twisted pair cable. Many competitive products require dual cable runs which adds significant cost. 4K60 4:4:4 can be transmitted up to 100m when using Cat6a shielded cable or better.
Twisted Pair Cable – Save time and effort in installation by leveraging cost effective twisted pair cable.
Hot Swappable – Easily add or replace I/O boards at any time after deployment - the system automatically recognizes the new configuration and activates the boards.
HDBaseT Compatible - Compliant with the HDBaseT standard, making them compatible with third party HDBaseT sources and displays.

Thông số kỹ thuật

Connectors	(4) RJ-45 Ports, (4) Micro-USB AB Ports
Compatible Formats	HDMI Video, Audio, Ethernet, USB2.0, Power, Serial Control, and IR Control
Signal Type Support	DXLink Twisted Pair
USB2.0	USB2.0 supported point-to-point to DXLink 4K60 HDMI Transmitters
Resolution Support	480p up to 3840x2160 @ 60Hz 4:4:4 and 4:2:2, including 3840x2160p@50/60 Hz, 4:2:0 4096x2160p@50/60 Hz, 4:2:0
Audio Format Support	Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM (Dolby Digital and DTS support up to 48 kHz, 5.1 channels)
AIE Board Support	Yes, extraction of 2 CH LPCM
Audio Switching Board Support	Supports break-away audio switching of 2 CH L-PCM for all channels Supports downmix from one input channel of Dolby True-HD, Dolby Digital, DTS-HD, DTS, or 2 to 8 channel L-PCM- Downmix supported on 4k video inputs with pixel clocks up to 297MHz (up to 3840x2160p @ 30Hz)
Compatible DXLink TX/RX	4K60 HDMI DXLink Twisted Pair Transmitters
FG Numbers	FG1061-572
JITC Status	Approved - 04/2023
