AMX DGX-I-DXL-4K60

Größere Bilder

Das AMX Enova DGX DXLink 4K60 Input Board unterstützt HDMI 2.0-Funktionen und ist HDCP 2.2-konform mit Unterstützung für vollständige 4K60 4:4:4-Videos und High Dynamic Range (HDR) für optimale Bildqualität und pixelgenaue Bildwiedergabe ohne Chroma-Subsampling. Es verfügt über vier Anschlüsse pro Board, die für den Empfang von Audio und Video von DXLink Twisted Pair Transmittern konzipiert sind, während bidirektionale Steuerung, USB 2.0 und Ethernet-Signale über ein einzelnes Cat6-, Cat6A- oder Cat7-Twisted-Pair-Kabel übertragen werden. Das AMX DGX-I-DXL-4K60 Input Board ist mit den Gehäusen Enova DGX 800, Enova DGX 1600, Enova DGX 3200 und Enova DGX 6400 kompatibel. DXLink Power ist vom DXLink Input Board verfügbar, um DXLink Twisted Pair Transmitter mit Strom zu versorgen.

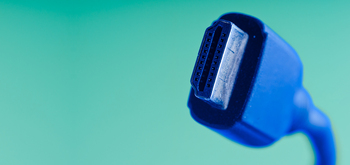

PICTURE PERFECT
Enova DGX DXLink 4K60 Input and Output boards allow end users to realize the full potential of their source and display devices by fully supporting the latest HDMI 2.0 and HDCP 2.2 standards.
HDR and Deep Color Support
Enova DGX DXLink 4K60 Input and Output boards support HDR10 and 36-bit Deep Color for the richest, most realistic video.

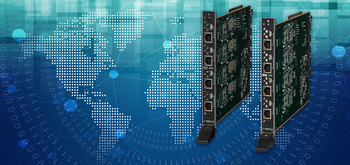

EVER EVOLVING PLATFORM
Enova DGX enclosures already deployed in the field can be easily upgraded to support superior video quality by adding or swapping in new Enova DGX DXLink 4K60 Twisted Pair cards and end-points. This ensures a future-proof Enova DGX family that is designed to evolve with technology.

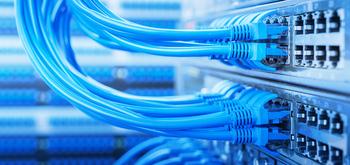

HDBaseT COMPATIBILITY
These 4K60 Twisted Pair boards are compliant with the HDBaseT standard, making them compatible with third party HDBaseT sources/displays. When added features provided by DXLink transmitters and receivers are not required, direct connections to HDBaseT devices can be leveraged to reduce system cost.

PICTURE PERFECT
Enova DGX DXLink 4K60 Input and Output boards allow end users to realize the full potential of their source and display devices by fully supporting the latest HDMI 2.0 and HDCP 2.2 standards.

HDR and Deep Color Support
Enova DGX DXLink 4K60 Input and Output boards support HDR10 and 36-bit Deep Color for the richest, most realistic video.

EVER EVOLVING PLATFORM
Enova DGX enclosures already deployed in the field can be easily upgraded to support superior video quality by adding or swapping in new Enova DGX DXLink 4K60 Twisted Pair cards and end-points. This ensures a future-proof Enova DGX family that is designed to evolve with technology.

HDBaseT COMPATIBILITY
These 4K60 Twisted Pair boards are compliant with the HDBaseT standard, making them compatible with third party HDBaseT sources/displays. When added features provided by DXLink transmitters and receivers are not required, direct connections to HDBaseT devices can be leveraged to reduce system cost.

Mehr Details

The Enova DGX DXLink 4K60 Twisted Pair Input board is ideal for extending 4K60 4:4:4 video in any situation where the highest video quality is required:

Colleges and universities that transmit audio and video within or between classrooms for collaborative or distributed learning.
Corporations that distribute audio and video within meeting spaces or throughout facilities for corporate communications.
Healthcare facilities distributing high-resolution video within training rooms, simulation rooms, or labs.
Government entities that have operation centers with multiple analysts screening and analyzing video from a variety of sources for threat assessment, security and operational monitoring.

configuration_tool

Enova DGX 100 Series Configuration Tool

Downloads

Manuals

	Version	Größe	Hochgeladen
Support Guide - Enova DGX Board Replacement Version P, aktualisiert: Mär 2021	P	868 KB	Mär 2021
Support Guide – IO Board and Endpoint Compatibility aktualisiert: Feb 2021		46,4 KB	Feb 2021

Product Guides

	Größe	Hochgeladen
DXLink Compatibility Tool aktualisiert: Apr 2021		Apr 2021

Certifications

	Größe	Hochgeladen
Enova DGX 100 Series CB Test Certificate 60950 aktualisiert: Feb 2021	201 KB	Feb 2021
Enova DGX 100 Series CB Test Certificate 62368 aktualisiert: Feb 2021	143 KB	Feb 2021
Enova DGX 100 Series CE Declaration of Conformity aktualisiert: Feb 2021	276 KB	Feb 2021

Comparison Charts

	Größe	Hochgeladen
Comparison Chart - DGX Video Boards aktualisiert: Dez 2020	159 KB	Dez 2020

Data Sheets

	Größe	Hochgeladen
DGX-I-DXL-4K60 - Data Sheet aktualisiert: Nov 2021	248 KB	Nov 2021

Whitepapers

	Größe	Hochgeladen
Cabling for Success with DXLink aktualisiert: Okt 2020	1,6 MB	Okt 2020

Configuration Tools

	Größe	Hochgeladen
Enova DGX 100 Series Configuration Tool aktualisiert: Mär 2021		Mär 2021

Falls einer der obigen Links zu seltsamen Zeichen in Ihrem Browser führt, klicken Sie bitte mit der rechten Maustaste auf die Datei, um sie auf Ihrem Computer zu speichern.

Eigenschaften

Perfect 4K60 4:4:4 Video - Ideal for users that can benefit from processing the full fidelity of their displays
High Dynamic Range (HDR) and Deep Color Support – Support HDR10 and 36-bit per pixel deep color
HDMI 2.0 & HDCP 2.2 - Supports the latest video standards to realize the full capabilities of HDMI interfaces
USB 2.0 - High-speed USB 2.0 data from devices like web cameras and storage devices are transmitted without the need for separate cables.
As Always, Just One Cable – Just like all current DXLink solutions, video, audio and control are delivered over a single twisted pair cable. Many competitive products require dual cable runs which adds significant cost. 4K60 4:4:4 can be transmitted up to 100m when using Cat6a shielded cable or better.
Twisted Pair Cable – Save time and effort in installation by leveraging cost effective twisted pair cable.
Hot Swappable – Easily add or replace I/O boards at any time after deployment - the system automatically recognizes the new configuration and activates the boards.
HDBaseT Compatible - Compliant with the HDBaseT standard, making them compatible with third party HDBaseT sources and displays.

Spezifikationen

Connectors	(4) RJ-45 Ports, (4) Micro-USB AB Ports
Compatible Formats	HDMI Video, Audio, Ethernet, USB2.0, Power, Serial Control, and IR Control
Signal Type Support	DXLink Twisted Pair
USB2.0	USB2.0 supported point-to-point to DXLink 4K60 HDMI Transmitters
Resolution Support	480p up to 3840x2160 @ 60Hz 4:4:4 and 4:2:2, including 3840x2160p@50/60 Hz, 4:2:0 4096x2160p@50/60 Hz, 4:2:0
Audio Format Support	Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM (Dolby Digital and DTS support up to 48 kHz, 5.1 channels)
AIE Board Support	Yes, extraction of 2 CH LPCM
Audio Switching Board Support	Supports break-away audio switching of 2 CH L-PCM for all channels Supports downmix from one input channel of Dolby True-HD, Dolby Digital, DTS-HD, DTS, or 2 to 8 channel L-PCM- Downmix supported on 4k video inputs with pixel clocks up to 297MHz (up to 3840x2160p @ 30Hz)
Compatible DXLink TX/RX	4K60 HDMI DXLink Twisted Pair Transmitters
FG Numbers	FG1061-572
JITC Status	Approved - 04/2023
