PR-0402

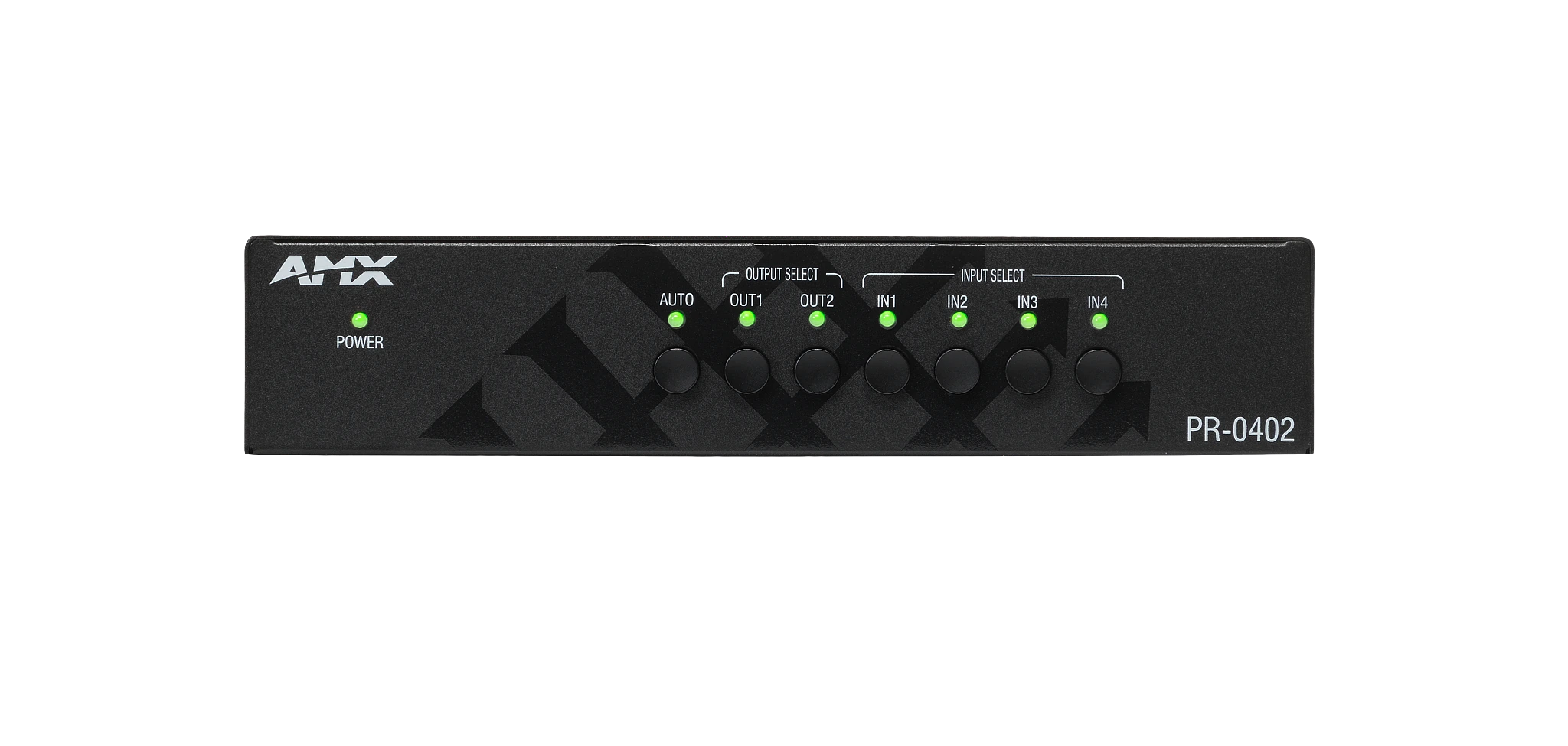

Bộ chuyển mạch HDMI Precis 4x2 4K60

Hình ảnh lớn hơn

AMX Precis 4x2 4K60 HDMI Matrix Switcher là giải pháp định tuyến video HDMI đầy đủ tính năng với mức giá cực kỳ phải chăng, phù hợp cho các hệ thống lắp đặt quy mô nhỏ đến trung bình. Với 4 đầu vào HDMI và 2 đầu ra HDMI, thiết bị mang đến những khả năng hàng đầu trong ngành như tái tạo video pixel-for-pixel, quản lý EDID toàn diện, chế độ chuyển đổi tự động hoặc thủ công, cùng tính linh hoạt điều khiển vượt trội nhờ API điều khiển mở và giao diện web HTML5 dễ quản lý.

PR-0402 hỗ trợ HDMI 2.0 chất lượng cao, HDCP 2.2, HDR10+, Deep Color 36-bit trên mỗi pixel và Dolby Vision. Chế độ chuyển đổi tự động và thủ công cùng tính năng tách âm thanh (de-embedding) động tích hợp sẵn mang lại tính linh hoạt cấu hình tối đa. Kết hợp một thiết bị chuyển mạch ma trận mạnh mẽ với mức giá cực kỳ phải chăng, cùng hơn 30 năm kinh nghiệm dẫn đầu ngành trong lĩnh vực chuyển mạch ma trận, AMX Precis PR-0402 hoàn toàn đáng tin cậy để mang đến một giải pháp chuyển mạch xuất sắc.

  • CHUYỂN ĐỔI MA TRẬN HÌNH ẢNH HOÀN HẢO
    Cho phép người dùng cuối khai thác toàn bộ tiềm năng của các thiết bị nguồn và hiển thị bằng cách hỗ trợ đầy đủ các tiêu chuẩn HDMI 2.0 4K60 4:4:4 và HDCP 2.2.

  • HDR AND DEEP COLOR SUPPORT
    The PR-Series switchers support HDR, Deep Color, and Dolby Vision for rich, more realistic video.

  • AUTO SWITCHING MODE
    Enable auto switching mode and the most recently connected source will be automatically displayed on the outputs.

  • OPEN CONTROL API
    API điều khiển mở cho phép các bộ chuyển mạch Precis PR-series được sử dụng với bất kỳ hệ thống điều khiển nào, hoặc được điều khiển trực tiếp bởi các ứng dụng như Zoom Rooms.

featured content

CHUYỂN ĐỔI MA TRẬN HÌNH ẢNH HOÀN HẢO
Cho phép người dùng cuối khai thác toàn bộ tiềm năng của các thiết bị nguồn và hiển thị bằng cách hỗ trợ đầy đủ các tiêu chuẩn HDMI 2.0 4K60 4:4:4 và HDCP 2.2.

featured content

HDR AND DEEP COLOR SUPPORT
The PR-Series switchers support HDR, Deep Color, and Dolby Vision for rich, more realistic video.

featured content

AUTO SWITCHING MODE
Enable auto switching mode and the most recently connected source will be automatically displayed on the outputs.

featured content

OPEN CONTROL API
API điều khiển mở cho phép các bộ chuyển mạch Precis PR-series được sử dụng với bất kỳ hệ thống điều khiển nào, hoặc được điều khiển trực tiếp bởi các ứng dụng như Zoom Rooms.

Thêm Chi tiết

The Precis PR-0402 4K60 HDMI Matrix Switcher is the ideal choice for beautiful, cost effective 4K60 4:4:4 matrix switching in meeting spaces, classrooms, lecture halls, houses of worship and more.

Video





Tải xuống

Manuals
  Phiên bản Kích thước Đã tải lên
file type icon Hardware Reference Manual - Precis PR-Series Matrix Switchers
phiên bản 1.0.6, cập nhật: Thg 12 2024
1.0.6  2 MB Thg 12 2024
CAD Drawings
  Kích thước Đã tải lên
file type icon Pictorial Drawing (DXF) – PR-0402
cập nhật: Thg 8 2021
10 MB Thg 8 2021
file type icon Pictorial Drawing (DWG) – PR-0402
cập nhật: Thg 8 2021
3 MB Thg 8 2021
file type icon Pictorial Drawing (PDF) – PR-0402
cập nhật: Thg 8 2021
300 KB Thg 8 2021
Firmware
  Phiên bản Kích thước Đã tải lên
download icon for PR-0402 Firmware PR-0402 Firmware
phiên bản 2.22, phát hành: Thg 12 2024
2.22   100 MB Thg 12 2024
Quick Start Guides
  Ngôn ngữ Kích thước Đã tải lên
file type icon Quick Start Guide - PR-0402
en cập nhật: Thg 8 2021
en  500 KB Thg 8 2021
Programming Guides
  Phiên bản Kích thước Đã tải lên
file type icon Zoom Room Controls – PR-0402 Configuration Example
phiên bản 0.1.5, cập nhật: Thg 9 2021
0.1.5  100 KB Thg 9 2021
Certifications
  Kích thước Đã tải lên
file type icon CE Declaration of Conformity - PR-0402
cập nhật: Thg 8 2021
600 KB Thg 8 2021
Safety Sheets
  Ngôn ngữ Kích thước Đã tải lên
file type icon Safety Instructions – Precis PR-Series
fr cập nhật: Thg 8 2021
fr  30 KB Thg 8 2021
file type icon Safety Instructions – Precis PR-Series
en cập nhật: Thg 8 2021
en  30 KB Thg 8 2021
Data Sheets
  Ngôn ngữ Kích thước Đã tải lên
file type icon Data Sheet - PR-0402
en cập nhật: Thg 8 2021
en  1000 KB Thg 8 2021

Nếu bất kỳ liên kết nào ở trên hiển thị ký tự lạ trong trình duyệt của bạn, vui lòng nhấp chuột phải vào tệp để lưu vào máy tính của bạn.

Tính năng

  • Perfect HDMI 2.0 4K60 4:4:4 Video - Ideal for users that can benefit from processing the full fidelity of their displays
  • High Dynamic Range (HDR) and Deep Color Support – Support for HDR10+, 36-bit per pixel Deep Color, and Dolby Vision
  • HDCP 2.2 - Supports the latest video standards to realize the full capabilities of HDMI interfaces
  • EDID Management - Provides comprehensive management of EDID to ensure that every source is displayed at the optimal resolution and format
  • Automatic and Manual Switching Modes – Automatic switching can be leveraged to create a touch-free experience
  • Audio De-Embedding – Includes the convenience of analog audio de-embedding from each HDMI output separately
  • H-Control Upgradable – Ready to support H-control in the future by firmware re-writing via USB.
  • Multiple Control Options – Multiple control options are available including: Open API Control over IP and Serial, full Web GUI console, and front panel buttons

Thông số kỹ thuật

Video Inputs (4) HDMI; supports HDMI/HDCP
Video Outputs (2) HDMI; supports HDMI/HDCP
Video Resolution Support Various up to 4096 x 2160@ 60 Hz - Reference Data Sheet for Specific Resolution Support
Audio Inputs Embedded audio on HDMI; supports 2 CH L-PCM de-embedding and pass-through of PCM 2-Channel, PCM Multi-Channel, Dolby Digital, Dolby Digital Plus, Dolby Atmos, Dolby TrueHD, DTS, & DTS HD MA
Audio Outputs (2) 3 Position 3.5mm pluggable Phoenix Terminal Block; supports Unbalanced Analog Stereo
Ports 12V Power: Screw Down Locking Power Connector; HDMI Input: (4) HDMI Type A Socket; HDMI Output: (2) HDMI Type A Socket; Ethernet: RJ45 Connector; Analog Stereo Output: (2) 3 Position 3.5mm pluggable Phoenix Terminal Block; RS-232: (1) 3 Position 3.5 mm pluggable Phoenix Terminal Block; Program Port: (1) USB Type A Socket
Environmental Temperature (Operating): 32°F (0°C) to 122°F (50°C)
Temperature (Storage): -4°F (-20°C) to 140°F (60°C)
Humidity (Operating): 10% to 90% RH (non-condensing)
Humidity (Storage): 10% to 90% RH (non-condensing)
Thermal Dissipation (Typical): 33.4 BTU/hr
Regulatory Compliance FCC Part 15 Class B
EN 55032
EN 55035
CB IEC/EN 60950
CB IEC/EN 62368-1
UL 62368-1
RoHS/REACH
EMC (Australia)
EMC (Canada)
EMC (UKCA)
Prop65
Dimensions (H x W x D) 1.73" x 8.4" x 8.07" (4.4 cm x 21.35 cm x 20.5 cm)
Weight 2.9 lbs (1.3 kg)
FG Numbers AMX-PR-0402
