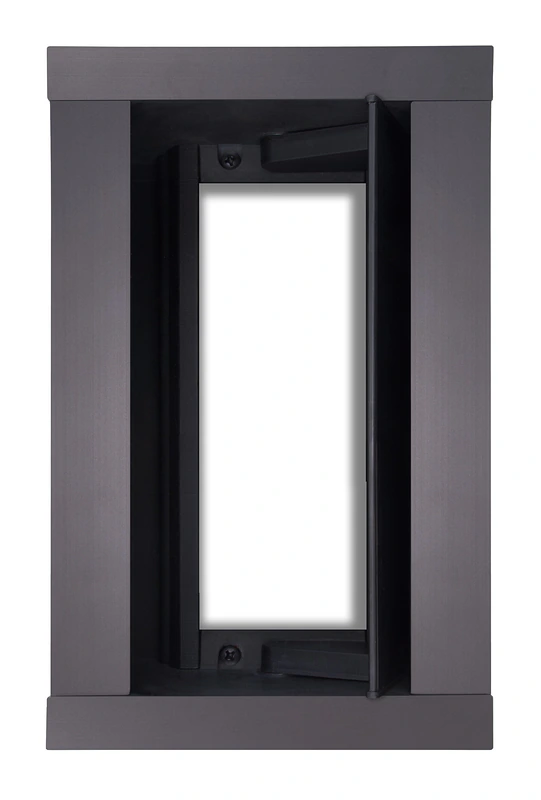

AMX HPX-600

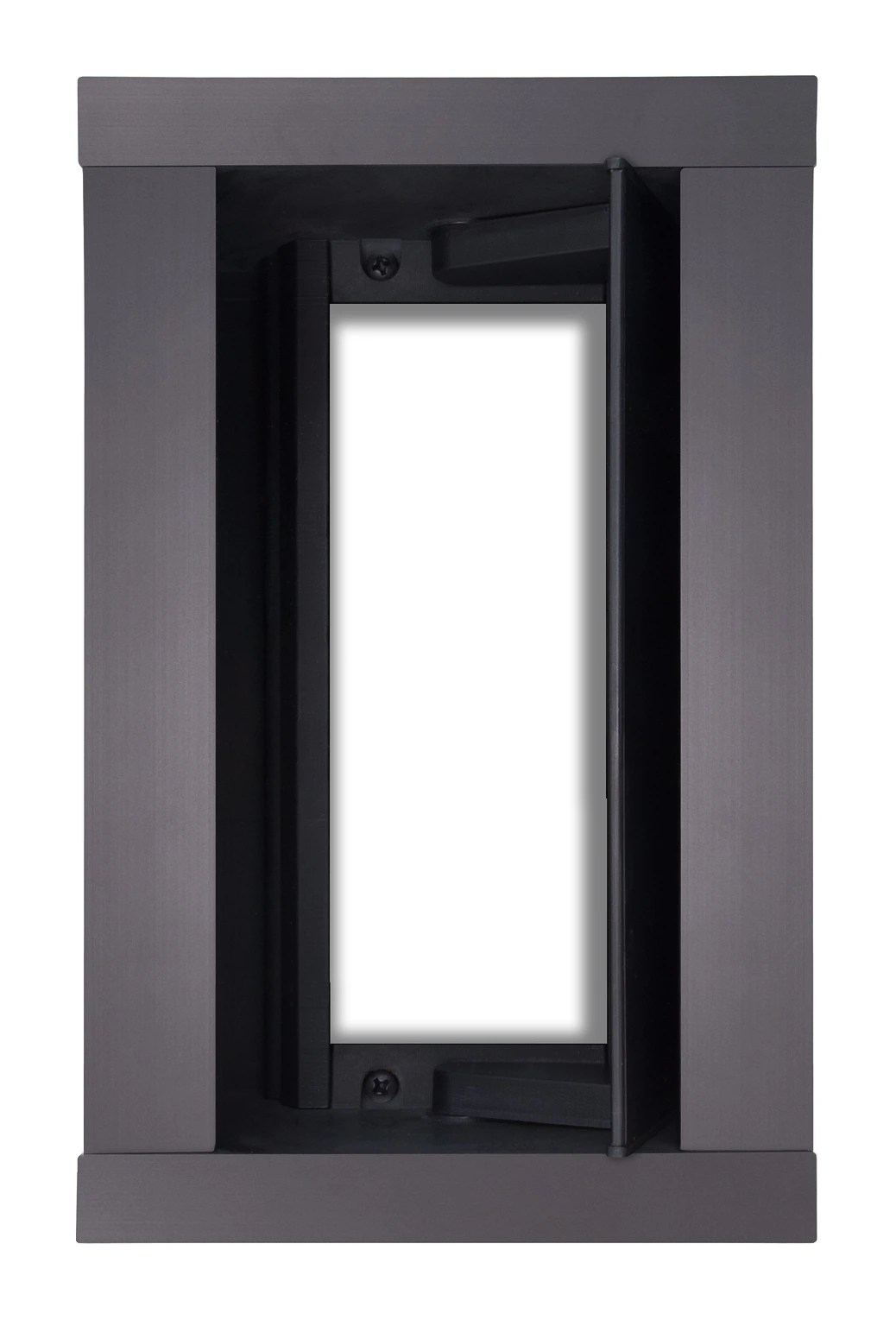

Hình ảnh lớn hơn

The HPX-600 6 HydraPort^® Unit Enclosure is a modular AV table box for connecting mobile devices to projectors or displays in a conference room or classroom. This sleek, flush-mount table box is typically installed in a conference room or classroom table, featuring a uniquely-designed lid that conveniently opens in both directions to provide a clean, unobtrusive look.

No matter how you bring in your content - via HDMI, Ethernet, USB and other popular formats - you have access to the cable or connection you need, whenever you need it. The HydraPort Architectural Connectivity System uses simple, interchangeable modules to put together the exact future-proof configuration you need today and tomorrow.

Thêm Chi tiết

With 6 available HydraPort Units available for modules, the HPX-600 is perfect for smaller rooms that need the capability to connect a small number of different device types to the AV system, or to provide AC power to one or two different devices
The HPX-600 is designed for any conference room, classroom or boardroom that requires the capability to connect devices to the AV system, with an unobtrusive style
With the capability to accommodate button modules, the HPX-600 is ideal for rooms that require an additional control interface at the table or lectern, or for smaller spaces where a keypad is the primary control interface

configuration_tool

HydraPort Connection Preview Configuration Tool

Tải xuống

CAD Drawings

	Kích thước	Đã tải lên
Mounting Specification - HPX-600, 900, 1200 Chassis (DXF) cập nhật: Thg 1 2024	1000 KB	Thg 1 2024
Mounting Specification - HPX-600, 900, 1200 Chassis (PDF) cập nhật: Thg 10 2018	300 KB	Thg 10 2018
Pictorial Drawing - HPX-600, 900, 1200 Chassis (DWG) cập nhật: Thg 1 2024	200 KB	Thg 1 2024
Pictorial Drawing - HPX-600, 900, 1200 Chassis (DXF) cập nhật: Thg 1 2024	900 KB	Thg 1 2024
Pictorial Drawing - HPX-600, 900, 1200 Chassis (PDF) cập nhật: Thg 1 2024	300 KB	Thg 1 2024

BIM Objects

	Kích thước	Đã tải lên
HPX-600 \| HPX-900 \| HPX-1200 - BIM Objects cập nhật: Thg 8 2019		Thg 8 2019

Quick Start Guides

	Kích thước	Đã tải lên
Quick Start Guide - HPX-600/900/1200 Module Connection Ports cập nhật: Thg 10 2020	300 KB	Thg 10 2020

Safety Sheets

	Phiên bản	Kích thước	Đã tải lên
Safety Instructions - HydraPort phiên bản E, cập nhật: Thg 1 2024	E	1 MB	Thg 1 2024

A&E (Architectural & Engineering) Specifications

	Kích thước	Đã tải lên
A&E Spec - HPX-600 6 Module Connection Port cập nhật: Thg 6 2018	50 KB	Thg 6 2018

Data Sheets

	Phiên bản	Kích thước	Đã tải lên
Data Sheet – HPX-600 phiên bản B, cập nhật: Thg 2 2025	B	500 KB	Thg 2 2025

Configuration Tools

	Kích thước	Đã tải lên
HydraPort Connection Preview Configuration Tool cập nhật: Thg 3 2021		Thg 3 2021

Nếu bất kỳ liên kết nào ở trên hiển thị ký tự lạ trong trình duyệt của bạn, vui lòng nhấp chuột phải vào tệp để lưu vào máy tính của bạn.

Tính năng

Future-Proof Modular Design – Features an assembly with the flexibility to change the modules to meet current and future needs
Elegant and Unobtrusive – Flush-mount design installs cleanly into a lectern or table and the lid conveniently opens in both directions providing a sleek look
No Electrician Required – HydraPort power modules can be connected directly to a wall or floor outlet eliminating the need for an electrician
Control The Room – Add keypad or button modules to control A/V devices, lighting, & shades, as well as to initiate pre-programmed events like source selection or display power
Anodized Aluminum – These stylish, low profile connectivity ports have the same contemporary brushed aluminum enclosure as the higher-end office furniture manufacturers at the same price as most competitive painted metal models

Thông số kỹ thuật

Number of Modules Supported	Six (6) total HydraPort Units. See Data Sheet for details.
Mounting Surface Footprint	8 3/16" x 5 7/16" (208mm x 138mm)
Table Cutout Dimensions	7.64" x 4.84" (194mm x 123mm)
FG Numbers	FG560-01-BL (Black Anodized) FG560-01-SL (Brushed Aluminum)
