AMX HPX-600

큰 이미지

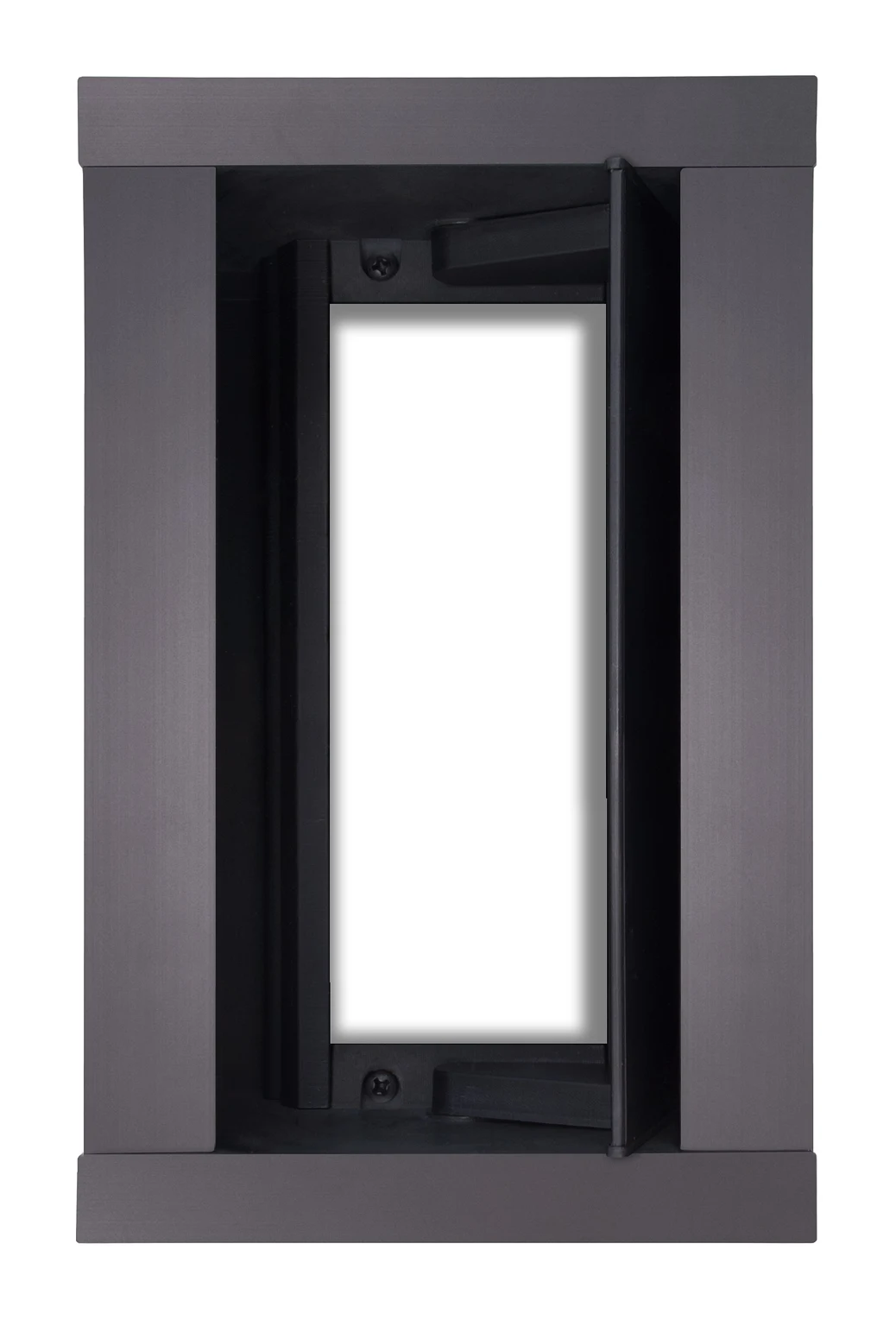

The HPX-600 6 HydraPort^® Unit Enclosure is a modular AV table box for connecting mobile devices to projectors or displays in a conference room or classroom. This sleek, flush-mount table box is typically installed in a conference room or classroom table, featuring a uniquely-designed lid that conveniently opens in both directions to provide a clean, unobtrusive look.

No matter how you bring in your content - via HDMI, Ethernet, USB and other popular formats - you have access to the cable or connection you need, whenever you need it. The HydraPort Architectural Connectivity System uses simple, interchangeable modules to put together the exact future-proof configuration you need today and tomorrow.

더 알아보기

With 6 available HydraPort Units available for modules, the HPX-600 is perfect for smaller rooms that need the capability to connect a small number of different device types to the AV system, or to provide AC power to one or two different devices
The HPX-600 is designed for any conference room, classroom or boardroom that requires the capability to connect devices to the AV system, with an unobtrusive style
With the capability to accommodate button modules, the HPX-600 is ideal for rooms that require an additional control interface at the table or lectern, or for smaller spaces where a keypad is the primary control interface

configuration_tool

HydraPort Connection Preview Configuration Tool

다운로드

CAD Drawings

	크기	업로드 날짜
Mounting Specification - HPX-600, 900, 1200 Chassis (DXF) 업데이트: 2024년 1월	963KB	2024년 1월
Mounting Specification - HPX-600, 900, 1200 Chassis (PDF) 업데이트: 2018년 10월	295KB	2018년 10월
Pictorial Drawing - HPX-600, 900, 1200 Chassis (DWG) 업데이트: 2024년 1월	199KB	2024년 1월
Pictorial Drawing - HPX-600, 900, 1200 Chassis (DXF) 업데이트: 2024년 1월	861KB	2024년 1월
Pictorial Drawing - HPX-600, 900, 1200 Chassis (PDF) 업데이트: 2024년 1월	297KB	2024년 1월

BIM Objects

	크기	업로드 날짜
HPX-600 \| HPX-900 \| HPX-1200 - BIM Objects 업데이트: 2019년 8월		2019년 8월

Quick Start Guides

	크기	업로드 날짜
Quick Start Guide - HPX-600/900/1200 Module Connection Ports 업데이트: 2020년 10월	297KB	2020년 10월

Safety Sheets

	버전	크기	업로드 날짜
Safety Instructions - HydraPort 버전 E, 업데이트: 2024년 1월	E	1.25MB	2024년 1월

A&E (Architectural & Engineering) Specifications

	크기	업로드 날짜
A&E Spec - HPX-600 6 Module Connection Port 업데이트: 2018년 6월	51KB	2018년 6월

Data Sheets

	버전	크기	업로드 날짜
Data Sheet – HPX-600 버전 B, 업데이트: 2025년 2월	B	476KB	2025년 2월

Configuration Tools

	크기	업로드 날짜
HydraPort Connection Preview Configuration Tool 업데이트: 2021년 3월		2021년 3월

위의 링크 중 하나에서 브라우저에 이상한 문자가 표시되면, 파일을 마우스 오른쪽 버튼으로 클릭하여 컴퓨터에 저장하세요.

특징

Future-Proof Modular Design – Features an assembly with the flexibility to change the modules to meet current and future needs
Elegant and Unobtrusive – Flush-mount design installs cleanly into a lectern or table and the lid conveniently opens in both directions providing a sleek look
No Electrician Required – HydraPort power modules can be connected directly to a wall or floor outlet eliminating the need for an electrician
Control The Room – Add keypad or button modules to control A/V devices, lighting, & shades, as well as to initiate pre-programmed events like source selection or display power
Anodized Aluminum – These stylish, low profile connectivity ports have the same contemporary brushed aluminum enclosure as the higher-end office furniture manufacturers at the same price as most competitive painted metal models

사양

Number of Modules Supported	Six (6) total HydraPort Units. See Data Sheet for details.
Mounting Surface Footprint	8 3/16" x 5 7/16" (208mm x 138mm)
Table Cutout Dimensions	7.64" x 4.84" (194mm x 123mm)
FG Numbers	FG560-01-BL (Black Anodized) FG560-01-SL (Brushed Aluminum)
