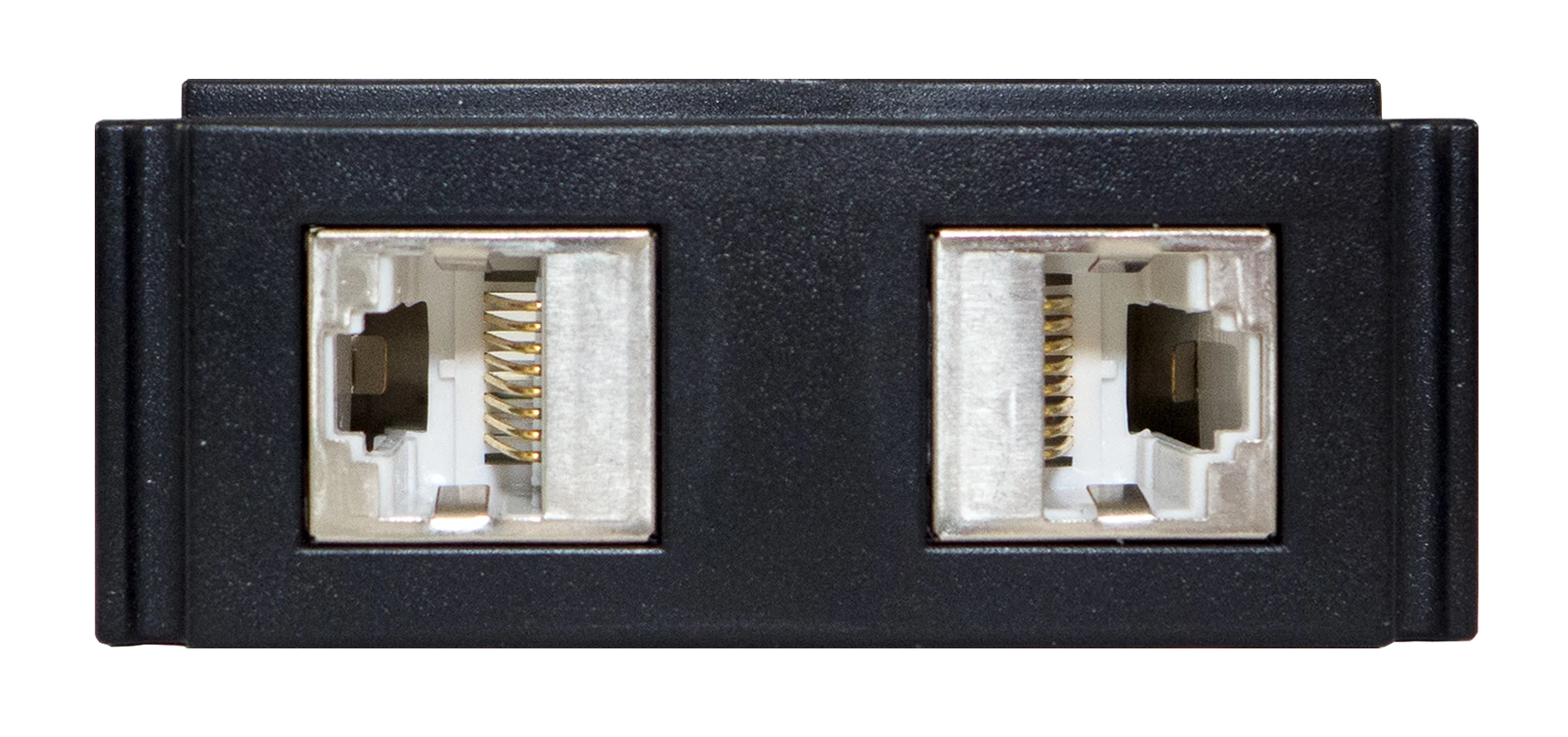

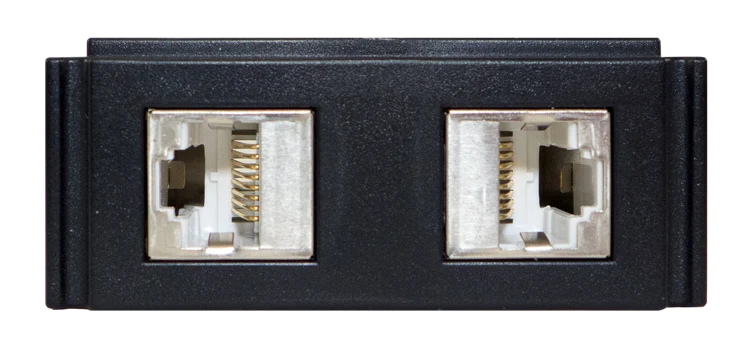

The HPX-N102-SRJ45 module provides two Shielded Cat6 RJ-45 connections to the HydraPort® 600, 900 or 1200. Due to the extended depth of this module it is not recommended for use with the HPX-1600.
큰 이미지
더 알아보기
Learn important installation, configuration and programming techniques in the following course(s) from Harman Professional University:
- Getting Started with HydraPort
For schedules and registration for these and any Harman Professional University courses, visit College of AMX.
configuration_tool
다운로드
Data Sheets
| 크기 | |
|
|
1.02MB |
Configuration Tools
| 크기 | |
|
|
위의 링크 중 하나에서 브라우저에 이상한 문자가 표시되면, 파일을 마우스 오른쪽 버튼으로 클릭하여 컴퓨터에 저장하세요.
사양
| Dimensions | 1 HydraPort Unit (See the HPX-600, HPX-900, HPX-1200 specifications section for an explanation of HydraPort units) |
| Front Panel Components | (2) Shielded RJ-45 connectors |
| Rear Panel Components | (2) 8-position shielded punch-down blocks with shield termination |
| FG Numbers | FG563-04 |
