HPX-900

9 Module Connection Port

Larger Images

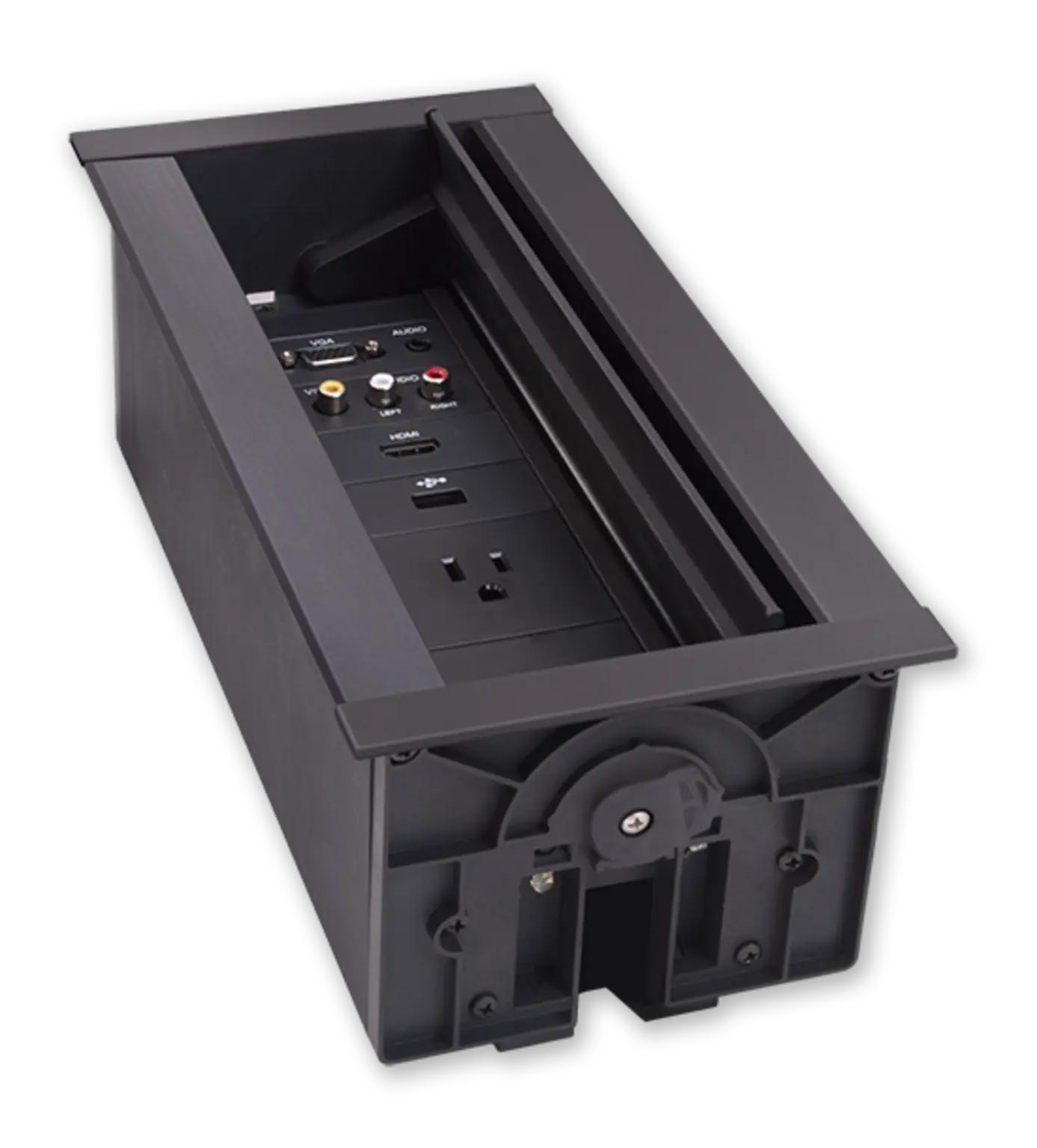

The HPX-900 / HydraPort® 9 Module Connection Port is a modular AV table box for connecting mobile devices to projectors or displays in a conference room or classroom. This sleek, flush-mount table box is typically installed in a conference room or classroom table, featuring a uniquely-designed lid that conveniently opens in both directions to provide a clean, unobtrusive look.

No matter how you bring in your content - via HDMI, VGA, USB and other popular formats - you have access to the cable or connection you need, whenever you need it. The HydraPort Architectural Connectivity System uses simple, interchangeable modules to put together the exact future-proof configuration you need today and tomorrow.

Common Applications

  • With 9 available modules, the HPX-900 is perfect for mid-sized rooms that need the capability to connect several different device types to the AV system, or to provide AC power to several different devices
  • The HPX-900 is designed for any conference room, classroom or boardroom that requires the capability to connect several device types, with an unobtrusive style
  • With the capability to accommodate AMX Metreau Keypads, the HPX-900 is ideal for large rooms that require an additional control interface at the table or lectern, or for small huddle spaces where the Metreau Keypads are the primary control interface

Configuration Tool

Downloads

  Version Language Size Uploaded
Brochures
file type icon HydraPort Product Brochure
updated: Oct 22
    1.24 MB Oct 22
CAD Drawings
file type icon Mounting Specification - HPX-600, 900, 1200 Chassis (DXF)
updated: Apr 06
    963 KB Apr 06
file type icon Mounting Specification - HPX-600, 900, 1200 Chassis (PDF)
updated: Oct 09
    295 KB Oct 09
file type icon Pictorial Drawing - HPX-600, 900, 1200 Chassis (DWG)
updated: Apr 06
    199 KB Apr 06
file type icon Pictorial Drawing - HPX-600, 900, 1200 Chassis (DXF)
updated: Apr 06
    861 KB Apr 06
file type icon Pictorial Drawing - HPX-600, 900, 1200 Chassis (PDF)
updated: Apr 06
    297 KB Apr 06
Bim Objects
file type icon HPX-600 | HPX-900 | HPX-1200 - BIM Objects
updated: Aug 12
    Aug 12
Quick Start Guides
file type icon Quick Start Guide - HPX-600/900/1200 Module Connection Ports
updated: Oct 22
    297 KB Oct 22
file type icon Quick Start Guide - HPX-AC-TMPLT HPX-600/900/1200 Installation Router Guides
updated: Oct 22
    273 KB Oct 22
A&E (Architectural & Engineering) Specifications
file type icon A&E Spec - HPX-900 9 Module Connection Port
updated: Jun 27
    52 KB Jun 27
Product Guides
file type icon HydraPort Product Guide
updated: Oct 23
    355 KB Oct 23
Application Guides
file type icon AMX and the Perfect Meeting Room
updated: Oct 22
    426 KB Oct 22
Safety Sheets
file type icon Safety Instructions - HydraPort
version B, updated: Oct 22
  90.8 KB Oct 22
Data Sheets
file type icon Data Sheet – HPX-900
updated: Jan 08
    794 KB Jan 08
Configuration Tools
file type icon HydraPort Connection Preview Configuration Tool
updated: Mar 23
    Mar 23

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Future-Proof Modular Design – Features an assembly with the flexibility to change the modules to meet current and future needs
  • Elegant and Unobtrusive – Flush-mount design installs cleanly into a lectern or table and the lid conveniently opens in both directions providing a sleek look
  • No Electrician Required – HydraPort power modules can be connected directly to a wall or floor outlet eliminating the need for an electrician
  • Control The Room – Add Metreau® or Novara® Keypad modules to control AV devices, lighting or shades as well as to initiate pre-programmed events
  • Anodized Aluminum – These stylish, low profile connectivity ports have the same contemporary brushed aluminum enclosure as the higher-end office furniture manufacturers at the same price as most competitive painted metal models

Specifications

Number of Modules Supported 9 total single-space modules. See Data Sheet for details.
Mounting Surface Footprint 11 5/32" x 5 7/16" (283mm x 138mm)
Table Cutout Dimensions 10.59" x 4.84" (269mm x 123mm)
FG Numbers

FG560-02-SL (Brushed Aluminum)
FG560-02-BL (Black Anodized)
