HPX-N100-SRJ45

Single Shielded Cat6 Ethernet Module

Larger Images

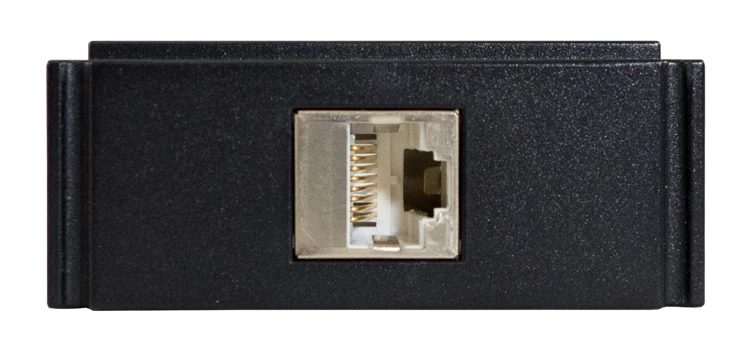

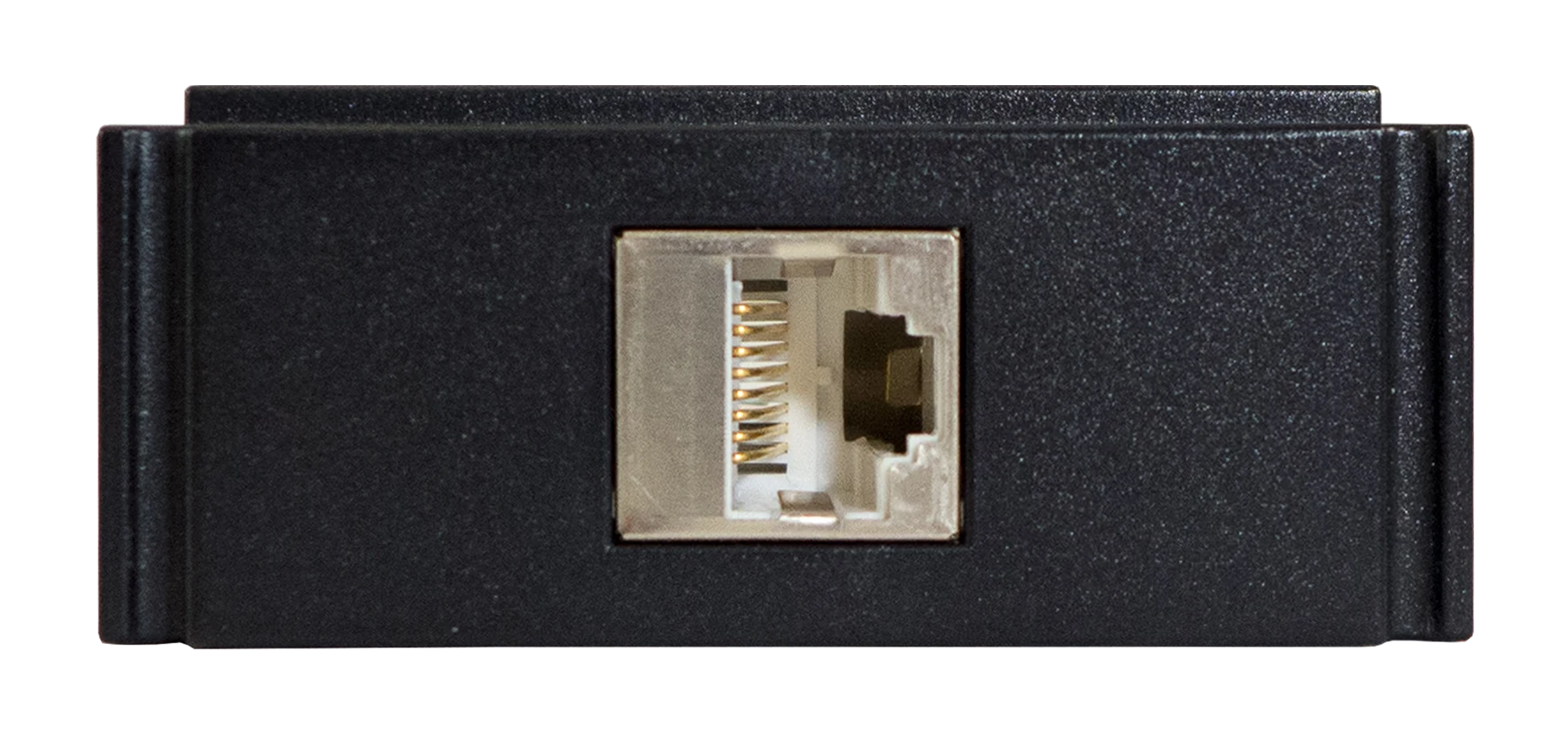

The HPX-N100-SRJ45 module provides one Shielded Cat6 RJ-45 connection to a HydraPort® 600, 900 or 1200. Due to the extended depth of this module it is not recommended for use with the HPX-1600.

Training

Learn important installation, configuration and programming techniques in the following course(s) from Harman Professional University:

  • Getting Started with HydraPort

 For schedules and registration for these and any Harman Professional University courses, visit College of AMX.

Configuration Tool

Downloads

  Version Language Size Uploaded
Brochures
HydraPort Product Brochure     1.24 MB Jul 17, 2018
Data Sheets
HPX-1200 12 Module Connection Ports (english)     1 MB Jul 12, 2018
HPX-1200 12 Module Connection Ports (german)     1.54 MB Jul 12, 2018
HPX-900 9 Module Connection Ports (english)     1.05 MB Jul 12, 2018
HPX-900 9 Module Connection Ports (german)     2 MB Jul 12, 2018
HPX-600 6 Module Connection Ports (english)     1010 KB Jul 12, 2018
HPX-600 6 Module Connection Ports (german)     1.5 MB Jul 12, 2018
Safety Sheets
Safety Instructions - HydraPort   90.8 KB Jul 13, 2018
Configuration Tools
HydraPort Connection Preview Configuration Tool     Jan 11, 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Dimensions

1 HydraPort Unit (See the HPX-600, HPX-900, HPX-1200 specifications section for an explanation of HydraPort units)

Front Panel Components (1) Shielded RJ-45 connector
Rear Panel Components (1) 8-position shielded punch-down block with shield termination
FG Numbers FG563-03
