NMX-WP-N2510 Windowing Processor

N2000 Series HD Windowing Processor, 4x1

Larger Images

OVERVIEW

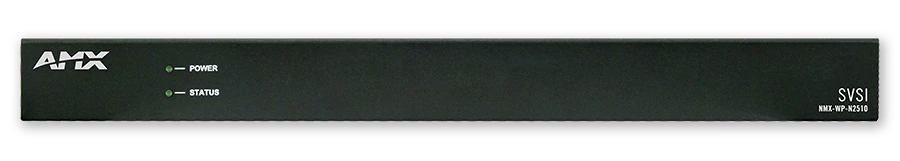

The NMX-WP-N2510 Windowing Processor functions with the N-Series family of Video over IP Encoders and Decoders and are capable of handling multiple real-time HD streams with no video input or output connectors – using only a single network port. This is a fundamental shift in the way ProAV technologies have traditionally addressed windowing, but one that increases capability and flexibility while reducing installation and support costs.

The N-Series Windowing Processor is a 1RU rack-mount appliance that connects to an SVSI video over ip network and accepts any four video streams as input. Each input can be cropped, scaled, and positioned according to stored presets (such as quad, window-in-window, 3+1, etc) or in any user-defined configuration. The combined output video stream is then routed to one or more displays at HD 1080p or CG 1600×1200 resolution. It functions as a 4×1 windowing processor and can be stacked to give 7×1, 10×1, 13×1, 16×1, or higher capability. A single connection to the network provides access to all available SVSI video streams for window selection and for output of the combined stream.

Downloads

  Version Language Size Uploaded
file type icon Data Sheet
updated: Oct 19, 2021
    397 KB Oct 19, 2021
Manuals
file type icon NetLinx Control for N-Series Products Documentation Addendum
updated: Oct 22, 2020
    1.05 MB Oct 22, 2020
CAD Drawings
file type icon Pictorial Drawing (PDF) – N1512, N2410, N2510
updated: Aug 06, 2021
    60.1 KB Aug 06, 2021
file type icon Pictorial Drawing (DWG) – N1512, N2410, N2510
updated: Aug 06, 2021
    188 KB Aug 06, 2021
Software
platform icon SVSI N2000 Series Windowing Processor Firmware Updater
version 2.1.10a, updated: Jun 21, 2018
2.1.10a     36.4 MB Jun 21, 2018
platform icon N-ABLE-PC
version 2020-07-28, updated: Jan 04, 2021
2020-07-28     102 MB Jan 04, 2021
Quick Start Guides
file type icon Quick Start Guide - NMX-WP-N2510 N2000 Series Windowing Processor, 4x1
updated: Mar 28, 2018
    2.14 MB Mar 28, 2018
Product Guides
file type icon NET-SVSI-MIB.txt
updated: Aug 04, 2021
    94.5 KB Aug 04, 2021
file type icon Product Guide - N-Series Stream Compatibility Guide
updated: Nov 10, 2020
    83.6 KB Nov 10, 2020
file type icon Product Guide - N-Series Video Wall/Crop Limitation
updated: Oct 23, 2020
    72.8 KB Oct 23, 2020
file type icon Product Guide - N-Series Minimum Network Requirement
updated: Oct 23, 2020
    88.8 KB Oct 23, 2020
Programming Guides
file type icon Direct Control API - N-Series Windowing Processor
updated: Oct 22, 2020
    234 KB Oct 22, 2020
Install Guides
file type icon SVSI Networked AV - Pre-Implementation Guide
updated: Mar 29, 2018
    607 KB Mar 29, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Retrofit Capable – Easily retrofits to an existing SVSi video network.
  • Up to 4 Video Streams – Accepts up to four independent video streams in addition to user-defined static backgrounds.
  • Built-In Web Interface – Easy-to-use, built-in web browser interface provides pallets to manipulate each ‘window’ stream: Crop, scale and position in seconds.
  • 4x1 Windowing + Stacking – 4×1 windowing with stacking capability.
  • HD Output – HD 1080p or CG 1600×1200 resolution output.
  • Audio Matrix Switch – Built-in audio matrix switch allows selection of any audio stream for Windowing Processor output.

Specifications

Dimensions (HWD) 1.75" x 17.25" x 12" (4.5 cm x 43.8 cm x 30.5 cm)
Signal Type Support Network video over Ethernet via RJ45
Video Input Resolutions Minimum resolution of 720x480p, Maximum horizontal resolution of 1920 or a vertical resolution of 1080. See Data Sheet for details.
Video Output Resolutions HD Up to 1080p60
Front Panel Components Reset button, Power LED, Status LED, Diagnostic LEDs. See Data Sheet for details.
Rear Panel Components One 120 Volt AC power input, 8-wire RJ45 female, 10/100/1000 Mbps 10/100/1000Base-T auto-sensing gigabit Ethernet switch port, 1000 Mbps 1000Base-T gigabit Ethernet switch ports. (Required for uncompressed video.). See Data Sheet for details.
FG Numbers FGN2510

NMX-WP-N2510 Windowing Processor

N2000 Series HD Windowing Processor, 4x1
