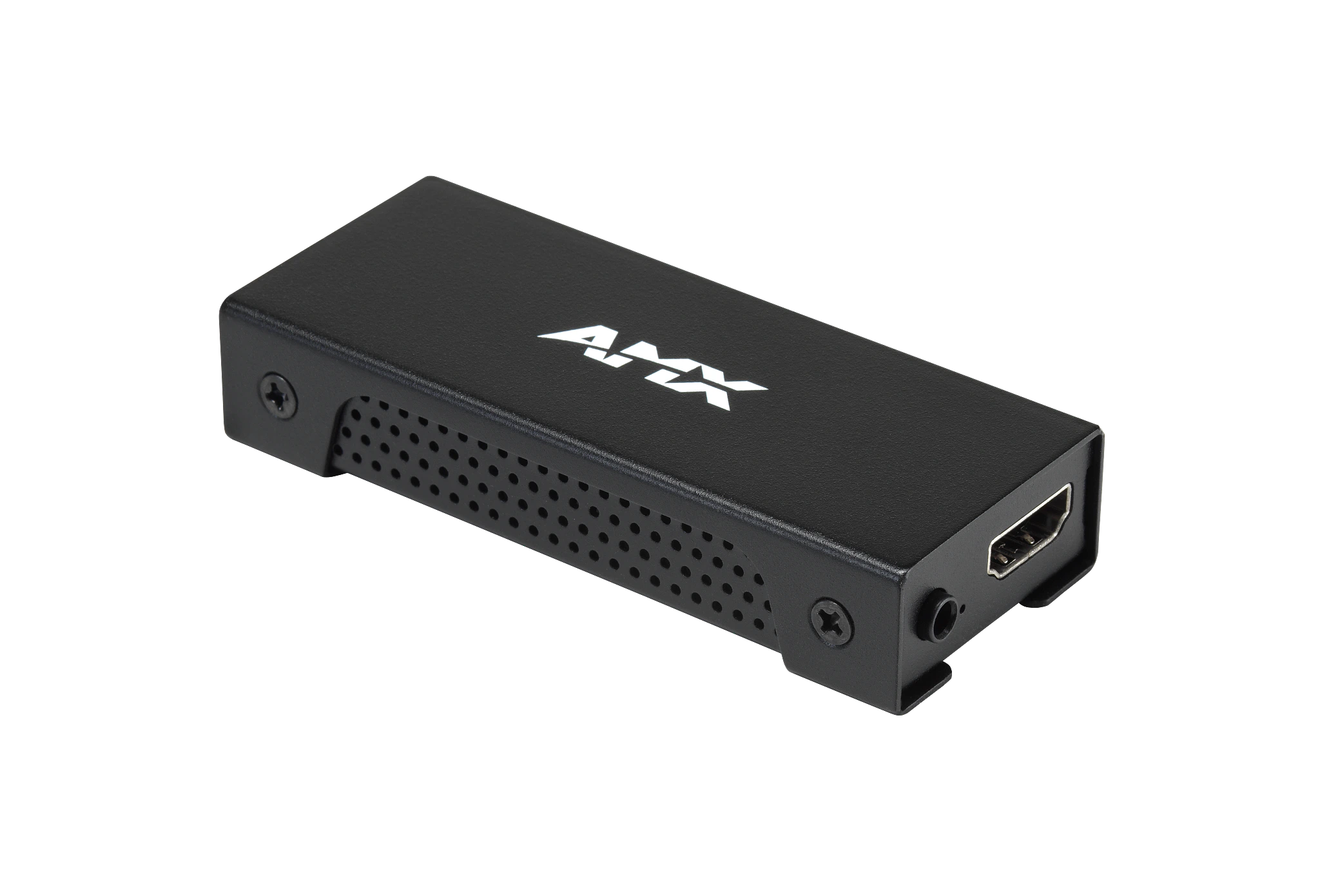

UVC1-4K

4K HDMI to USB Capture Device

Coming Soon
Larger Images

The UVC1-4K captures content from HDMI video sources for seamless importation into PCs and video conferencing software such as Zoom or Teams via USB. It supports HDMI video input resolutions up to 4096×2160p@60 4:4:4, HDR, and 10-bit per channel Deep Color and outputs resolutions up to 3840×2160p@30fps (NV12, I420) or 1920×1080p@60fps (YUY2, P010).

The UVC1-4K solves the issue of PCs that lack HDMI or other video inputs for importing content from video cameras, document cameras, DVD players or other traditional video sources. It also serves as an ideal solution for users of the AMX TPC-TPI-PRO professional in-room presentation management system, offering the ability to preview and control their presentation and environment from a single, third-party touch panel interface.

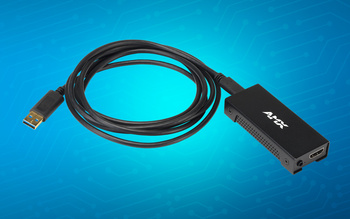

  • ZOOM AND TEAMS COMPATIBLE
    Import video cameras, document cameras, DVD players or other traditional video sources into Zoom, Teams, or other UVC applications.

  • PICTURE PERFECT VIDEO CAPTURE
    Allows end users to realize the potential of their source devices by capturing 4K resolutions up to 4096×2160p@60 4:4:4.

  • HDR AND DEEP COLOR SUPPORT
    The UVC1- 4K supports HDR and 10-bit per channel Deep Color for rich, more realistic video.

  • POPULAR OS PLATFORM SUPPORT
    To ensure wide-ranging interoperability with a variety of PCs, both Windows and macOS are fully supported.

ZOOM AND TEAMS COMPATIBLE
Import video cameras, document cameras, DVD players or other traditional video sources into Zoom, Teams, or other UVC applications.

PICTURE PERFECT VIDEO CAPTURE
Allows end users to realize the potential of their source devices by capturing 4K resolutions up to 4096×2160p@60 4:4:4.

HDR AND DEEP COLOR SUPPORT
The UVC1- 4K supports HDR and 10-bit per channel Deep Color for rich, more realistic video.

POPULAR OS PLATFORM SUPPORT
To ensure wide-ranging interoperability with a variety of PCs, both Windows and macOS are fully supported.

Common Applications

The UVC1- 4K is ideal for colleges and universities leveraging software video conferencing or software lecture recording solutions for distance learning or when using TPC-TPI-PRO to preview and control in-room video. It is also a great fit for corporate applications where software video conferencing is deployed.

Downloads

  Version Language Size Uploaded
Quick Start Guides
Quick Start Guide - UVC1-4K
en updated: Jul 16, 2021
  en  861 KB Jul 16, 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • HDMI 2.0 Support - HDMI video input supports resolutions up to 4096×2160p@60 4:4:4, HDR, and 10-bit per channel Deep Color
  • USB 3.0 Capture - UVC video output supports resolutions up to 3840×2160p@30fps (NV12, I420) or 1920×1080p@60fps (YUY2, P010)
  • Audio Input Embedded - Audio input support includes analog stereo audio and HDMI embedded audio
  • Support for Popular OS Platforms - Windows 10 (64-bit), macOS (10.12 or newer)
  • UVC Software Compatible - Supports Zoom, Teams, WebEx, Skype, Slack, Discord, BlueJeans, GoToMeeting, VLC, and more.
  • Ideal TPC-TPI-Pro Companion - Works with AMX TPC-TPI-PRO professional in-room presentation management system to enable users to preview and control their presentation and environment from a single, third-party touch panel interface

Specifications

Video Inputs (1) HDMI 2.0
Video Outputs (1) USB 3.0; supports UVC 1.1
Video Input Resolutions Up to 4096×2160p@60fps (4:4:4 10-Bit HDR)
UVC Output Resolution 4096×2160p@60/50fps and 3840×2160p@60/50fps
inputs will be output at 3840×2160p@30fps
(NV12, I420) or 1920×1080p@60fps (YUY2, P010)
For all inputs below 3840×2160p@30fps, UVC1-4K outputs will match the input resolution
Audio Inputs HDMI Embedded Audio / 3.5mm Analog Stereo Audio
Ports HDMI Input: (1) HDMI Type A Socket; Analog Stereo Input: (1) 3.5 mm TRS audio jack; USB 3.0: (1) USB Type C Socket
Environmental Temperature (Operating): 32°F (0°C) to 104°F (40°C)
Temperature (Storage): -4°F (-20°C) to 158°F (70°C)
Humidity (Operating): 10% to 90% RH (non-condensing)
Humidity (Storage): 10% to 90% RH (non-condensing)
Regulatory Compliance FCC Part 15 Class B
EN 55032
EN 55035
RoHS/REACH
EMC (Australia)
EMC (Canada)
EMC (UKCA)
Prop65
Dimensions (H x W x D) 0.66” x 1.43” x 3.44” (17 mm x 36.3 mm x 87.3 mm)
Weight 3.3 oz (93.62 g)
FG Numbers AMX-UVC1-4K
