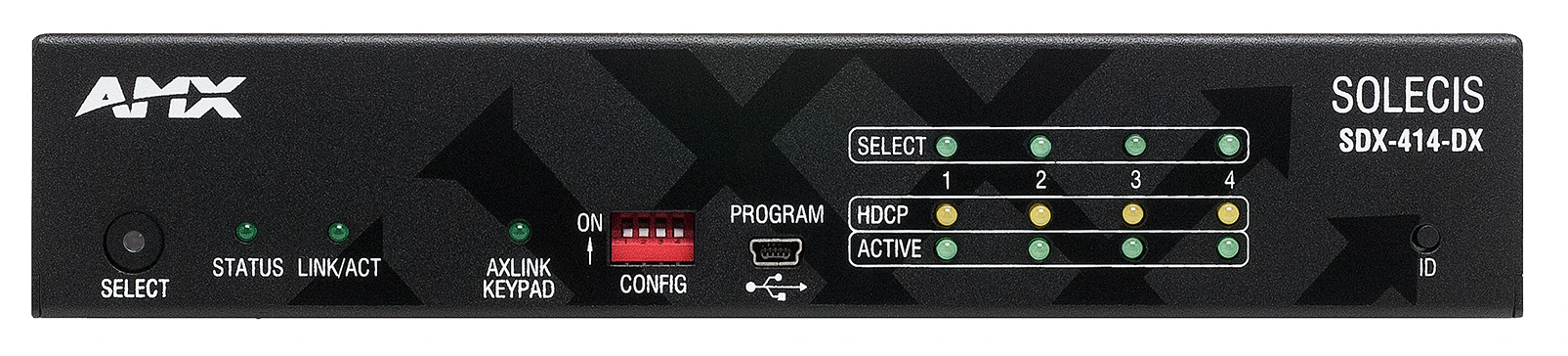

Solecis® 4x1 4K HDMI Digital Switcher with DXLink™ Output

Limited Availability
Larger Images

The Solecis SDX is a family of small digital AV switchers. The 4x1 4K HDMI Solecis Digital Switcher is a 4K and Ultra High Definition (UHD) capable solution that provides four user connection points and includes simplified local control which routes the selected signal to both a DXLink and HDMI output. This provides a simple, low cost solution that combines a DXLink Transmitter and digital switcher into a single small form factor device that is commonly used at a table.

Common Applications

Solecis Digital Switchers are ideal for use in huddle spaces or small classrooms to provide simple switching for multiple sources. In larger rooms with multiple work spaces, a Solecis at each table or desk allows users to share content with the work group or the entire room. In even larger integrated environments Solecis digital switchers can provide easy to use source point switching and distance transmission over DXLink to an Enova DVX or DGX for hub-style building or campus-wide distribution.


  Version Language Size Uploaded
file type icon Data Sheet
updated: Jan 11
    354 KB Jan 11
file type icon SDX-414-DX Quickstart Guide
updated: Jan 12
    171 KB Jan 12
file type icon Instruction Manual - Solecis Digital Switchers
updated: Mar 27
    1.2 MB Mar 27
CAD Drawings
file type icon Pictorial Drawing - SDX-414-DX Solecis 4x1 4K HDMI Digital Switcher with DXLink Output (DWG)
updated: Oct 22
    627 KB Oct 22
file type icon Pictorial Drawing - SDX-414-DX Solecis 4x1 4K HDMI Digital Switcher with DXLink Output (DXF)
updated: Oct 22
    1.97 MB Oct 22
file type icon Pictorial Drawing - SDX-414-DX Solecis 4x1 4K HDMI Digital Switcher with DXLink Output (PDF)
updated: Oct 22
    172 KB Oct 22
Bim Objects
file type icon SDX-414-DX - BIM Object
updated: Aug 12
    Aug 12
platform icon Solecis 4K Digital Switcher Firmware
version 2.1.35, updated: Mar 12
2.1.35     640 KB Mar 12
Quick Start Guides
file type icon Quick Start Guide - SDX-414-DX Solecis 4K HDMI Digital Switcher
updated: Mar 27
    153 KB Mar 27
file type icon Using SDI with the Enova DGX & DVX
updated: Oct 23
    484 KB Oct 23
file type icon Cabling for Success with DXLink
updated: Oct 23
    1.6 MB Oct 23
file type icon AMX AV/IT Administrator's Guide
updated: Oct 23
    2.61 MB Oct 23
Safety Sheets
file type icon Safety Instructions - Solecis Digital Switchers
updated: Mar 27
    83.9 KB Mar 27
Product Guides
file type icon DXLink Compatibility Tool
updated: Apr 15
    Apr 15

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.


  • 4K and Ultra High Definition (UHD) Support – Experience high-quality video resolution for 4K devices
  • Multiple Video, Audio and Ethernet Connections – All the connections you need at the conference table including audio, video, control and network access
  • Switch Inputs Without the Need for a Central Controller – Provides low cost solution for huddle spaces and classrooms
  • Works with HydraPort Single Button or Keypad Modules – Provides an elegant installation in a table or lectern
  • Built-in Support for AxLink Keypads – Forwards keypad commands to a central controller over Ethernet eliminating the need for a separate AxLink cable run


Audio Video Switching 4x1 (dual) audio/video switching, any of 4 inputs can be routed to the HDMI and DXLink output simultaneously
Video Inputs (4) HDMI; supports HDMI/HDCP
Video Outputs (1) HDMI; supports HDMI/HDCP, (1) DXLink; supports digital video, audio, Ethernet, and bi-directional control
4K Resolution Support 3840 x 2160p @ 24/25/30 Hz, 4096 x 2160p @ 24/25/30 Hz, 3840 x 2160p @ 60 Hz, 4:2:0, 4096 x 2160p @ 60 Hz, 4:2:0
Audio Format Support Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM; Dolby Digital and DTS support up to 48kHz, 5.1 channels
Audio Inputs (4) HDMI connections support digital audio
AxLink Keypad Port (1), 4-pin 3.5 mm captive-wire connector, provides data and power to up to 2 external AxLink Keypads
Ethernet Connections (2) RJ-45, 10/100 Port provides TCP/IP communication; an Auto MDI/MDI-X enabled port which allows use of either straight-through or crossover Ethernet cables. The Ethernet Port LEDs show communication activity, connection status, speeds and mode info
Dimensions 1 11/16" x 8 3/4" x 6 7/8" (42.16 mm x 222.25 mm x 175.92 mm)
Compatible AMX Enova DVX/DGX and DXLink Products Enova DGX 800/1600/3200/6400 Digital Media Switchers with DGX-I-DXL-4K DGX DXLink Twisted Pair 4K Input Board installed DX-RX-4K, DXLink 4K HDMI Receiver Module as a point-to-point solution
MyTurn Source Selection Use in conjunction with MyTurn Source Selector Buttons installed onto HDMI/VGA cables at a source device and a MyTurn Source Selector Receiver that triggers switching. A HydraPort 2-Button Keypad Module can trigger a switch for multiple connections.
FG Numbers FG1010-314
