AVB-VSTYLE-SURFACE-MNT

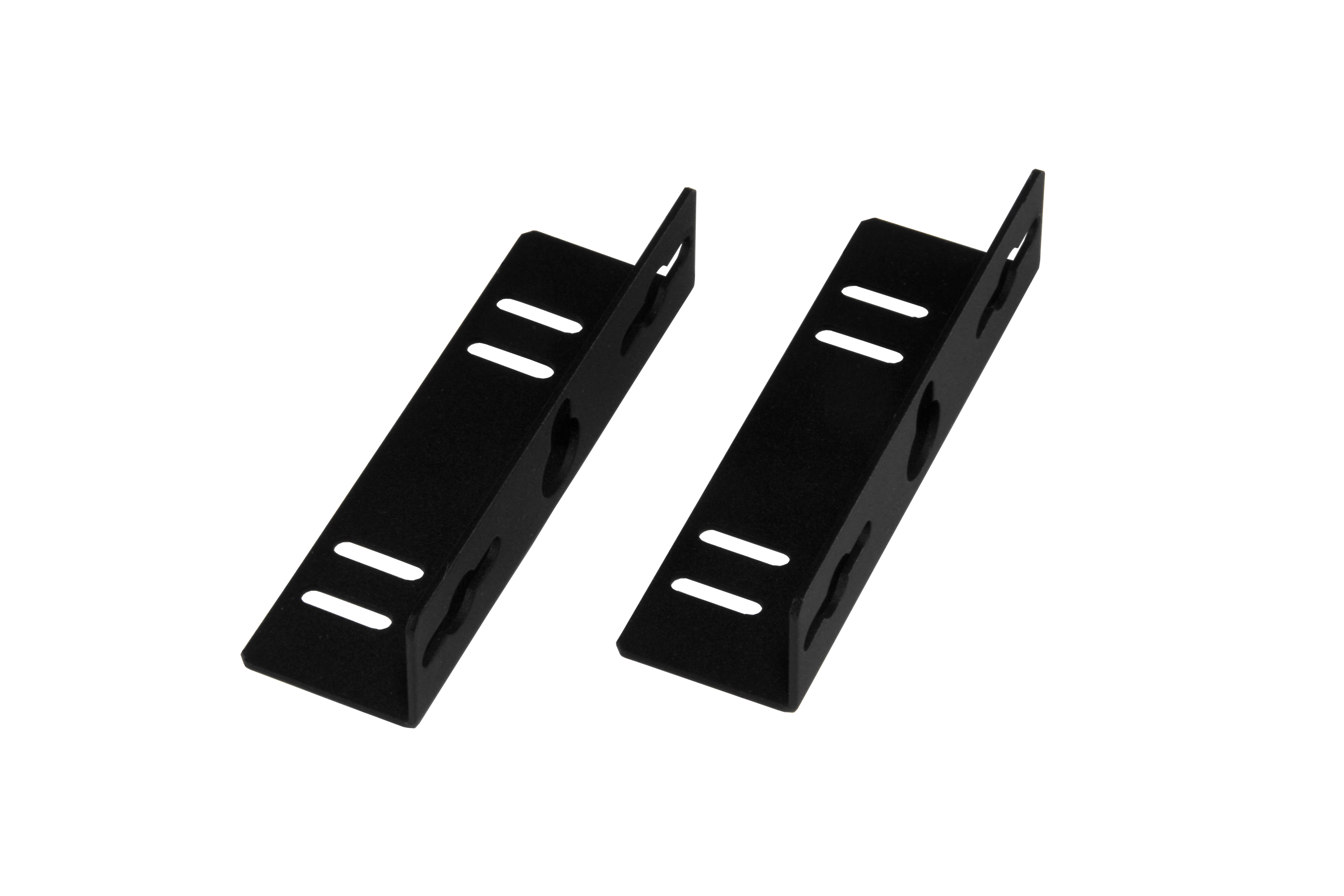

V Style Single Module Surface Mount Brackets

Larger Images

The V Style Single Module Surface Mount Brackets provides secure mounting to flat surfaces. L bracket shape attaches to pre-existing holes on module. Take advantage of the flexible architecture of stand-alone modules with a secure and professional installation.

  • Designed for use with V Style Transmitter / Receiver, Converter and DA modules
  • Mount a single module to the wall, under a desk etc.
  • Bracket screws securely into place on each side of a module (includes screws)
  • Durable powder coat finished metal

Downloads

  Version Language Size Uploaded
Manuals
Quick Start Guide - Module Mounting V Style     510 KB Jul 09, 2018
CAD Drawings
Pictorial Drawing - AVB-VSTYLE-SURFACE-MNT, V Style Module Surface Mount (PDF)     141 KB Jul 09, 2018
Pictorial Drawing - AVB-VSTYLE-SURFACE-MNT, V Style Module Surface Mount (DWG)     133 KB Jul 09, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

FG Numbers FG1010-722

AVB-VSTYLE-SURFACE-MNT

V Style Single Module Surface Mount Brackets
