7x1 4K60 Presentation Switcher

Larger Images

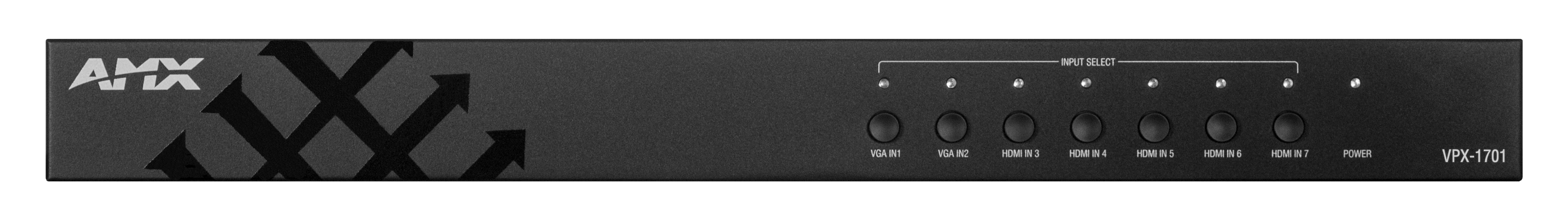

The AMX VPX-1701 is a cost effective 7x1 presentation switcher that targets small to mid-sized conference rooms and classrooms. The VPX-1701 supports resolutions up to 4K60 4:4:4, and offers HDCP 2.2 compatibility to support the most current sources and displays.

The VPX-1701 includes 5 HDMI inputs and 2 VGA inputs. The VPX Series switchers include built-in scaling, allowing automatic scaling of signals to match the ideal resolution of the display. In addition to the HDMI output, there is also a mirrored HDBaseT output for use with the DXL-RX-4k60 to bring switched video and audio from the table to the display, and also brings USB 2.0 signals from an AMX Acendo Vibe conferencing soundbar or other USB 2.0-based camera/speaker devices back to the table for use by visiting laptops. Extracted audio output with volume control is also available, providing an option to feed powered speakers or an amplified soundbar near the display.

There are a variety of options to control the VPX-1701 as well. Front panel controls are available, as is contact closure for use with AMX MyTurn Source Selector Buttons. The VPX-1701 is also NetLinx Native, allowing simplified integration with AMX automation systems.


The AMX VPX-1701 is ideal for table mounting in conference rooms or for use in flipped classroom environments.


  Version Language Size Uploaded
Instruction Manual - VPX-1701
updated: Jun 17, 2020
    2.72 MB Jun 17, 2020
Bim Objects
VPX-1701 - BIM Object
updated: Aug 12, 2019
    Aug 12, 2019
Data Sheets
VPX-1701 Datasheet
updated: Jun 06, 2018
    314 KB Jun 06, 2018
Quick Start Guides
Quick Start Guide – VPX-1701
version B, updated: Dec 17, 2018
  1.86 MB Dec 17, 2018
VPX-1701 IECEE CB Test Certificate
updated: May 28, 2020
    447 KB May 28, 2020
    668 KB May 28, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.


  • 4K60 4:4:4 Support – Experience pixel-for-pixel video reproduction of 4K60 source video with full 4:4:4 color space.
  • HDCP 2.2 Support– Support the latest source devices.
  • Mirrored HDBaseT Outputs – Provides simultaneous support to the local HDMI output and to compatible receiving devices.
  • USB 2.0 Distribution over HDBaseT – Connect to USB peripherals, such as an AMX Acendo Vibe, mounted near the display.
  • Front Panel Control – Simple push-button switching.
  • Audio Output Extraction – Including volume control to feed amplified speakers.
  • Contact Closure – Use with AMX MyTurn cable-mounted source selector buttons to easily switch sources between connected devices.
  • NetLinx Native – Easy integration with AMX automation systems.
  • Web pages – Provides simple user interface for setup and configuration.
