DGX-AIE

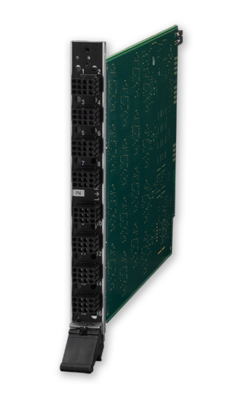

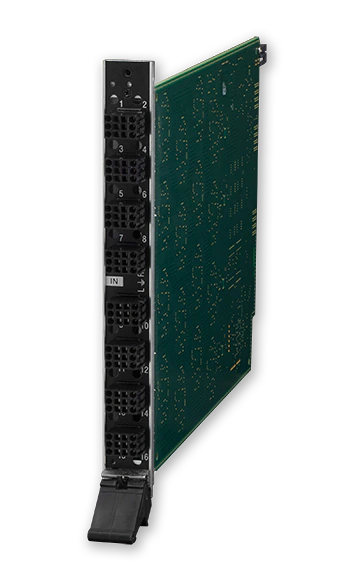

Enova® DGX Audio Insert / Extract Board

Larger Images

The DGX-AIE is an audio insert / extract board for the Enova DGX 8, 16, 32 and Enova DGX 64. The board provides insert or extract access to the first 16 video input or output positions. The Enova DGX 8, 16 and Enova DGX 32 enclosures both support one audio insert/extract board on the input side and one on the output side. The Enova DGX 64 supports 4 audio insert / extract boards on the input side and four on the output side. The audio insert/extract board simplifies system design by allowing audio from a source located near the Enova DGX to be plugged directly into the system. This can dramatically reduce the overall cost of the system by eliminating the need for additional Transmitters or Receivers. Extract embedded audio and send to a separate audio system to be distributed throughout an environment.

Common Applications

The Enova DGX Audio Insert / Extract Board is ideal for applications when local sources such as computers with analog audio outputs are plugged directly into the Enova DGX. Inserted audio can be embedded onto any Enova DGX output. The board also allows de-embed audio from Enova DGX HDMI inputs to be sent to a separate audio system.

Configuration Tool

Downloads

  Version Language Size Uploaded
Data Sheet
updated: Jul 09, 2018
    288 KB Jul 09, 2018
Comparison Chart
updated: Jul 09, 2018
    68.6 KB Jul 09, 2018
Manuals
Instruction Manual - Enova DGX 8, 16, 32, 64 Digital Media Switchers
updated: Mar 26, 2018
    16.4 MB Mar 26, 2018
TSG Enova DGX Board Repalcement Rev N
updated: Jul 16, 2018
    523 KB Jul 16, 2018
Instructions - Enova DGX I/O Board and Endpoint Compatibility
updated: Mar 27, 2018
    117 KB Mar 27, 2018
Certifications
Enova DGX 100 Series CE Declaration of Conformity
updated: Apr 26, 2018
    276 KB Apr 26, 2018
Enova DGX 100 Series CB Test Certificate 60950
updated: Apr 26, 2018
    181 KB Apr 26, 2018
Enova DGX 100 Series CB Test Certificate 62368
updated: Apr 25, 2018
    166 KB Apr 25, 2018
Enova DGX 100 Series Enclosure UL Certificate of Compliance
updated: Apr 25, 2018
    176 KB Apr 25, 2018
Whitepapers
Using SDI with the Enova DGX & DVX
updated: Apr 25, 2018
    484 KB Apr 25, 2018
Quick Start Guides
Quick Start Guide - Enova DGX Audio Insert/Extract Board
updated: Mar 26, 2018
    1.71 MB Mar 26, 2018
Quick Start Guide - Enova DGX 8, 16, 32, 64 Digital Media Switchers
updated: Mar 26, 2018
    419 KB Mar 26, 2018
Configuration Tools
Enova DGX 100 Series Configuration Tool
updated: Jan 11, 2019
    Jan 11, 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • De-embed Audio – Breakaway embedded audio from Enova DGX inputs and send to a separate audio system to distribute throughout an environment
  • Embed Audio – Insert local analog audio into pre-switched digital video paths or post switched digital audio paths depending on audio insert/extract board location
  • Individually Configurable – Each audio access point can be individually configured for insertion or extraction functionality
  • Hot Swappable – Easily add or replace I/O boards at any time after deployment - the system automatically recognizes the new configuration and activates the boards

Specifications

FG Numbers FG1058-705
