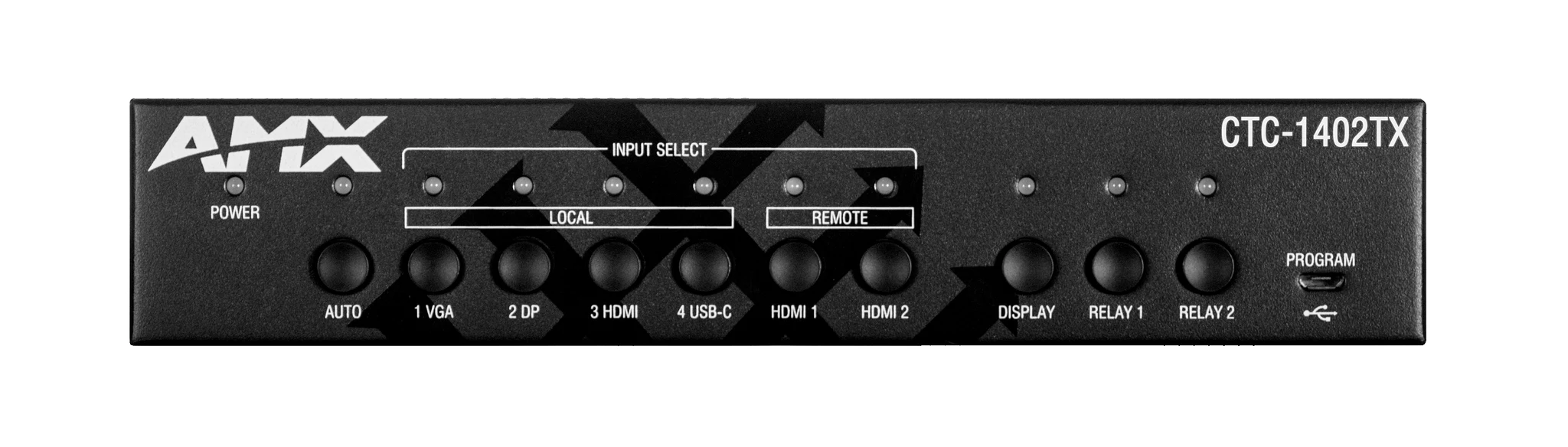

CTC-1402

Conferencing Connectivity and Transport Kit

Larger Images

The AMX CTC-1402 Conferencing Connectivity and Transport Kit is a 4K60 4:4:4 switching and distribution solution that combines switching, scaling and distance transport into a single kit that includes both a transmitter and receiver. The CT Conferencing kit was created to target web conferencing solutions where cameras, microphones, and other USB devices are installed in the room. The solution combines multi-format 4K60 4:4:4 video switching, scaling, and distance transport with USB 2.0 peripheral switching. The solution delivers added value and flexibility to conferencing solutions by providing a single, simple to implement solution that offers switching and connectivity where you need it along with unified control of both the transmitter and receiver—all over a single category cable.

The kit was designed to address the needs of simple conferencing environments, including video switching at the table, transport over category cable, and additional connectivity at the receiver for an AMX Acendo Core or a room PC at the receiver, as well as scaling and output to the display. The addition of USB 2.0 switching and distribution allows dynamic sharing of room USB microphones and cameras between visiting laptops, etc., and permanently installed devices such as an Acendo Core or room PC. This ensures excellent sound and visuals for guests whether they are using installed equipment or bringing their own devices—at a cost effective price.

COMMON APPLICATIONS

The Conferencing Connectivity and Transport Kit is ideal for conferencing applications requiring cost-effective, easy to design and implement video switching with USB 2.0 peripheral switching.

Videos





Downloads

  Version Language Size Uploaded
Manuals
file type icon Instruction Manual - CTC-1402
version 1.0.5, updated: Jun 11, 2021
1.0.5    6.49 MB Jun 11, 2021
Bim Objects
file type icon CTC-1402TX - BIM Object
updated: Aug 12, 2019
    Aug 12, 2019
file type icon CTC-1402RX - BIM Object
updated: Aug 12, 2019
    Aug 12, 2019
Firmware
platform icon CTC-1402 Firmware
version 5.9, updated: Jun 11, 2021
5.9     127 MB Jun 11, 2021
Certifications
file type icon CTC-1402TX CTC-1402RX IECEE CB Certificate
updated: Oct 22, 2020
    462 KB Oct 22, 2020
file type icon CTC-1402TX CTC-1402RX CE Declaration of Conformity
updated: Oct 22, 2020
    689 KB Oct 22, 2020
Product Guides
file type icon DXLink Compatibility Tool
updated: Apr 15, 2021
    Apr 15, 2021
Programming Guides
file type icon Zoom Room Controls – CTC-1402 Configuration Example
version 0.1.5, updated: Sep 09, 2021
0.1.5    132 KB Sep 09, 2021
Data Sheets
file type icon CTC-1402 - Data Sheet
updated: Sep 20, 2019
    320 KB Sep 20, 2019
Quick Start Guides
file type icon Quick Start Guide – CTC-1402
version C, updated: Dec 17, 2020
  165 KB Dec 17, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Transmitter and Receiver Included – Switching where you need it in a single, easy-to-order solution.
  • USB 2.0 Switching and Distribution – Share USB microphones, cameras, and other peripherals between permanently installed devices and guest laptops.
  • 4K60 4:4:4 Support with Built-in Scaling – Experience pixel-for-pixel video reproduction of 4K60 source video with full 4:4:4 color space.
  • HDCP 2.2 Support– Support the latest source devices.
  • Transport Over a Single Category Cable – Simple installation over longer distances.
  • NetLinx Native – Easy integration with AMX automation systems.
  • CEC Control – Control compatible displays over HDMI.
  • Open Control API – IP controllable by any control system – even directly by Zoom Rooms

Specifications

Video Inputs CTC-1402TX
(1) HDMI; supports HDMI/HDCP
(1) HD-15 VGA Connector
(1) DisplayPort Connector
(1) USB-C Port; Supports USB 3.0 DisplayPort Alternative Mode Video/HDCP
CTC-1402RX
(2) HDMI; supports HDMI/HDCP
(1) RJ-45; HDBaseT
Video Outputs CTC-1402TX
(1) RJ-45; HDBaseT
CTC-1402RX
(1) HDMI; supports HDMI/HDCP
Video Resolution Support Various up to 4096 x 2160@ 60 Hz - Reference Data Sheet for Specific Resolution Support
Audio Inputs CTC-1402TX
(1) HDMI; Embedded audio on HDMI
(1) 3.5mm Mini-Stereo Jack; Analog Stereo Input
(1) USB-C Port; Supports USB 3.0 DisplayPort Alternative Mode Video/HDCP
CTC-1402RX
(2) HDMI; Embedded audio on HDMI
(1) RJ-45; HDBaseT
Audio Outputs CTC-1402TX
(1) RJ-45; HDBaseT
CTC-1402RX
(1) HDMI; Embedded audio on HDMI
(1) 3-Pin 3.5mm Screw Terminal Connector; Analog Stereo Output
Environmental Temperature (Operating): 32°F (0°C) to 113°F (45°C)
Temperature (Storage): -4°F (-20°C) to 158°F (70°C)
Humidity (Operating): 10% to 90% RH (non-condensing)
Humidity (Storage): 10% to 90% RH (non-condensing)
Thermal Dissipation (Typical): CTC-1402TX – 56.3 BTU/hr; CTC-1402RX – 58 BTU/hr
USB Peripheral Switching All USB Device Connections Switch to USB Host Device Connection associated with active video input selection
Supports 1 USB Hub connected to either TX or RX Device Port
Up to 7 connected USB devices
Not to exceed .5A per USB Device Port
Maximum Supported USB 2.0 Bandwidth - 127Mbps
Dimensions (H x W x D) CTC-1402TX - 1.65” x 8.66” x 5.9” (4.4 x 22 x 15 cm)
CTC-1402RX - 1.65” x 8.66” x 5.9” (4.4 x 22 x 15 cm)
Weight CTC-1402TX - Approx. 2.14 lb. (0.97kg)
CTC-1402RX - Approx. 2.07 lb. (0.94 kg)
FG Numbers FG1010-910
