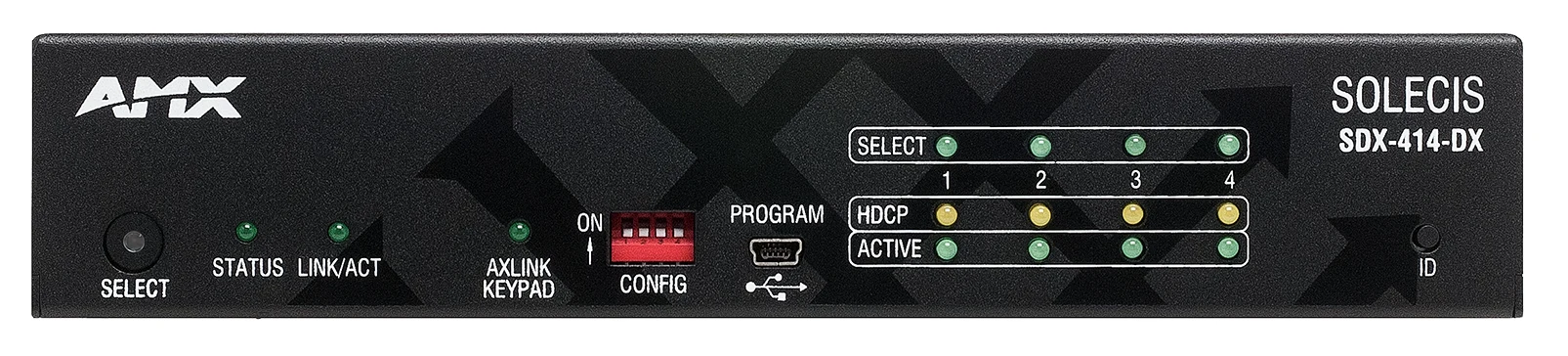

The Solecis SDX is a family of small digital AV switchers. The 4x1 4K HDMI Solecis Digital Switcher is a 4K and Ultra High Definition (UHD) capable solution that provides four user connection points and includes simplified local control which routes the selected signal to both a DXLink and HDMI output. This provides a simple, low cost solution that combines a DXLink Transmitter and digital switcher into a single small form factor device that is commonly used at a table.
Gambar Lebih Besar
Keterangan Lebih Lanjut
Solecis Digital Switchers are ideal for use in huddle spaces or small classrooms to provide simple switching for multiple sources. In larger rooms with multiple work spaces, a Solecis at each table or desk allows users to share content with the work group or the entire room. In even larger integrated environments Solecis digital switchers can provide easy to use source point switching and distance transmission over DXLink to an Enova DVX or DGX for hub-style building or campus-wide distribution.
Unduhan
Dokumen
| Ukuran | |
Data Sheet
diperbarui: Apr 2026
|
354 KB |
|
SDX-414-DX Panduan Memulai Cepat
diperbarui: Apr 2026
|
171 KB |
Manuals
| Ukuran | |
|
|
1,2 MB |
CAD Drawings
| Ukuran | |
| 627 KB | |
| 1,97 MB | |
| 172 KB |
BIM Objects
| Ukuran | |
|
|
Firmware
| Ukuran | |
|
|
640 KB |
Quick Start Guides
| Ukuran | |
|
|
153 KB |
Whitepapers
| Ukuran | |
|
|
484 KB |
|
|
1,6 MB |
Safety Sheets
| Ukuran | |
|
|
83,9 KB |
Product Guides
| Ukuran | |
|
|
Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.
Fitur
- 4K and Ultra High Definition (UHD) Support – Experience high-quality video resolution for 4K devices
- Multiple Video, Audio and Ethernet Connections – All the connections you need at the conference table including audio, video, control and network access
- Switch Inputs Without the Need for a Central Controller – Provides low cost solution for huddle spaces and classrooms
- Works with HydraPort Single Button or Keypad Modules – Provides an elegant installation in a table or lectern
- Built-in Support for AxLink Keypads – Forwards keypad commands to a central controller over Ethernet eliminating the need for a separate AxLink cable run
Spesifikasi
| Audio Video Switching | 4x1 (dual) audio/video switching, any of 4 inputs can be routed to the HDMI and DXLink output simultaneously |
| Video Inputs | (4) HDMI; supports HDMI/HDCP |
| Video Outputs | (1) HDMI; supports HDMI/HDCP, (1) DXLink; supports digital video, audio, Ethernet, and bi-directional control |
| 4K Resolution Support | 3840 x 2160p @ 24/25/30 Hz, 4096 x 2160p @ 24/25/30 Hz, 3840 x 2160p @ 60 Hz, 4:2:0, 4096 x 2160p @ 60 Hz, 4:2:0 |
| Audio Format Support | Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM; Dolby Digital and DTS support up to 48kHz, 5.1 channels |
| Audio Inputs | (4) HDMI connections support digital audio |
| AxLink Keypad Port | (1), 4-pin 3.5 mm captive-wire connector, provides data and power to up to 2 external AxLink Keypads |
| Ethernet Connections | (2) RJ-45, 10/100 Port provides TCP/IP communication; an Auto MDI/MDI-X enabled port which allows use of either straight-through or crossover Ethernet cables. The Ethernet Port LEDs show communication activity, connection status, speeds and mode info |
| Dimensions | 1 11/16" x 8 3/4" x 6 7/8" (42.16 mm x 222.25 mm x 175.92 mm) |
| Compatible AMX Enova DVX/DGX and DXLink Products | Enova DGX 800/1600/3200/6400 Digital Media Switchers with DGX-I-DXL-4K DGX DXLink Twisted Pair 4K Input Board installed DX-RX-4K, DXLink 4K HDMI Receiver Module as a point-to-point solution |
| MyTurn Source Selection | Use in conjunction with MyTurn Source Selector Buttons installed onto HDMI/VGA cables at a source device and a MyTurn Source Selector Receiver that triggers switching. A HydraPort 2-Button Keypad Module can trigger a switch for multiple connections. |
| FG Numbers | FG1010-314 |
recommended_accessories
-
PSR5.4
Catu Daya 12 VDC, 5.4 A dengan Konektor Phoenix 3.5 mm dan Sekrup Penahan -
AVB-VSTYLE-SURFACE-MNT
Braket Pemasangan Permukaan Modul Tunggal Gaya V -
AVB-VSTYLE-POLE-MNT
Kit Pemasangan Tiang Modul Tunggal Gaya V -
NMX-VRK
Rak Pemasangan Gaya V, Kedalaman 12"
Dukungan KonsultanNOTE: The most current and complete specifications for this product are found in the data sheet. Specifications are subject to change.
SDX-414-DX
Ketersediaan terbatas
Solecis® 4x1 4K HDMI Digital Switcher with DXLink™ Output
Juga tersedia dari distributor
