UVC1-4K

4K HDMI to USB Capture Device

较大的图像

The UVC1-4K captures content from HDMI video sources for seamless importation into PCs and video conferencing software such as Zoom or Teams via USB. It supports HDMI video input resolutions up to 4096×2160p@60 4:4:4, HDR, and 10-bit per channel Deep Color and outputs resolutions up to 3840×2160p@30fps (NV12, I420) or 1920×1080p@60fps (YUY2, P010).

The UVC1-4K solves the issue of PCs that lack HDMI or other video inputs for importing content from video cameras, document cameras, DVD players or other traditional video sources. It also serves as an ideal solution for users of the AMX TPC-TPI-PRO professional in-room presentation management system, offering the ability to preview and control their presentation and environment from a single, third-party touch panel interface.

  • ZOOM AND TEAMS COMPATIBLE
    Import video cameras, document cameras, DVD players or other traditional video sources into Zoom, Teams, or other UVC applications.

  • PICTURE PERFECT VIDEO CAPTURE
    Allows end users to realize the potential of their source devices by capturing 4K resolutions up to 4096×2160p@60 4:4:4.

  • HDR AND DEEP COLOR SUPPORT
    The UVC1- 4K supports HDR and 10-bit per channel Deep Color for rich, more realistic video.

  • POPULAR OS PLATFORM SUPPORT
    To ensure wide-ranging interoperability with a variety of PCs, both Windows and macOS are fully supported.

featured content

ZOOM AND TEAMS COMPATIBLE
Import video cameras, document cameras, DVD players or other traditional video sources into Zoom, Teams, or other UVC applications.

featured content

PICTURE PERFECT VIDEO CAPTURE
Allows end users to realize the potential of their source devices by capturing 4K resolutions up to 4096×2160p@60 4:4:4.

featured content

HDR AND DEEP COLOR SUPPORT
The UVC1- 4K supports HDR and 10-bit per channel Deep Color for rich, more realistic video.

featured content

POPULAR OS PLATFORM SUPPORT
To ensure wide-ranging interoperability with a variety of PCs, both Windows and macOS are fully supported.

更多详情

The UVC1- 4K is ideal for colleges and universities leveraging software video conferencing or software lecture recording solutions for distance learning or when using TPC-TPI-PRO to preview and control in-room video. It is also a great fit for corporate applications where software video conferencing is deployed.

Videos





下载

  Version Language Size Uploaded
CAD Drawings
file type icon Pictorial Drawing (PDF) – UVC1-4K
updated: 8月11日
    311.6 KB 8月11日
file type icon Pictorial Drawing (DWG) – UVC1-4K
updated: 8月11日
    311.6 KB 8月11日
file type icon Pictorial Drawing (DXF) – UVC1-4K
updated: 8月11日
    1.1 MB 8月11日
Software
platform icon UVC1-4K Configuration Tool
version 1.0.0.1, updated: 8月04日
1.0.0.1     36.7 MB 8月04日
Certifications
file type icon CE Declaration of Conformity - UVC1-4K
updated: 8月25日
    649.0 KB 8月25日
Quick Start Guides
file type icon Quick Start Guide - UVC1-4K
en updated: 7月16日
  en  861.0 KB 7月16日
Data Sheets
file type icon Data Sheet - UVC1-4K
updated: 8月04日
    307.7 KB 8月04日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

特点

  • HDMI 2.0 Support - HDMI video input supports resolutions up to 4096×2160p@60 4:4:4, HDR, and 10-bit per channel Deep Color
  • USB 3.0 Capture - UVC video output supports resolutions up to 3840×2160p@30fps (NV12, I420) or 1920×1080p@60fps (YUY2, P010)
  • Audio Input Embedded - Audio input support includes analog stereo audio and HDMI embedded audio
  • Support for Popular OS Platforms - Windows 10 (64-bit), macOS (10.12 or newer)
  • UVC Software Compatible - Supports Zoom, Teams, WebEx, Skype, Slack, Discord, BlueJeans, GoToMeeting, VLC, and more.
  • Ideal TPC-TPI-Pro Companion - Works with AMX TPC-TPI-PRO professional in-room presentation management system to enable users to preview and control their presentation and environment from a single, third-party touch panel interface

性能

视频输入 (1) HDMI 2.0
视频输出 (1) USB 3.0; supports UVC 1.1
视频输入分辨率 Up to 4096×2160p@60fps (4:4:4 10-Bit HDR)
UVC Output Resolution 4096×2160p@60/50fps and 3840×2160p@60/50fps
inputs will be output at 3840×2160p@30fps
(NV12, I420) or 1920×1080p@60fps (YUY2, P010)
For all inputs below 3840×2160p@30fps, UVC1-4K outputs will match the input resolution
输入端口 HDMI Embedded Audio / 3.5mm Analog Stereo Audio

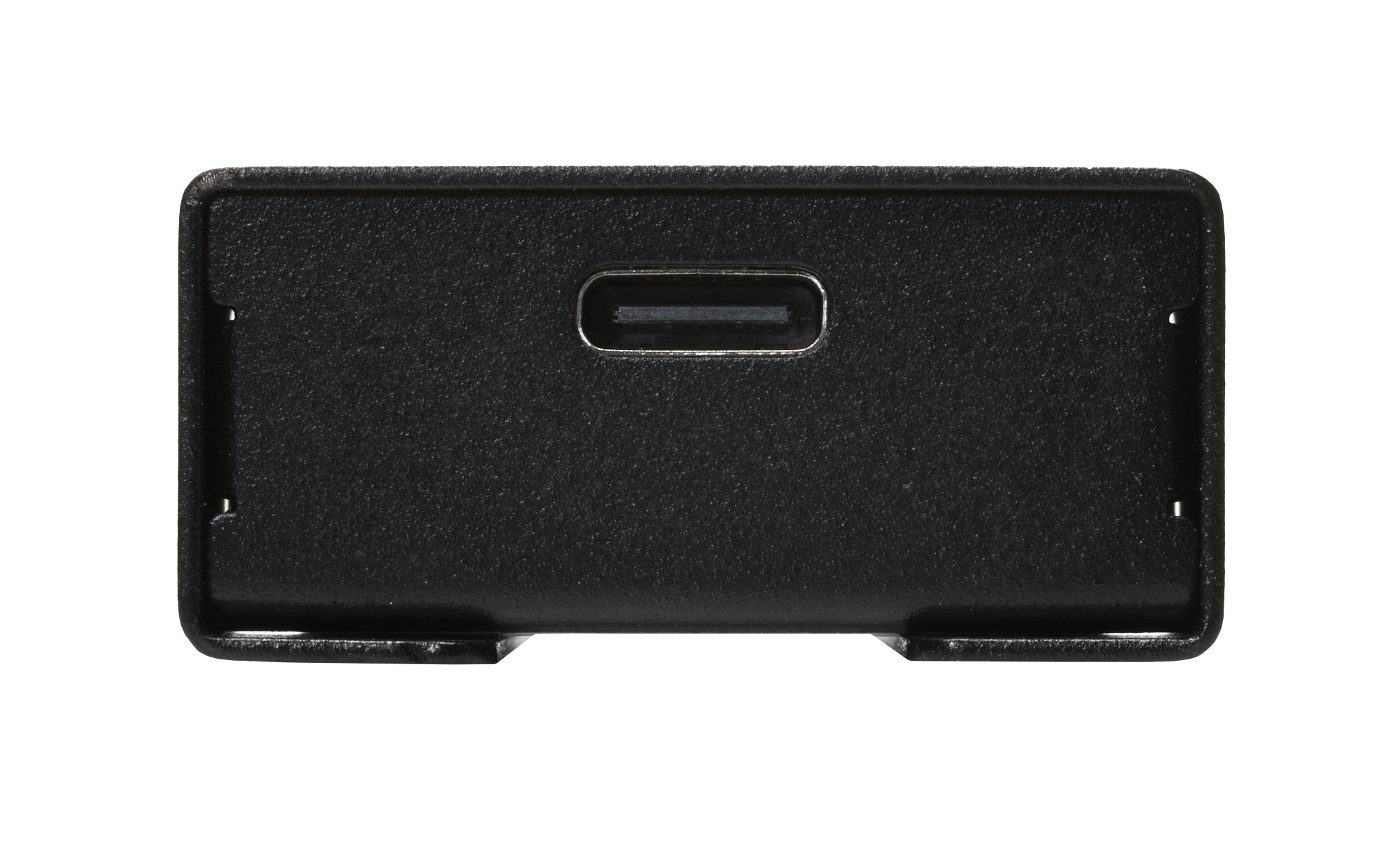

Ports HDMI Input: (1) HDMI Type A Socket; Analog Stereo Input: (1) 3.5 mm TRS audio jack; USB 3.0: (1) USB Type C Socket
环境 Temperature (Operating): 32°F (0°C) to 104°F (40°C)
Temperature (Storage): -4°F (-20°C) to 158°F (70°C)
Humidity (Operating): 10% to 90% RH (non-condensing)
Humidity (Storage): 10% to 90% RH (non-condensing)
Regulatory Compliance FCC Part 15 Class B
EN 55032
EN 55035
RoHS/REACH
EMC (Australia)
EMC (Canada)
EMC (UKCA)
Prop65
尺寸(高 x 宽 x 厚) 0.66” x 1.43” x 3.44” (17 mm x 36.3 mm x 87.3 mm)
重量 3.3 oz (93.62 g)
FG Numbers AMX-UVC1-4K
