HPX-1200

12 Module Connection Port

Larger Images

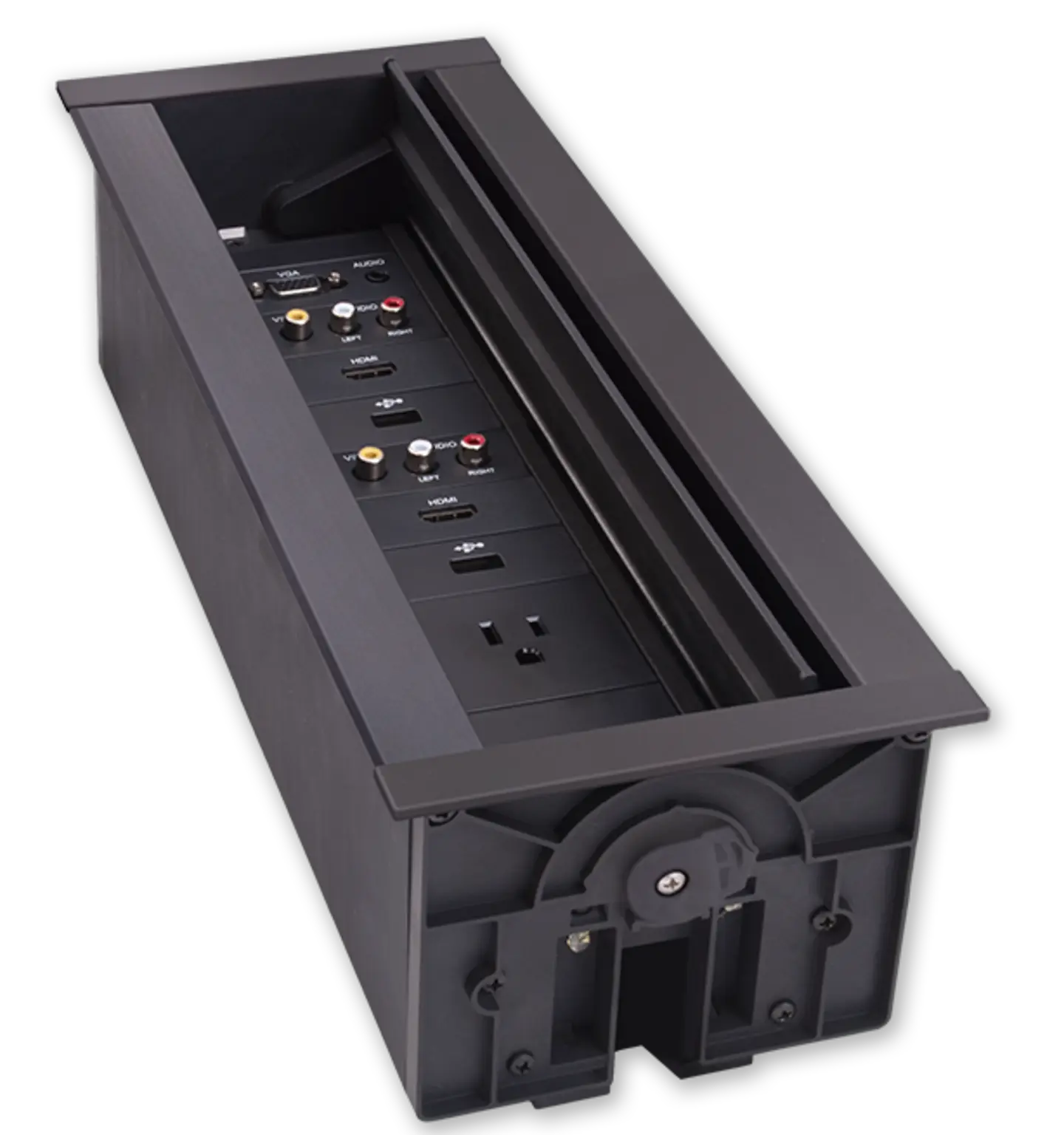

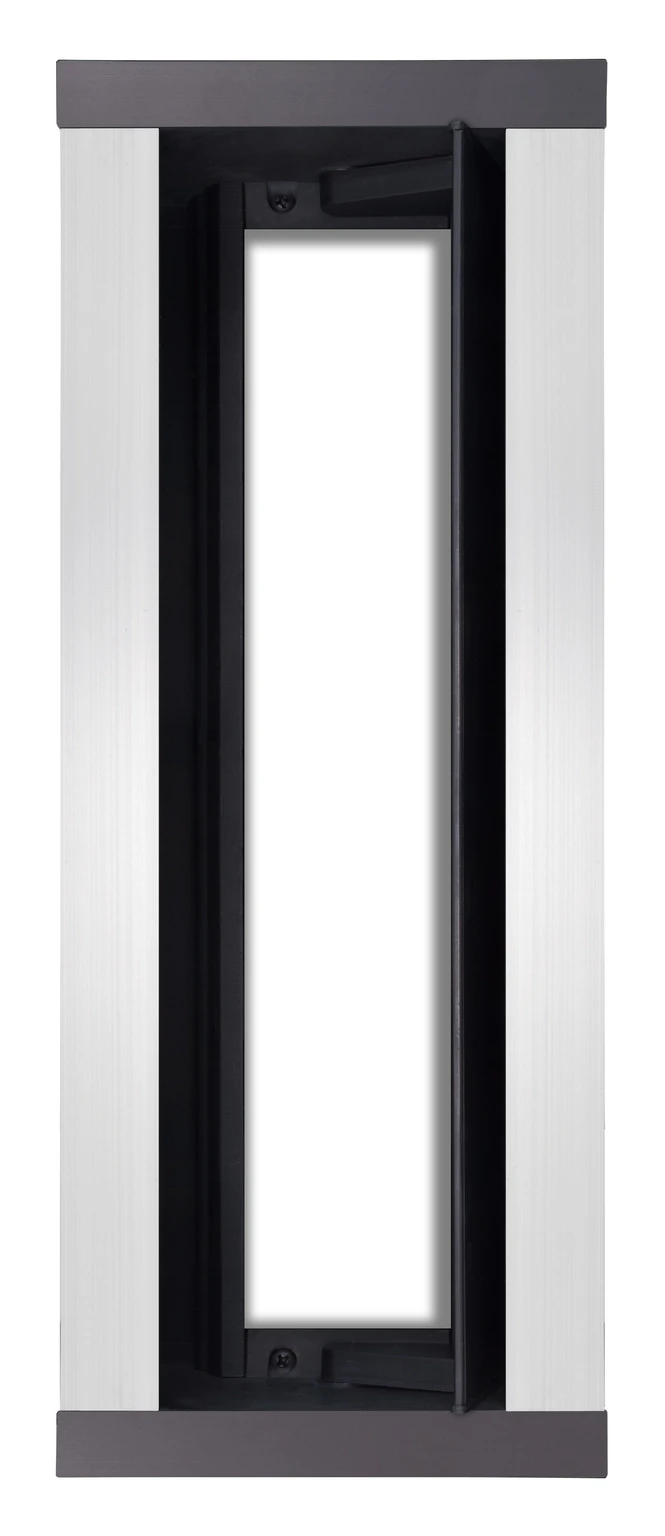

The HPX-1200 / HydraPort® 12 Module Connection Port is a modular AV table box for connecting mobile devices to projectors or displays in a conference room or classroom. This sleek, flush-mount table box is typically installed in a conference room or classroom table, featuring a uniquely-designed lid that conveniently opens in both directions to provide a clean, unobtrusive look.

No matter how you bring in your content - via HDMI, VGA, USB and other popular formats - you have access to the cable or connection you need, whenever you need it. The HydraPort Architectural Connectivity System uses simple, interchangeable modules to put together the exact future-proof configuration you need today and tomorrow.

Common Applications

  • With 12 available modules, the HPX-1200 is perfect for rooms that need the capability to connect many different device types to the AV system, or to provide AC power to several different devices
  • The HPX-1200 is designed for any conference room, classroom or boardroom that requires extensive connection capabilities with an unobtrusive style
  • With the capability to accommodate AMX Metreau Keypads, the HPX-1200 is ideal for large rooms that require an additional control interface at the table or lectern, or for small huddle spaces where the Metreau Keypads are the primary control interface

Configuration Tool

Downloads

  Version Language Size Uploaded
Data Sheet
updated: Jul 06, 2018
    1 MB Jul 06, 2018
Brochures
HydraPort Product Brochure
updated: Jul 17, 2018
    1.24 MB Jul 17, 2018
CAD Drawings
Mounting Specification - HPX-600, 900, 1200 Chassis (DXF)
updated: Apr 06, 2018
    963 KB Apr 06, 2018
Mounting Specification - HPX-600, 900, 1200 Chassis (PDF)
updated: Oct 09, 2018
    295 KB Oct 09, 2018
Pictorial Drawing - HPX-600, 900, 1200 Chassis (DWG)
updated: Apr 06, 2018
    199 KB Apr 06, 2018
Pictorial Drawing - HPX-600, 900, 1200 Chassis (DXF)
updated: Apr 06, 2018
    861 KB Apr 06, 2018
Pictorial Drawing - HPX-600, 900, 1200 Chassis (PDF)
updated: Apr 06, 2018
    297 KB Apr 06, 2018
Bim Objects
HPX-600 | HPX-900 | HPX-1200 - BIM Objects
updated: Aug 12, 2019
    Aug 12, 2019
Quick Start Guides
Quick Start Guide - HPX-600/900/1200 Module Connection Ports
updated: Mar 26, 2018
    297 KB Mar 26, 2018
Quick Start Guide - HPX-AC-TMPLT HPX-600/900/1200 Installation Router Guides
updated: Mar 26, 2018
    273 KB Mar 26, 2018
Product Guides
HydraPort Product Guide
updated: Apr 12, 2018
    355 KB Apr 12, 2018
Application Guides
AMX and the Perfect Meeting Room
updated: Apr 12, 2018
    426 KB Apr 12, 2018
Safety Sheets
Safety Instructions - HydraPort
version B, updated: Jul 13, 2018
  90.8 KB Jul 13, 2018
Configuration Tools
HydraPort Connection Preview Configuration Tool
updated: Jan 11, 2019
    Jan 11, 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Future-Proof Modular Design – Features an assembly with the flexibility to change the modules to meet current and future needs
  • Elegant and Unobtrusive – Flush-mount design installs cleanly into a lectern or table and the lid conveniently opens in both directions providing a sleek look
  • No Electrician Required – HydraPort power modules can be connected directly to a wall or floor outlet eliminating the need for an electrician
  • Control The Room – Add Metreau® or Novara® Keypad modules to control AV devices, lighting or shades as well as to initiate pre-programmed events
  • Anodized Aluminum – These stylish, low profile connectivity ports have the same contemporary brushed aluminum enclosure as the higher-end office furniture manufacturers at the same price as most competitive painted metal models

Specifications

Number of Modules Supported 12 total single-space modules. See Data Sheet for details.
Mounting Surface Footprint 14 3/32" x 5 7/16" (358mm x 138mm)
Table Cutout Dimensions 13.54" x 4.84" (344mm x 123mm)
FG Numbers

FG560-03-SL (Brushed Aluminum)
FG560-03-BL (Black Anodized)

Recommended Accessories
