HPX-U400-R-MET-6NE

Metreau® 6-Button Ethernet Keypad Ramp Kit

Larger Images

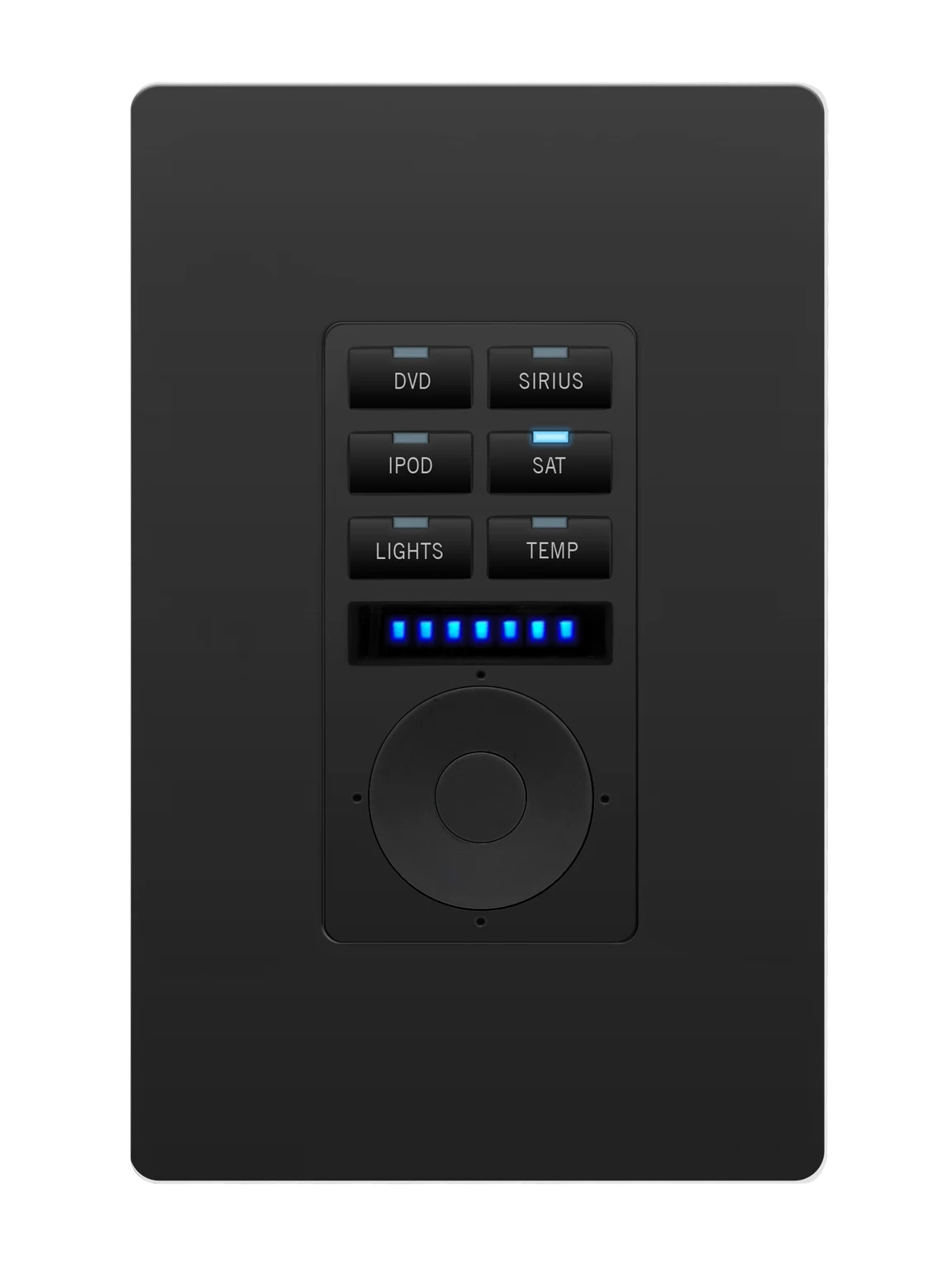

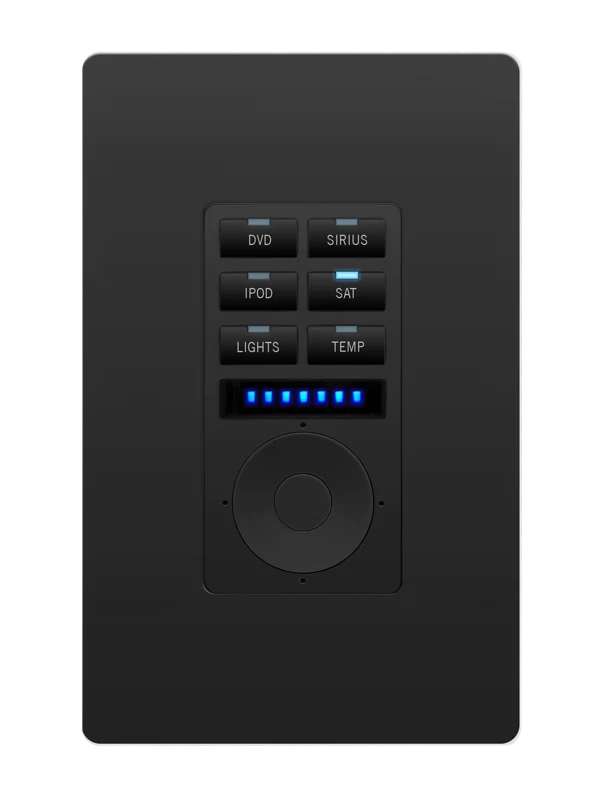

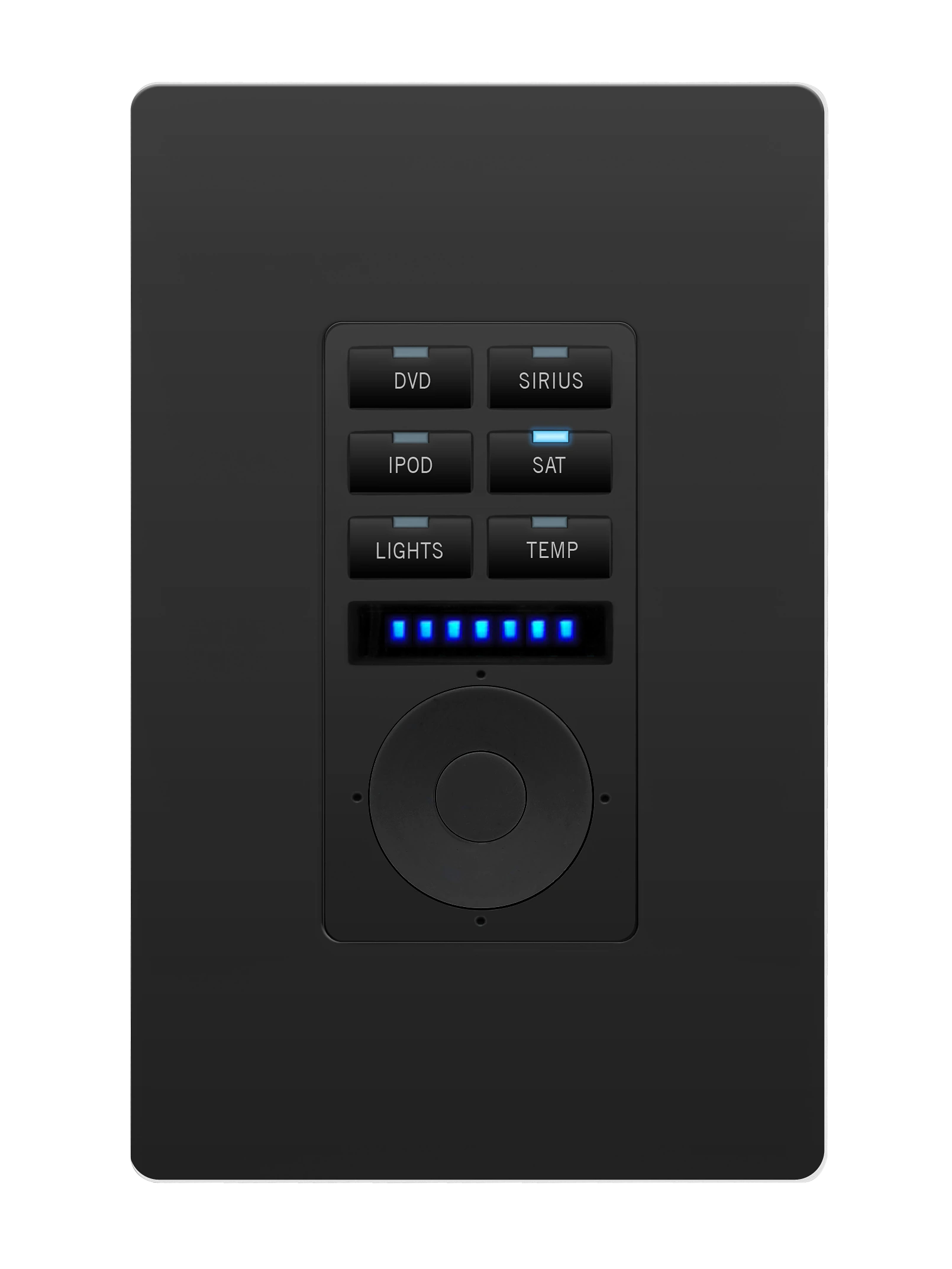

The HPX-U400-R-MET-6NE module is a Metreau 6-Button Ethernet Keypad in a ramped carrier that allows it to be installed into the HydraPort® chassis at an angle to improve usability.

Common Applications

Ideal for boardrooms, conference rooms, meeting rooms or auditoriums where equipment is permanently installed in the room and users must connect to that equipment from a conference table or lectern.

Videos





Configuration Tool

Downloads

  Version Language Size Uploaded
Manuals
file type icon Instruction Manual - Metreau Keypads
updated: Mar 28
    2.57 MB Mar 28
Brochures
file type icon HydraPort Product Brochure
updated: Oct 22
    1.24 MB Oct 22
Data Sheets
file type icon HPX-1200 12 Module Connection Ports (english)
updated: Oct 22
    1 MB Oct 22
file type icon HPX-600 6 Module Connection Ports (german)
updated: Oct 22
    1.5 MB Oct 22
file type icon HPX-600 6 Module Connection Ports (english)
updated: Oct 22
    1010 KB Oct 22
file type icon HPX-900 9 Module Connection Ports (german)
updated: Oct 22
    2 MB Oct 22
file type icon HPX-900 9 Module Connection Ports (english)
updated: Oct 22
    1.05 MB Oct 22
file type icon HPX-1200 12 Module Connection Ports (german)
updated: Oct 22
    1.54 MB Oct 22
Whitepapers
file type icon AMX AV/IT Administrator's Guide
updated: Oct 23
    2.61 MB Oct 23
A&E (Architectural & Engineering) Specifications
file type icon A&E Spec - MET-6NE Metreau 6-Button Ethernet Keypad with Navigation
updated: Jun 28
    56 KB Jun 28
Quick Start Guides
file type icon Quick Start Guide - MET-6NE Metreau 6-Button Ethernet Keypad with Navigation
updated: Mar 28
    198 KB Mar 28
Safety Sheets
file type icon Safety Instructions - HydraPort
version B, updated: Oct 22
  90.8 KB Oct 22
Configuration Tools
file type icon HydraPort Connection Preview Configuration Tool
updated: Mar 23
    Mar 23

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Connects via Standard Protocols (Ethernet) – Simplifies cabling and installation by minimizing cable runs
  • Blue LEDs Glow to Indicate Button Selection – Improves usability by confirming the user's selection
  • Unrivaled Simplicity – Includes navigation wheel for simplified control

Specifications

Dimensions

4 HydraPort Units (See the HPX-600, HPX-900 or HPX-1200 specifications section for an explanation of HydraPort units)

Power
  • PoE: PoE (Power over Ethernet), 802.3af, class 0
  • Power Connector: (1) RJ-45 Ethernet Connector, 10/100
Power Supply External, Required: POE injector or switch, conforming to the 802.3af standard including AMX’s PS-POE-AF-TC (FG423-83), not included
Ethernet Ethernet Connection: (1) RJ-45 Ethernet Connector, 10/100
Environmental
  • Temperature (Operating): 32° to 104° F (0° to 40° C)
  • Humidity (Relative): 5% to 85%, non-condensing
  • Note: Intended for indoor use only
Front Panel Components
  • Pushbuttons available in a variety of field replaceable pre-printed buttons
  • Blue LEDs indicate activity
  • Navigation wheel
  • Light-level feedback
  • Sensor, 38 kHz only; supports standard AMX IR
Rear Panel Components
  • (1) RJ-45 Ethernet Connector, 10/100
  • (2) 8-pin, 0.100” (2.54 mm) IDC-type male header
FG Numbers FG565-11-BL-00
