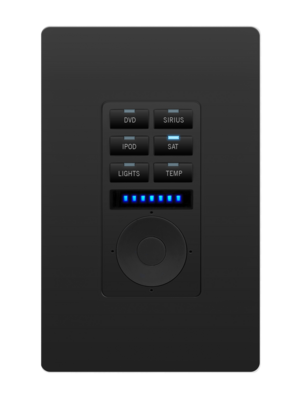

The HPX-U400-R-MET-6NE module is a Metreau 6-Button Ethernet Keypad in a ramped carrier that allows it to be installed into the HydraPort® chassis at an angle to improve usability.
Größere Bilder
Mehr Details
Ideal for boardrooms, conference rooms, meeting rooms or auditoriums where equipment is permanently installed in the room and users must connect to that equipment from a conference table or lectern.
Videos
configuration_tool
Downloads
Manuals
| Größe | |
|
|
2,57 MB |
Quick Start Guides
| Größe | |
|
|
198 KB |
A&E (Architectural & Engineering) Specifications
| Größe | |
|
|
56 KB |
Safety Sheets
| Größe | |
|
|
1,25 MB |
Data Sheets
| Größe | |
|
|
1,02 MB |
Configuration Tools
| Größe | |
|
|
Falls einer der obigen Links zu seltsamen Zeichen in Ihrem Browser führt, klicken Sie bitte mit der rechten Maustaste auf die Datei, um sie auf Ihrem Computer zu speichern.
Eigenschaften
- Connects via Standard Protocols (Ethernet) – Simplifies cabling and installation by minimizing cable runs
- Blue LEDs Glow to Indicate Button Selection – Improves usability by confirming the user's selection
- Unrivaled Simplicity – Includes navigation wheel for simplified control
Spezifikationen
| Dimensions | 4 HydraPort Units (See the HPX-600, HPX-900 or HPX-1200 specifications section for an explanation of HydraPort units) |
| Power |
|
| Power Supply | External, Required: POE injector or switch, conforming to the 802.3af standard including AMX’s PS-POE-AF-TC (FG423-83), not included |
| Ethernet | Ethernet Connection: (1) RJ-45 Ethernet Connector, 10/100 |
| Environmental |
|
| Front Panel Components |
|
| Rear Panel Components |
|
| FG Numbers | FG565-11-BL-00 |
recommended_accessories
-
PS-POE-AF-TC
PoE-Injektor, 802.3AF-konform -
CBL-ETH-FL2
Cat6-Ethernetkabel
