HPX-N102-ETH-R

Cat6 Ethernet Module with Retractable Cable

Larger Images

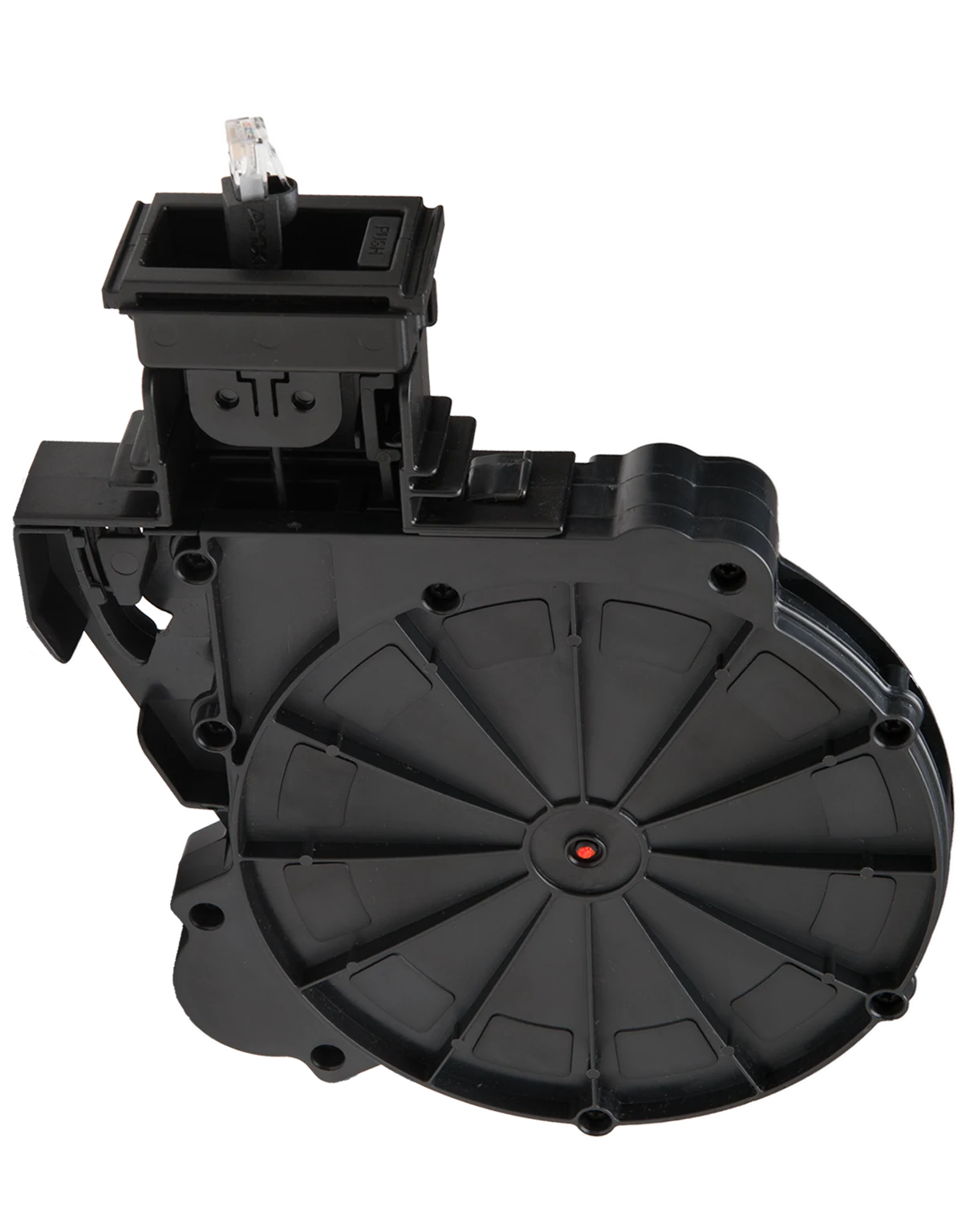

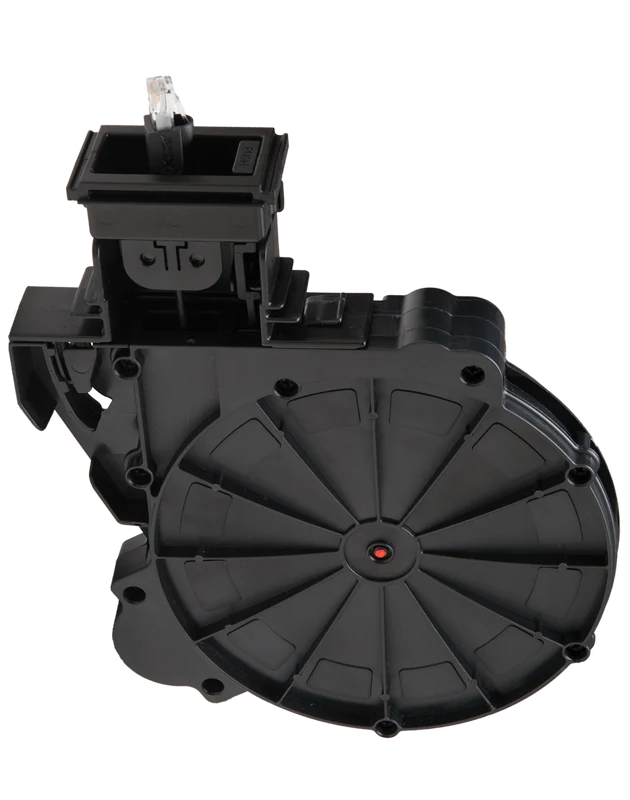

The HydraPort® Category 6 Ethernet Module with Retractable Cable delivers a compact, easy to install solution that organizes and hides cables in virtually any type of conference table, including narrow tables, and those with glass inlay.

Training

Learn important installation, configuration and programming techniques in the following course(s) from Harman Professional University:

  • Getting Started with HydraPort

 For schedules and registration for these and any Harman Professional University courses, visit College of AMX.

Videos





Configuration Tool

Downloads

  Version Language Size Uploaded
Brochures
file type icon HydraPort Product Brochure
updated: Oct 22, 2020
    1.24 MB Oct 22, 2020
CAD Drawings
file type icon Pictorial Drawing - HPX-N102-ETH-R Cat6 Ethernet Module with Retractable Cable (DWG)
updated: Oct 22, 2020
    1.53 MB Oct 22, 2020
file type icon Pictorial Drawing - HPX-N102-ETH-R Cat6 Ethernet Module with Retractable Cable (DXF)
updated: Oct 22, 2020
    3.87 MB Oct 22, 2020
file type icon Pictorial Drawing - HPX-N102-ETH-R Cat6 Ethernet Module with Retractable Cable (PDF)
updated: Oct 22, 2020
    1.06 MB Oct 22, 2020
Data Sheets
file type icon HPX-1200 12 Module Connection Ports (english)
updated: Oct 22, 2020
    1 MB Oct 22, 2020
file type icon HPX-600 6 Module Connection Ports (german)
updated: Oct 22, 2020
    1.5 MB Oct 22, 2020
file type icon HPX-600 6 Module Connection Ports (english)
updated: Oct 22, 2020
    1010 KB Oct 22, 2020
file type icon HPX-900 9 Module Connection Ports (german)
updated: Oct 22, 2020
    2 MB Oct 22, 2020
file type icon HPX-900 9 Module Connection Ports (english)
updated: Oct 22, 2020
    1.05 MB Oct 22, 2020
file type icon HPX-1200 12 Module Connection Ports (german)
updated: Oct 22, 2020
    1.54 MB Oct 22, 2020
Safety Sheets
file type icon Safety Instructions - HydraPort
version B, updated: Oct 22, 2020
  90.8 KB Oct 22, 2020
Quick Start Guides
file type icon Quick Start Guide - HPX-N102-ETH-R Cat6 Ethernet Module with Retractable Cable
version B, updated: Oct 22, 2020
  336 KB Oct 22, 2020
Configuration Tools
file type icon HydraPort Connection Preview Configuration Tool
updated: Mar 23, 2021
    Mar 23, 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • No Assembly, Adjustments or Terminations – Module installs quickly and easily with no special mounting

Specifications

Dimensions

1 1/2 HydraPort Units (See the HPX-600, HPX-900 or HPX-1200 specifications section for an explanation of HydraPort units)

Weight Approximately 1lb (0.46 Kg)
Integrated Cable
  • Ethernet Cat6 Retractable Cable
  • Pullout Length: 5 ft (1.52m)
  • Pigtail: 5 ft (1.52m)
  • Pigtail Connector: RJ-45 Male
  • Data Rate: 1000Base-T (Gigabit Ethernet)
Front Panel Components Pull-Out Connector: RJ-45 Male
Long-Term Reliability Tested to 10,000 pull and release cycles
Recommended Accessories CBL-ETH-FL2, Cat6 Ethernet Flat Cable (FG10-2194-16)
FG Numbers FG552-34
