HPX-U400-R-MET-13E

Metreau® 13-Button Ethernet Keypad Ramp Kit

Limited Availability
Larger Images

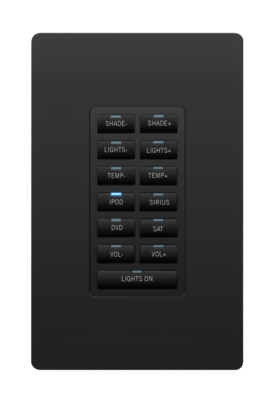

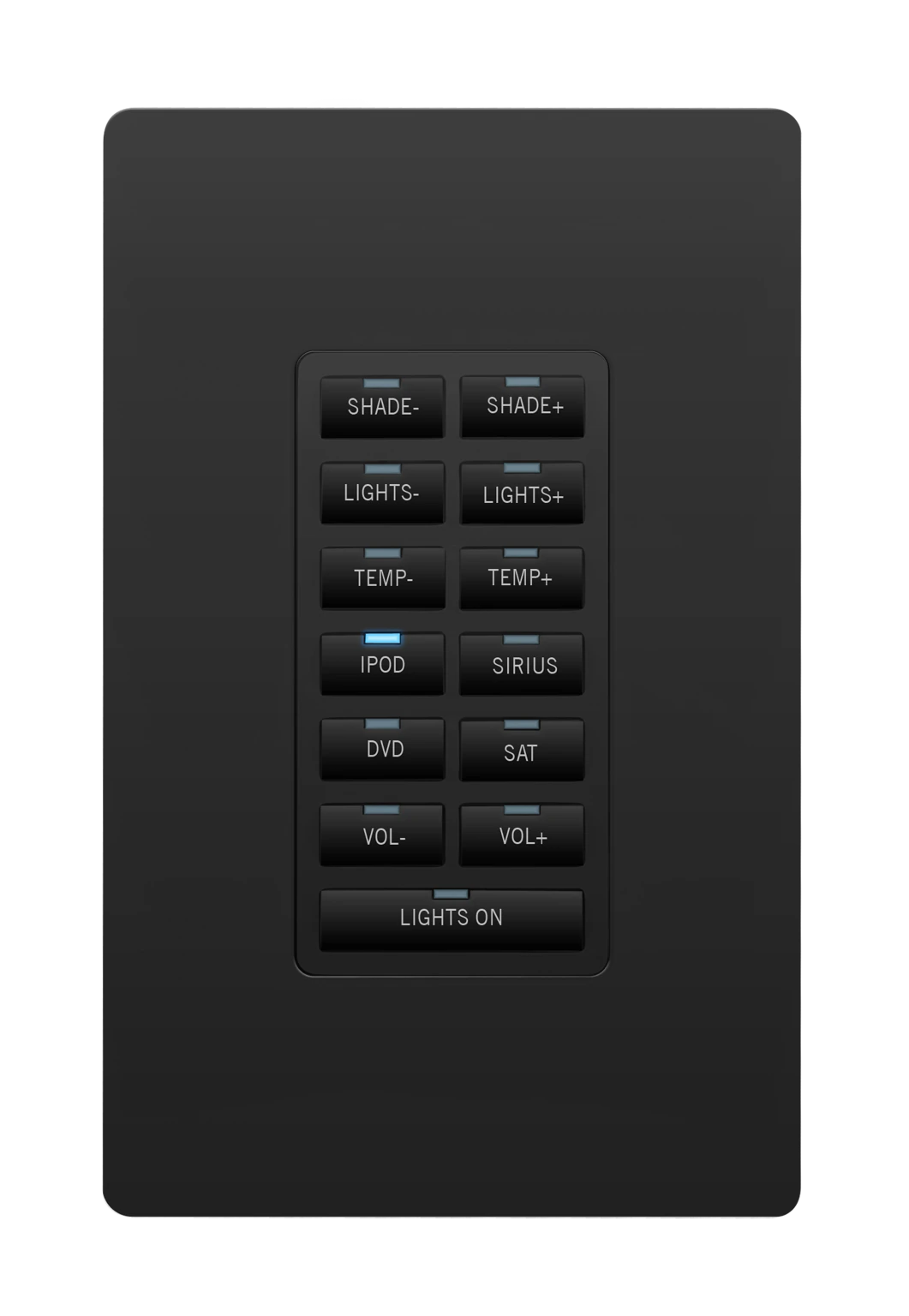

The HPX-U400-R-MET-13E module is a Metreau 13-Button Ethernet Keypad in a ramped carrier that allows it to be installed into the HydraPort® chassis at an angle to improve usability.

Common Applications

Ideal for boardrooms, conference rooms, meeting rooms or auditoriums where equipment is permanently installed in the room and users must connect to that equipment from a conference table or lectern.

Videos





Configuration Tool

Downloads

  Version Language Size Uploaded
Manuals
file type icon Instruction Manual - Metreau Keypads
updated: Mar 2018
    2.57 MB Mar 2018
Data Sheets
file type icon HPX-1200 12 Module Connection Ports (english)
updated: Oct 2020
    1 MB Oct 2020
file type icon HPX-900 9 Module Connection Ports (english)
updated: Oct 2020
    1.05 MB Oct 2020
file type icon HPX-600 6 Module Connection Ports (english)
updated: Oct 2020
    1010 KB Oct 2020
Quick Start Guides
file type icon Quick Start Guide - MET-13E Metreau 13-Button Ethernet Keypad
updated: Mar 2018
    185 KB Mar 2018
A&E (Architectural & Engineering) Specifications
file type icon A&E Spec - MET-13E Metreau 13-Button Ethernet Keypad
updated: Jun 2018
    55.5 KB Jun 2018
Whitepapers
file type icon AMX AV/IT Administrator's Guide
updated: Oct 2020
    2.61 MB Oct 2020
Safety Sheets
file type icon Safety Instructions - HydraPort
version E, updated: Jan 2024
  1.25 MB Jan 2024
Configuration Tools
file type icon HydraPort Connection Preview Configuration Tool
updated: Mar 2021
    Mar 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Connects via Standard Protocols (Ethernet) – Simplifies cabling and installation by minimizing cable runs
  • Standard Configuration – Standard buttons include 1-9, 0, ENTER, SAVE, and +/-
  • Blue LEDs Glow to Indicate Button Selection – Improves usability by confirming the user's selection
  • Bottom Button Can Act as Single or Two Buttons – Provides added flexibility to the configuration

Specifications

Dimensions

4 HydraPort Units (See the HPX-600, HPX-900 or HPX-1200 specifications section for an explanation of HydraPort units)

Power
  • PoE: PoE (Power over Ethernet), 802.3af, class 0
  • Power Connector: (1) RJ-45 Ethernet Connector, 10/100
Power Supply External, Required: POE injector or switch, conforming to the 802.3af standard including AMX’s PS-POE-AF-TC (FG423-83), not included
Ethernet Ethernet Connection: (1) RJ-45 Ethernet Connector, 10/100
Environmental
  • Temperature (Operating): 32° to 104° F (0° to 40° C)
  • Humidity (Relative): 5% to 85%, non-condensing
  • Note: Intended for indoor use only
Front Panel Components
  • Pushbuttons available in a variety of field replaceable pre-printed buttons
  • Blue LEDs indicate activity
Rear Panel Components
  • (1) RJ-45 Ethernet Connector, 10/100
  • (2) 8-pin, 0.100” (2.54 mm) IDC-type male header
FG Numbers FG565-12-BL-00
