HPX-U400-R-MET-7E

Metreau® 7-Button Ethernet Keypad Ramp Kit

Larger Images

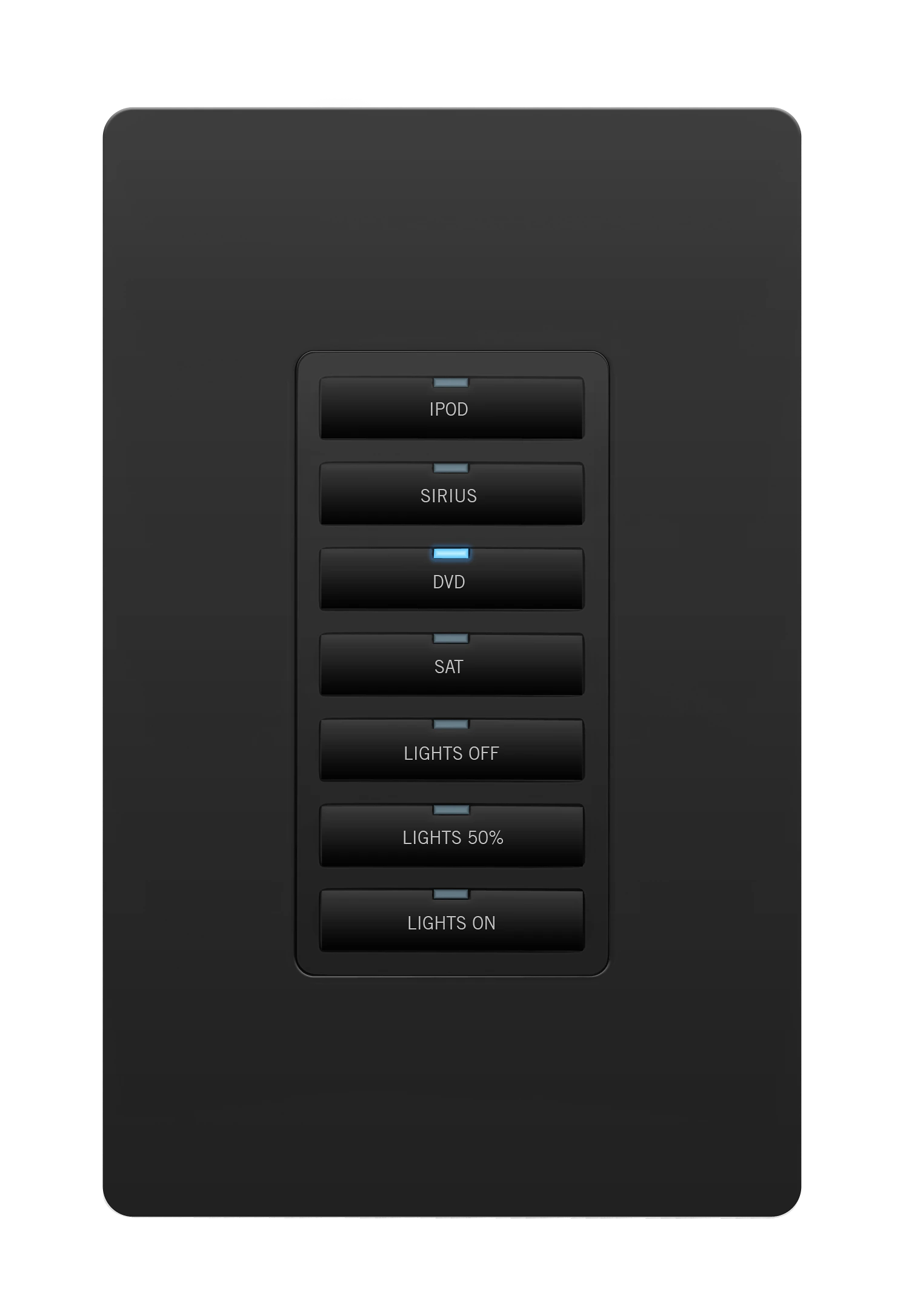

The HPX-U400-R-MET-7E module is a Metreau 7-Button Ethernet Keypad in a ramped carrier that allows it to be installed into the HydraPort® chassis at an angle to improve usability.

Common Applications

Ideal for boardrooms, conference rooms, meeting rooms or auditoriums where equipment is permanently installed in the room and users must connect to that equipment from a conference table or lectern.

Videos

HydraPort Connection Port Series - InfoComm 2011 New Product



Configuration Tool

Documentation

Downloads

  Version Language Size Uploaded
Manuals
Instruction Manual - Metreau Keypads     2.57 MB Mar 28, 2018
Brochures
HydraPort Product Brochure     1.24 MB Jul 17, 2018
Data Sheets
HPX-1200 12 Module Connection Ports (english)     1 MB Jul 12, 2018
HPX-600 6 Module Connection Ports (german)     1.5 MB Jul 12, 2018
HPX-600 6 Module Connection Ports (english)     1010 KB Jul 12, 2018
HPX-900 9 Module Connection Ports (german)     2 MB Jul 12, 2018
HPX-900 9 Module Connection Ports (english)     1.05 MB Jul 12, 2018
HPX-1200 12 Module Connection Ports (german)     1.54 MB Jul 12, 2018
Whitepapers
AMX AV/IT Administrator's Guide     2.61 MB Apr 25, 2018
A&E (Architectural & Engineering) Specifications
A&E Spec - MET-7E Metreau 7-Button Ethernet Keypad     55.5 KB Jun 28, 2018
Quick Start Guides
Quick Start Guide - MET-7E Metreau 7-Button Ethernet Keypad     174 KB Mar 28, 2018
Safety Sheets
Safety Instructions - HydraPort   90.8 KB Jul 13, 2018
Configuration Tools
HydraPort Connection Preview Configuration Tool     Jan 11, 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Connects via Standard Protocols (Ethernet) – Simplifies cabling and installation by minimizing cable runs
  • Standard Configuration – Standard buttons include 1-9, 0, ENTER, SAVE, and +/-
  • Blue LEDs Glow to Indicate Button Selection – Improves usability by confirming the user's selection
  • Bottom Button Can Act as Single or Two Buttons – Provides added flexibility to the configuration

Specifications

Dimensions

4 HydraPort Units (See the HPX-600, HPX-900 or HPX-1200 specifications section for an explanation of HydraPort units)

Power
  • PoE: PoE (Power over Ethernet), 802.3af, class 0
  • Power Connector: (1) RJ-45 Ethernet Connector, 10/100
Power Supply External, Required: POE injector or switch, conforming to the 802.3af standard including AMX’s PS-POE-AF-TC (FG423-83), not included
Ethernet Ethernet Connection: (1) RJ-45 Ethernet Connector, 10/100
Environmental
  • Temperature (Operating): 32° to 104° F (0° to 40° C)
  • Humidity (Relative): 5% to 85%, non-condensing
  • Note: Intended for indoor use only
Front Panel Components
  • Pushbuttons available in a variety of field replaceable pre-printed buttons
  • Blue LEDs indicate activity
Rear Panel Components
  • (1) RJ-45 Ethernet Connector, 10/100
  • (2) 8-pin, 0.100” (2.54 mm) IDC-type male header
FG Numbers FG565-13-BL

Recommended Accessories
