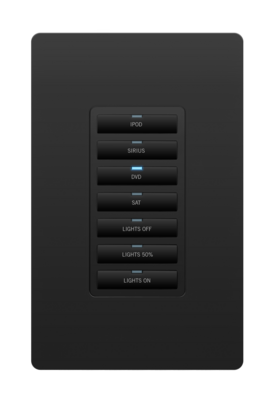

The HPX-U400-R-MET-7E module is a Metreau 7-Button Ethernet Keypad in a ramped carrier that allows it to be installed into the HydraPort® chassis at an angle to improve usability.
Gambar Lebih Besar
Keterangan Lebih Lanjut
Ideal for boardrooms, conference rooms, meeting rooms or auditoriums where equipment is permanently installed in the room and users must connect to that equipment from a conference table or lectern.
Video
configuration_tool
Unduhan
Manuals
| Ukuran | |
|
|
2,57 MB |
Quick Start Guides
| Ukuran | |
|
|
174 KB |
A&E (Architectural & Engineering) Specifications
| Ukuran | |
|
|
55,5 KB |
Safety Sheets
| Ukuran | |
|
|
1,25 MB |
Data Sheets
| Ukuran | |
|
|
1,02 MB |
Configuration Tools
| Ukuran | |
|
|
Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.
Fitur
- Connects via Standard Protocols (Ethernet) – Simplifies cabling and installation by minimizing cable runs
- Standard Configuration – Standard buttons include 1-9, 0, ENTER, SAVE, and +/-
- Blue LEDs Glow to Indicate Button Selection – Improves usability by confirming the user's selection
- Bottom Button Can Act as Single or Two Buttons – Provides added flexibility to the configuration
Spesifikasi
| Dimensions | 4 HydraPort Units (See the HPX-600, HPX-900 or HPX-1200 specifications section for an explanation of HydraPort units) |
| Power |
|
| Power Supply | External, Required: POE injector or switch, conforming to the 802.3af standard including AMX’s PS-POE-AF-TC (FG423-83), not included |
| Ethernet | Ethernet Connection: (1) RJ-45 Ethernet Connector, 10/100 |
| Environmental |
|
| Front Panel Components |
|
| Rear Panel Components |
|
| FG Numbers | FG565-13-BL-00 |
recommended_accessories
-
PS-POE-AF-TC
Injector PoE, Sesuai dengan 802.3AF -
CBL-ETH-FL2
Kabel Ethernet Cat6
