HPX-U400-R-MET-7E

Metreau® 7 键式以太网键盘竖立套件

Limited Availability

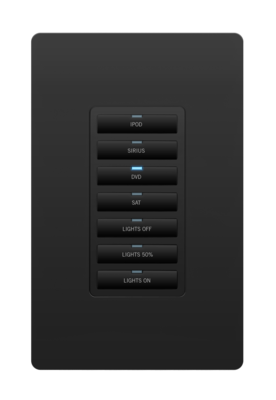

HPX-U400-R-MET-7E

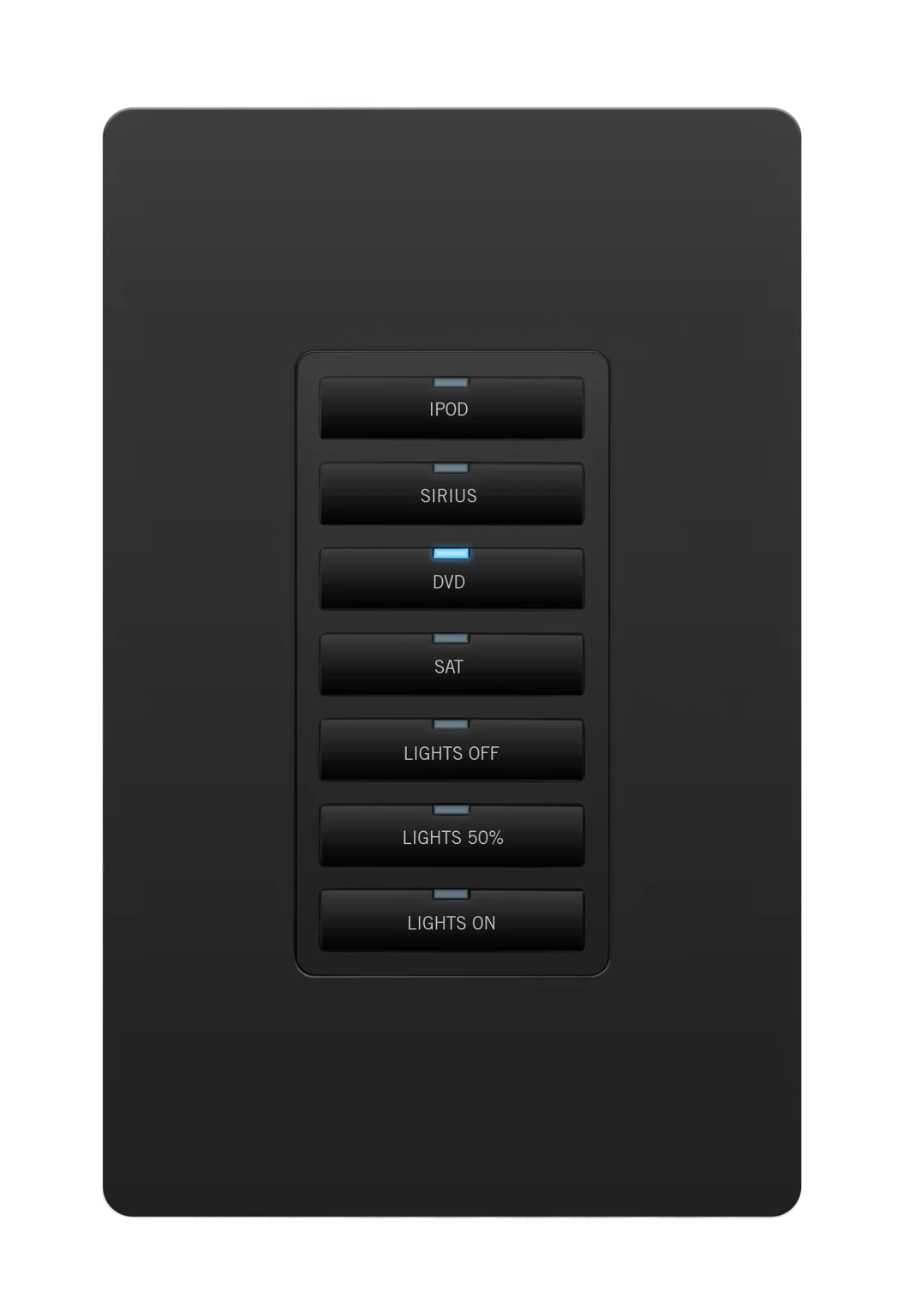

较大的图像

HPX-U400-R-MET-7E 模块是一个 Metreau 7 键式以太网键盘,采用斜坡式载体,可以以一定角度安装到 HydraPort® 机箱中,从而提高可用性。

更多详情

适用于设备永久安装在房间内且用户必须从会议桌或讲台连接到该设备的董事会议室、会议室或礼堂。

Videos





configuration_tool

下载

  Version Language Size Uploaded
Manuals
file type icon Instruction Manual - Metreau Keypads
updated: 3月 2018
    2.6 MB 3月 2018
Data Sheets
file type icon HPX-1200 12 Module Connection Ports (english)
updated: 10月 2020
    1.0 MB 10月 2020
file type icon HPX-900 9 Module Connection Ports (english)
updated: 10月 2020
    1.1 MB 10月 2020
file type icon HPX-600 6 Module Connection Ports (english)
updated: 10月 2020
    1007.4 KB 10月 2020
Quick Start Guides
file type icon Quick Start Guide - MET-7E Metreau 7-Button Ethernet Keypad
updated: 3月 2018
    173.8 KB 3月 2018
A&E (Architectural & Engineering) Specifications
file type icon A&E Spec - MET-7E Metreau 7-Button Ethernet Keypad
updated: 6月 2018
    55.5 KB 6月 2018
Whitepapers
file type icon AMX AV/IT Administrator's Guide
updated: 10月 2020
    2.6 MB 10月 2020
Safety Sheets
file type icon Safety Instructions - HydraPort
version E, updated: 1月 2024
  1.2 MB 1月 2024
Configuration Tools
file type icon HydraPort Connection Preview Configuration Tool
updated: 3月 2021
    3月 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

特点

  • 通过标准协议以太网连接 – 可最大限度减少电缆敷设量以达到简化布线和安装的目的
  • 标准配置 - 标准按钮包括“1-9”、“0”、“回车”、“保存”和“+/-”
  • 蓝色 LED 亮起指示按钮选择 – 用户可通过 LED 指示灯确认选择,从而提高可用性
  • 底部按钮可起到一个或两个按钮的作用 - 提高配置灵活性

性能

尺寸

4 HydraPort Units (See the HPX-600, HPX-900 or HPX-1200 specifications section for an explanation of HydraPort units)

电源
  • PoE: PoE (Power over Ethernet), 802.3af, class 0
  • Power Connector: (1) RJ-45 Ethernet Connector, 10/100

电源

External, Required: POE injector or switch, conforming to the 802.3af standard including AMX’s PS-POE-AF-TC (FG423-83), not included
Ethernet Ethernet Connection: (1) RJ-45 Ethernet Connector, 10/100
环境
  • Temperature (Operating): 32° to 104° F (0° to 40° C)
  • Humidity (Relative): 5% to 85%, non-condensing
  • Note: Intended for indoor use only
前面板组件
  • Pushbuttons available in a variety of field replaceable pre-printed buttons
  • Blue LEDs indicate activity
后面板组件
  • (1) RJ-45 Ethernet Connector, 10/100
  • (2) 8-pin, 0.100” (2.54 mm) IDC-type male header
FG Numbers FG565-13-BL-00
