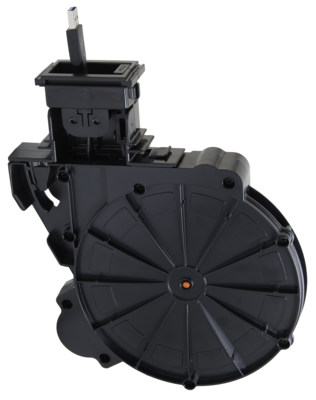

HPX-AV102-USB-R

USB 3.0 Module with Retractable MyTurn™ Ready Cable

Larger Images

The HydraPort® 3.0 Module with Retractable Cable allows you to connect your laptop to devices in the room such as a Sereno Web Camera or an Alero Web Conferencing Mixer. You can also connect through a rack-mounted USB 3.0 dock to connect to the display, Ethernet, cameras, mics, and more via a single USB 3.0 cable. The compact, easy to install solution organizes and hides cables in virtually any type of conference table, including narrow tables, and those with glass inlay. With the addition of a clip-on My MyTurn Source Selection Button, it is easy to instruct the system to switch to the selected input.

Training

Learn important installation, configuration and programming techniques in the following course(s) from Harman Professional University:

  • Getting Started with HydraPort

 For schedules and registration for these and any Harman Professional University courses, visit College of AMX.

Videos

HydraPort Enhancements Bring Ultra-Thin Panel, 4K60 Cables, and More!



Configuration Tool

Documentation

Downloads

  Version Language Size Uploaded
Brochures
HydraPort Product Brochure     1.24 MB Jul 17, 2018
CAD Drawings
Pictorial Drawing - HPX-AV102-USB-R USB 3.0 Module w/ Retractable MyTurn-Ready Cable (DWG)     1.52 MB Jul 12, 2018
Pictorial Drawing - HPX-AV102-USB-R USB 3.0 Module w/ Retractable MyTurn-Ready Cable (DXF)     3.6 MB Jul 12, 2018
Pictorial Drawing - HPX-AV102-USB-R USB 3.0 Module w/ Retractable MyTurn-Ready Cable (PDF)     1.03 MB Jul 12, 2018
Data Sheets
HPX-1200 12 Module Connection Ports (english)     1 MB Jul 12, 2018
HPX-600 6 Module Connection Ports (german)     1.5 MB Jul 12, 2018
HPX-600 6 Module Connection Ports (english)     1010 KB Jul 12, 2018
HPX-900 9 Module Connection Ports (german)     2 MB Jul 12, 2018
HPX-900 9 Module Connection Ports (english)     1.05 MB Jul 12, 2018
HPX-1200 12 Module Connection Ports (german)     1.54 MB Jul 12, 2018
Safety Sheets
Safety Instructions - HydraPort   90.8 KB Jul 13, 2018
Quick Start Guides
Quick Start Guide - HPX-AV102-USB-R USB 3.0 Module with Retractable MyTurn Ready Cable   349 KB Jul 12, 2018
Configuration Tools
HydraPort Connection Preview Configuration Tool     Jan 11, 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • No Assembly, Adjustments or Terminations – Module installs quickly and easily with no special mounting

Specifications

Dimensions

1 1/2 HydraPort Units (See the HPX-600, HPX-900 or HPX-1200 specifications section for an explanation of HydraPort units)

Weight Approximately 1lb (0.46 Kg)
Integrated Cable
  • Universal Serial Bus (USB) 3.0 Retractable Cable
  • Pullout Length: 5 ft (1.52m)
  • Pigtail: 5 ft (1.52m)
  • Pigtail Connector: USB Type A Male (use included adapters to change to a USB Type A female or USB Type B male connection)
  • Data Rate: 5 Gbps
Front Panel Components Pull-Out Connector: USB Type A Male
Long-Term Reliability Tested to 10,000 pull and release cycles
Optional Accessories
  • HPA-MYT-TX, MyTurn Source Selector Button (FG554-21)
  • HPA-MYT-RX, MyTurn Source Selector Receiver (FG554-23)
  • CBL-USB-FL2, USB MyTurn-Ready Flat Cable (FG10-2197-16)
  • NMX-VCC-1000, Sereno Video Conferencing Camera (FG3211-10)
FG Numbers FG552-37
