HPX-AV101-DVI+A

DVI-D with Stereo Module with Integrated Cables

Larger Images

The HPX-AV101-DVI+A module provides DVI-D video plus stereo audio connectivity to the HydraPort®chassis with integrated video and audio cables.

Training

Learn important installation, configuration and programming techniques in the following course(s) from Harman Professional University:

  • Getting Started with HydraPort

 For schedules and registration for these and any Harman Professional University courses, visit College of AMX.

Videos

HydraPort Connection Port Series - InfoComm 2011 New Product



Configuration Tool

Downloads

  Version Language Size Uploaded
Brochures
HydraPort Product Brochure     1.24 MB Jul 17, 2018
Data Sheets
HPX-1600 16 Module Retractable Connection Ports (english)     838 KB Jul 12, 2018
HPX-600 6 Module Connection Ports (german)     1.5 MB Jul 12, 2018
HPX-600 6 Module Connection Ports (english)     1010 KB Jul 12, 2018
HPX-900 9 Module Connection Ports (german)     2 MB Jul 12, 2018
HPX-900 9 Module Connection Ports (english)     1.05 MB Jul 12, 2018
HPX-1200 12 Module Connection Ports (german)     1.54 MB Jul 12, 2018
HPX-1200 12 Module Connection Ports (english)     1 MB Jul 12, 2018
HPX-1600 16 Module Retractable Connection Ports (german)     845 KB Jul 12, 2018
Safety Sheets
Safety Instructions - HydraPort   90.8 KB Jul 13, 2018
Configuration Tools
HydraPort Connection Preview Configuration Tool     Jan 11, 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Dimensions

1 HydraPort Unit (See the HPX-600, HPX-900, HPX-1200, HPX-1600 specifications section for an explanation of HydraPort units)

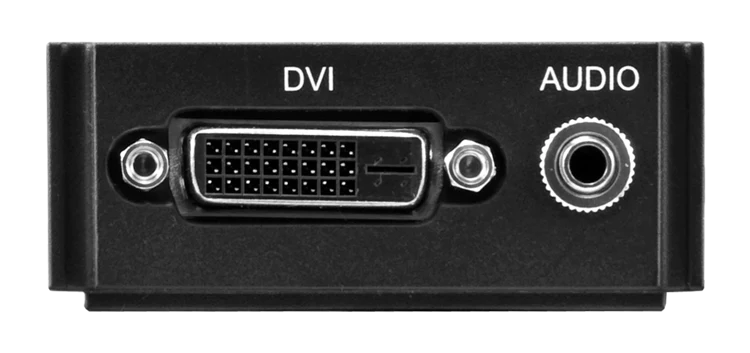

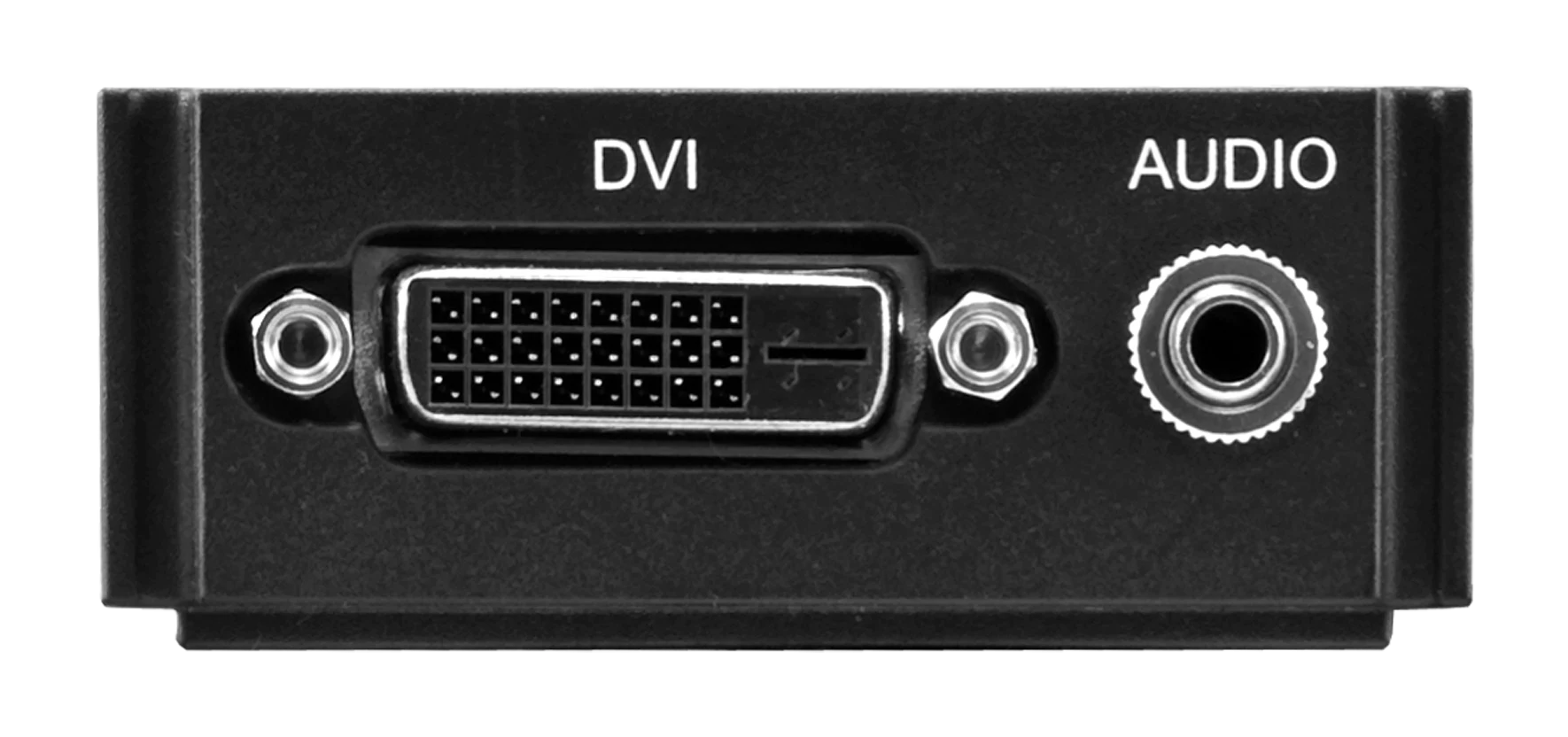

Front Panel Components
  • Female DVI-D connector
  • Female 1/8" stereo mini-jack
Rear Panel Components
  • 6' 6 3/4" (2 m) Cable to male DVI-D connector
  • 6' 6 3/4" (2 m) Cable to male 1/8" stereo mini-jack audio connector
FG Numbers FG552-22
