HPX-1600 (discontinued)

16 Module Retractable Connection Port

Larger Images

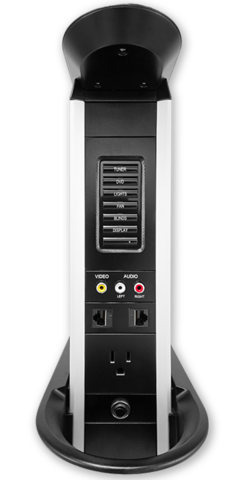

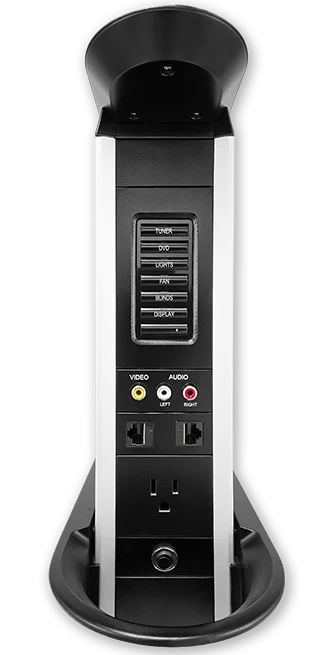

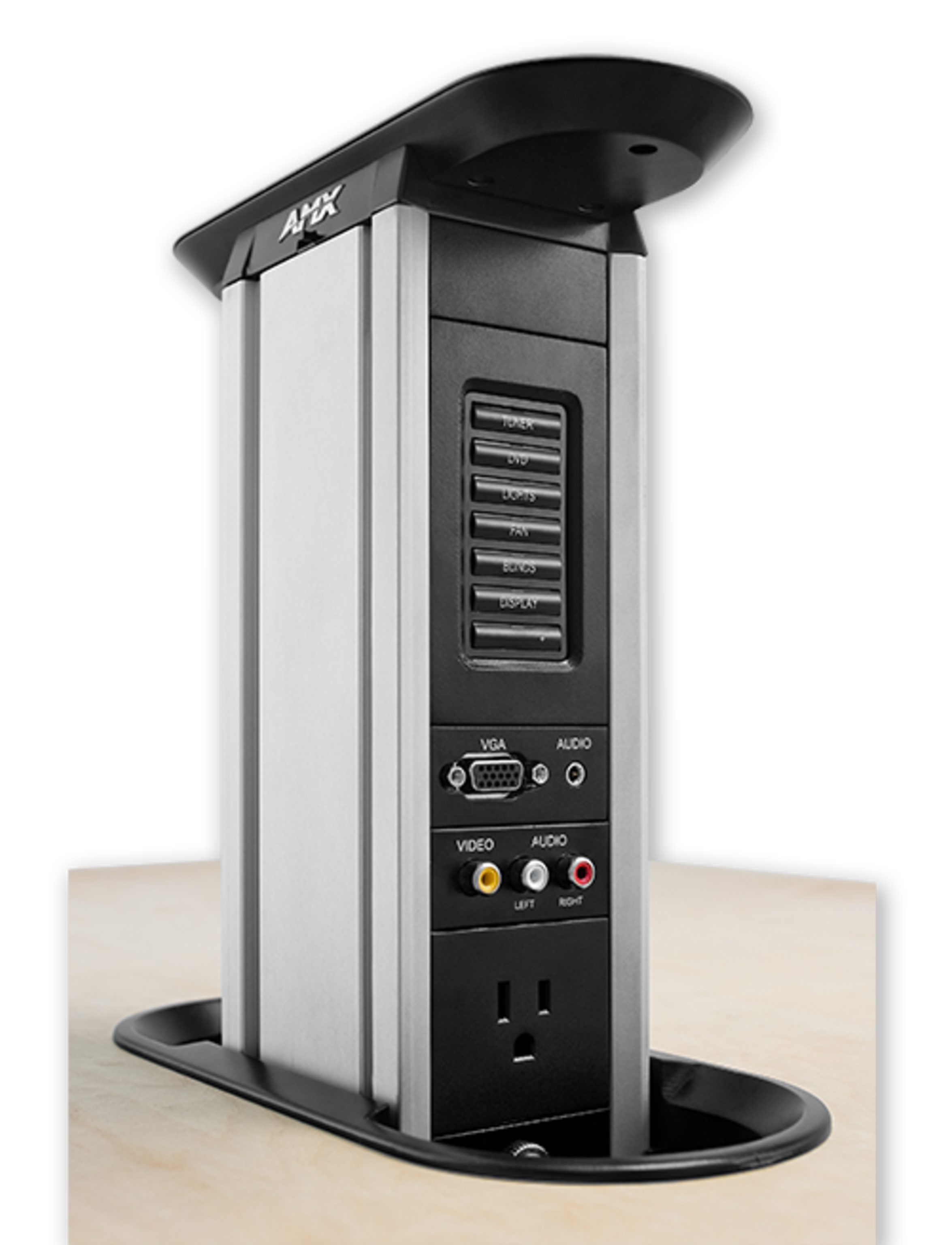

The HPX-1600 / HydraPort® 16 Module Retractable Connection Port is a modular AV table box for connecting mobile devices to projectors or displays in a conference room or classroom. This sleek, ergonomic design is typically mounted in a conference room or classroom table, and features a retractable base station that smoothly rises to expose device connections and recedes back down to conceal the typical cable mess that can distract from the business at hand.

No matter how you bring in your content - via HDMI, VGA, USB and other popular formats - you have access to the cable or connection you need, whenever you need it. The HydraPort Architectural Connectivity System uses simple, interchangeable modules to put together the exact future-proof configuration you need today and tomorrow.

Common Applications

  • With the largest number of modules available, the HPX-1600 is perfect for rooms that need the capability to connect many different device types to the AV system, or to provide AC power to several different devices
  • The HPX-1600 is designed for premium conference rooms, classrooms and boardrooms that require sophisticated, elegant styling
  • With the capability to accommodate AMX Metreau Keypads, the HPX-1600 is ideal for large rooms that require an additional control interface at the table

Downloads

  Version Language Size Uploaded
Data Sheet     838 KB Jul 09, 2018
Manuals
Installation Manual - HPX-1600 Retractable Connection Port and HPX Modules     2.36 MB Mar 26, 2018
CAD Drawings
Pictorial Drawing - HPX-1600 Retractable Connection Port (PDF)     266 KB Apr 05, 2018
Pictorial Drawing - HPX-1600 Retractable Connection Port (DXF)     1.8 MB Apr 05, 2018
Bim Objects
HPX-1600 - BIM Object     Aug 12, 2019
User Guides
User Guide - HPX-1600 Retractable Connection Port     247 KB Mar 26, 2018
Safety Sheets
Safety Instructions - HydraPort   90.8 KB Jul 13, 2018
Application Guides
AMX and the Perfect Meeting Room     426 KB Apr 12, 2018
Product Guides
HydraPort Product Guide     355 KB Apr 12, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Double Sided – To provide easy access, the HPX-1600 is double-sided and each side accommodates 8 AV or Data modules, 4 Power modules, 2 Keypad modules or any combination of these.
  • Elegant and Unassuming – The cable ring allows HydraPort to retract flush with the table once connections have been made without crimping or binding any connected cables. The typical wire mess is concealed.
  • Power for Everybody – The integrated IEC power inlet assembly easily connects to four different power modules providing international power support for virtually every country.
  • Control The Room – Add Metreau® or Novara Keypad modules to add device, lighting, shade or climate control as well as initiate pre-programmed events – all from the HydraPort console.
  • Simplifying the Installation – A sturdy, re-usable cutting template and router bits are available to simplify the process of cutting the table or lectern, ensuring a correct fit every time.

Specifications

Number of Modules Supported Each side can support up to 9 total single-space modules. See Data Sheet for details.
Mounting Surface Footprint 10 9/16" x 4 1/2" (268mm x 115mm)
Table Cutout Dimensions Use Router Guide
FG Numbers

FG550-01-SL (Silver - US Version)
FG550-01-BL (Black - US Version)
FG550-SL (Silver - International Version)
FG550-BL (Black - International Version)
