HPX-CPTS300-W

Cable Pass-Thru Well Module and Spacer Kit

Larger Images

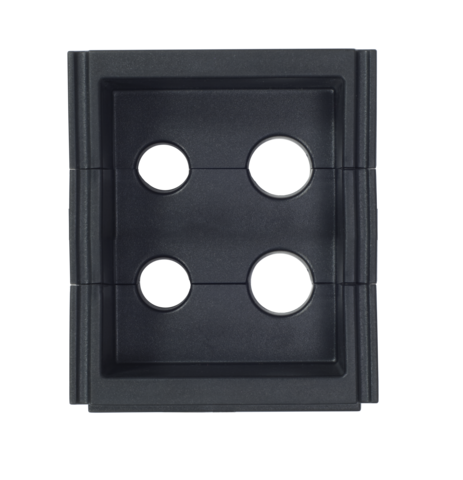

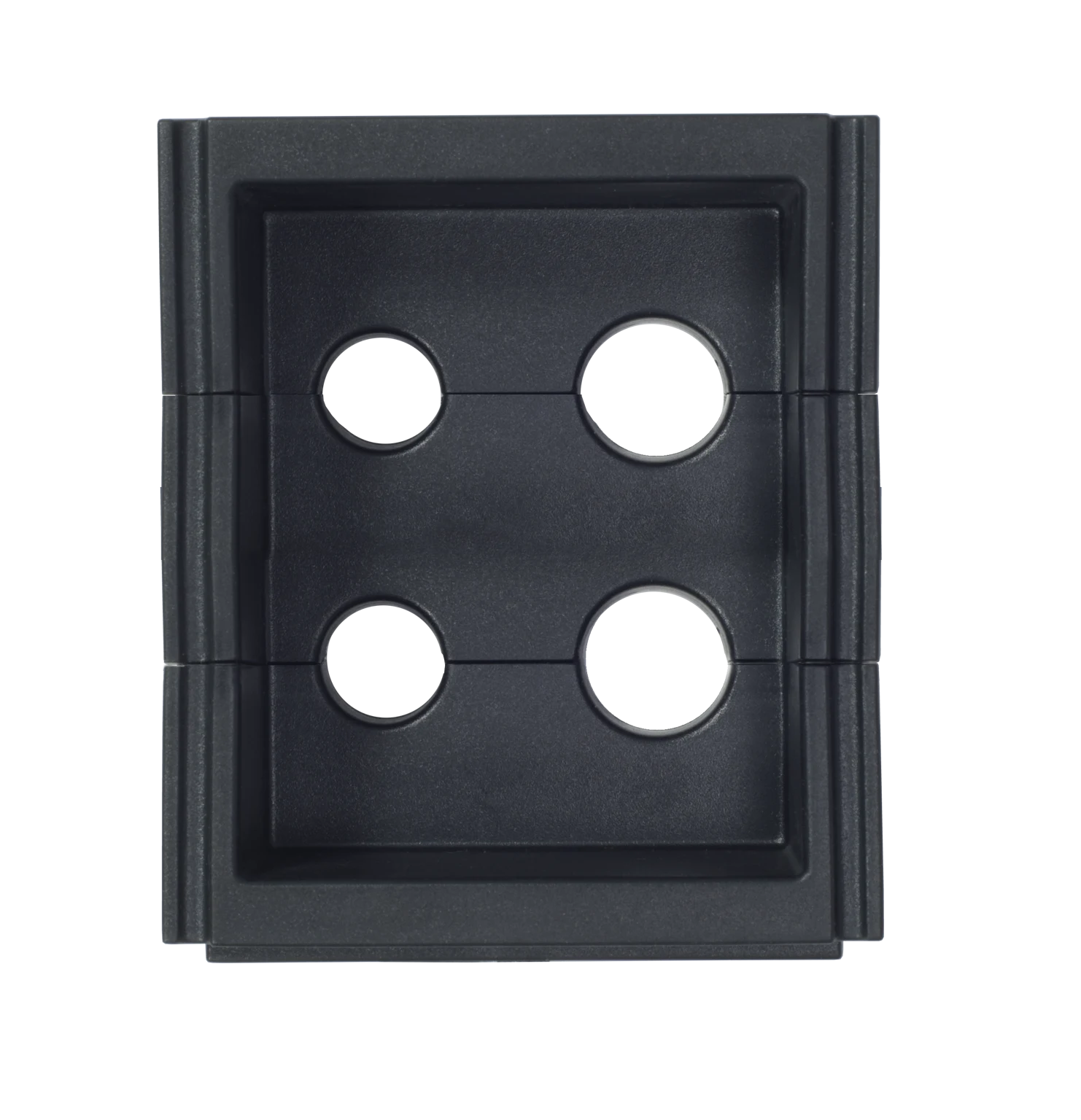

The HPX-CPTS300-W kit includes the Cable-Pass-Thru Well Module and Spacer together providing a simple and convenient way to add four circular openings to accommodate four cables - while keeping them out of sight in a HydraPort HPX-600, 900 or 1200 chassis.

CUSTOMER BENEFITS

  • Keep Extra Cables Hidden – Accommodate more pass-through cables in a single HydraPort unit

Training

Learn important installation, configuration and programming techniques in the following course(s) from Harman Professional University:

  • Getting Started with HydraPort

 For schedules and registration for these and any Harman Professional University courses, visit College of AMX.

Videos

HydraPort Connection Port Series - InfoComm 2011 New Product



Configuration Tool

Documentation

Downloads

  Version Language Size Uploaded
Brochures
HydraPort Product Brochure     1.24 MB Jul 17, 2018
Data Sheets
HPX-1200 12 Module Connection Ports (english)     1 MB Jul 12, 2018
HPX-1200 12 Module Connection Ports (german)     1.54 MB Jul 12, 2018
HPX-900 9 Module Connection Ports (english)     1.05 MB Jul 12, 2018
HPX-900 9 Module Connection Ports (german)     2 MB Jul 12, 2018
HPX-600 6 Module Connection Ports (english)     1010 KB Jul 12, 2018
HPX-600 6 Module Connection Ports (german)     1.5 MB Jul 12, 2018
Configuration Tools
HydraPort Connection Preview Configuration Tool     Jan 11, 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Dimensions

3 HydraPort Units (See the HPX-600, HPX-900 or HPX-1200 specifications section for an explanation of HydraPort units)

Front Panel Components
  • Small pass-thru hole(s) - 11.5mm diameter
  • Large pass-thru hole(s) - 14mm diameter
FG Numbers FG562-42K
