HPX-AV103-RGB+A-R

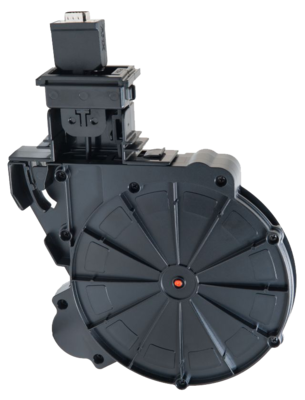

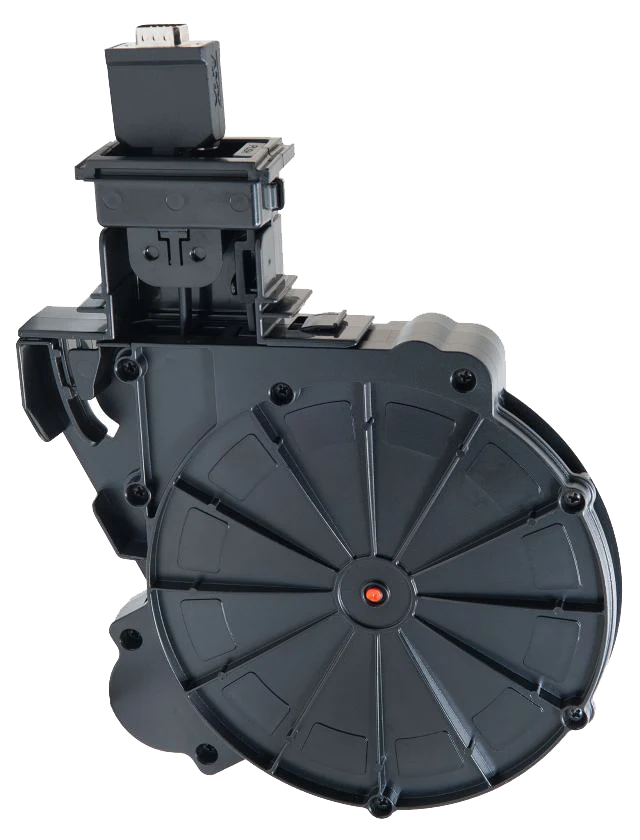

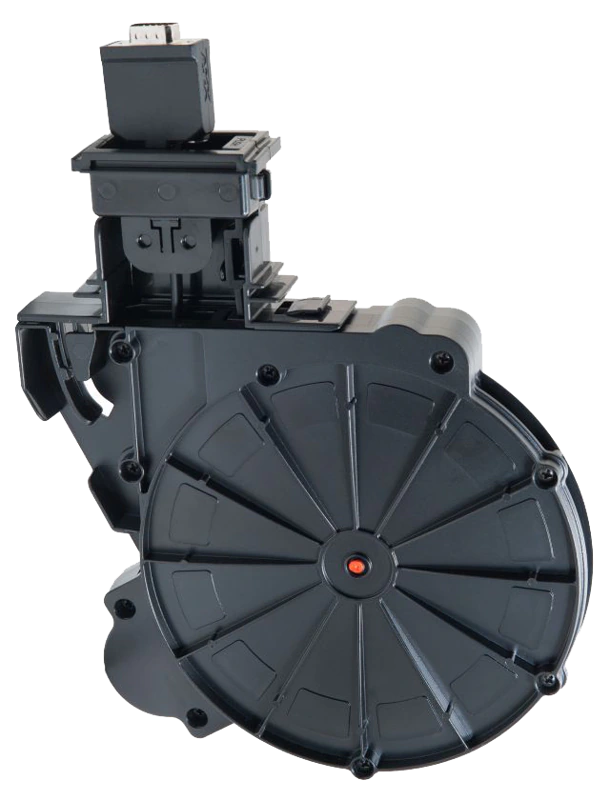

RGB with Stereo Module with Retractable MyTurn™ Ready Cable

Larger Images

The HydraPort® RGB with Stereo Module with Retractable Cable delivers a compact, easy to install solution that organizes and hides cables in virtually any type of conference table, including narrow tables, and those with glass inlay. With the addition of a clip-on MyTurn Source Selection Button, it is easy to instruct the system to switch to the selected input.

Training

Learn important installation, configuration and programming techniques in the following course(s) from Harman Professional University:

  • Getting Started with HydraPort

 For schedules and registration for these and any Harman Professional University courses, visit College of AMX

Videos

HydraPort Enhancements Bring Ultra-Thin Panel, 4K60 Cables, and More!



Configuration Tool

Documentation

Downloads

  Version Language Size Uploaded
CAD Drawings
Pictorial Drawing - HPX-AV103-RGB+A-R RGB with Stereo Module with Retractable MyTurn-Ready Cable (DWG)     1.73 MB Jul 12, 2018
Pictorial Drawing - HPX-AV103-RGB+A-R RGB with Stereo Module with Retractable MyTurn-Ready Cable (DXF)     4.2 MB Jul 12, 2018
Pictorial Drawing - HPX-AV103-RGB+A-R RGB with Stereo Module with Retractable MyTurn-Ready Cable (PDF)     1.2 MB Jul 12, 2018
Data Sheets
HPX-1200 12 Module Connection Ports (english)     1 MB Jul 12, 2018
HPX-600 6 Module Connection Ports (german)     1.5 MB Jul 12, 2018
HPX-600 6 Module Connection Ports (english)     1010 KB Jul 12, 2018
HPX-900 9 Module Connection Ports (german)     2 MB Jul 12, 2018
HPX-900 9 Module Connection Ports (english)     1.05 MB Jul 12, 2018
HPX-1200 12 Module Connection Ports (german)     1.54 MB Jul 12, 2018
Safety Sheets
Safety Instructions - HydraPort   90.8 KB Jul 13, 2018
Quick Start Guides
Quick Start Guide - HPX-AV103-RGB+A-R RGB+Stereo Module with Retractable MyTurn Ready Cable     353 KB Jul 12, 2018
Configuration Tools
HydraPort Connection Preview Configuration Tool     Jan 11, 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Dimensions

1 1/2 HydraPort Units (See the HPX-600, HPX-900 or HPX-1200 specifications section for an explanation of HydraPort units)

Weight Approximately 1lb (0.46 Kg)
Integrated Cable
  • RGB with Stereo
  • Pullout Length: 5 ft (1.52m)
  • Pigtail: 5 ft (1.52m)
  • Pigtail Connector: 15-pin HD male and 3.5 mm stereo male
  • Resolution Support: Up to 1600 x 1200 @60Hz
  • Pixel Clock: 162 MHz
Front Panel Components 15-pin HD male and 3.5 mm stereo male
Long-Term Reliability Tested to 10,000 pull and release cycles
Optional Accessories
  • HPA-MYT-TX, MyTurn Source Selector Button (FG554-21)
  • HPA-MYT-RX, MyTurn Source Selector Receiver (FG554-23)
  • CBL-RGB+A-FL2, RGB with Stereo MyTurn-Ready Flat Cable (FG10-2195-16)
FG Numbers FG552-35
