AMX HPX-600

Gambar Lebih Besar

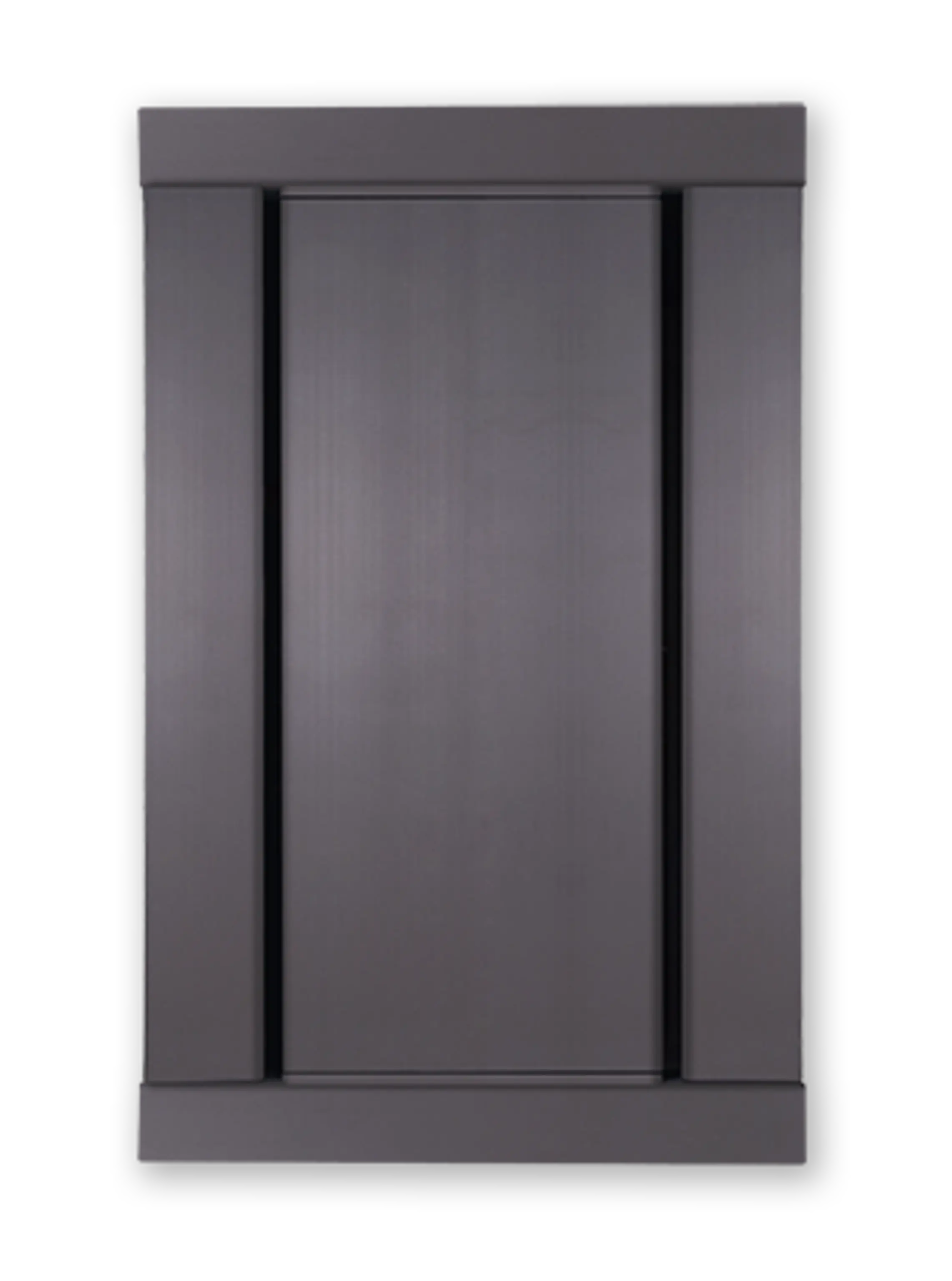

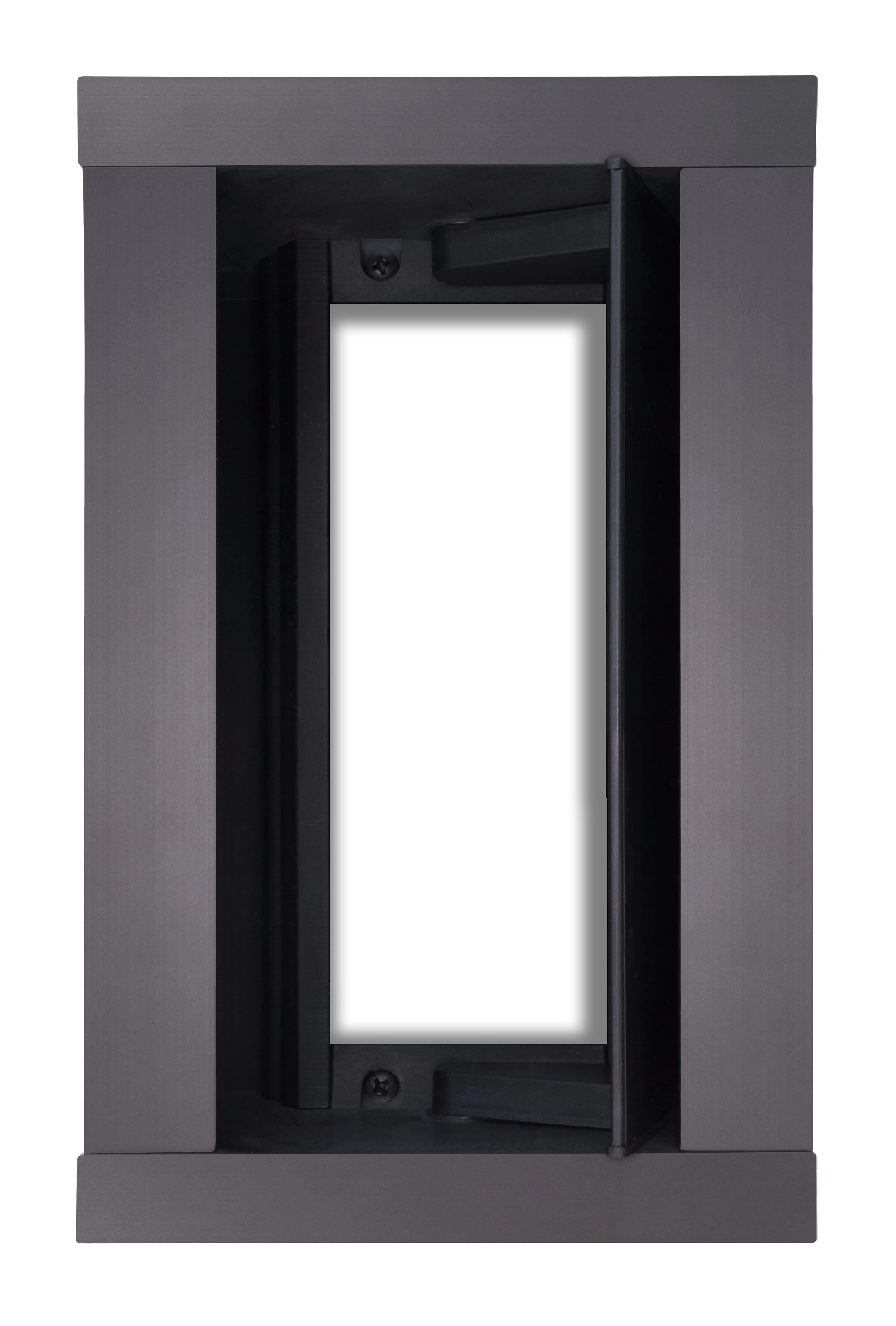

The HPX-600 6 HydraPort^® Unit Enclosure is a modular AV table box for connecting mobile devices to projectors or displays in a conference room or classroom. This sleek, flush-mount table box is typically installed in a conference room or classroom table, featuring a uniquely-designed lid that conveniently opens in both directions to provide a clean, unobtrusive look.

No matter how you bring in your content - via HDMI, Ethernet, USB and other popular formats - you have access to the cable or connection you need, whenever you need it. The HydraPort Architectural Connectivity System uses simple, interchangeable modules to put together the exact future-proof configuration you need today and tomorrow.

Keterangan Lebih Lanjut

With 6 available HydraPort Units available for modules, the HPX-600 is perfect for smaller rooms that need the capability to connect a small number of different device types to the AV system, or to provide AC power to one or two different devices
The HPX-600 is designed for any conference room, classroom or boardroom that requires the capability to connect devices to the AV system, with an unobtrusive style
With the capability to accommodate button modules, the HPX-600 is ideal for rooms that require an additional control interface at the table or lectern, or for smaller spaces where a keypad is the primary control interface

configuration_tool

HydraPort Connection Preview Configuration Tool

Unduhan

CAD Drawings

	Ukuran	Diunggah
Mounting Specification - HPX-600, 900, 1200 Chassis (DXF) diperbarui: Jan 2024	963 KB	Jan 2024
Mounting Specification - HPX-600, 900, 1200 Chassis (PDF) diperbarui: Okt 2018	295 KB	Okt 2018
Pictorial Drawing - HPX-600, 900, 1200 Chassis (DWG) diperbarui: Jan 2024	199 KB	Jan 2024
Pictorial Drawing - HPX-600, 900, 1200 Chassis (DXF) diperbarui: Jan 2024	861 KB	Jan 2024
Pictorial Drawing - HPX-600, 900, 1200 Chassis (PDF) diperbarui: Jan 2024	297 KB	Jan 2024

BIM Objects

	Ukuran	Diunggah
HPX-600 \| HPX-900 \| HPX-1200 - BIM Objects diperbarui: Agu 2019		Agu 2019

Quick Start Guides

	Ukuran	Diunggah
Quick Start Guide - HPX-600/900/1200 Module Connection Ports diperbarui: Okt 2020	297 KB	Okt 2020

Safety Sheets

	Versi	Ukuran	Diunggah
Safety Instructions - HydraPort versi E, diperbarui: Jan 2024	E	1,25 MB	Jan 2024

A&E (Architectural & Engineering) Specifications

	Ukuran	Diunggah
A&E Spec - HPX-600 6 Module Connection Port diperbarui: Jun 2018	51 KB	Jun 2018

Data Sheets

	Versi	Ukuran	Diunggah
Data Sheet – HPX-600 versi B, diperbarui: Feb 2025	B	476 KB	Feb 2025

Configuration Tools

	Ukuran	Diunggah
HydraPort Connection Preview Configuration Tool diperbarui: Mar 2021		Mar 2021

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Fitur

Future-Proof Modular Design – Features an assembly with the flexibility to change the modules to meet current and future needs
Elegant and Unobtrusive – Flush-mount design installs cleanly into a lectern or table and the lid conveniently opens in both directions providing a sleek look
No Electrician Required – HydraPort power modules can be connected directly to a wall or floor outlet eliminating the need for an electrician
Control The Room – Add keypad or button modules to control A/V devices, lighting, & shades, as well as to initiate pre-programmed events like source selection or display power
Anodized Aluminum – These stylish, low profile connectivity ports have the same contemporary brushed aluminum enclosure as the higher-end office furniture manufacturers at the same price as most competitive painted metal models

Spesifikasi

Number of Modules Supported	Six (6) total HydraPort Units. See Data Sheet for details.
Mounting Surface Footprint	8 3/16" x 5 7/16" (208mm x 138mm)
Table Cutout Dimensions	7.64" x 4.84" (194mm x 123mm)
FG Numbers	FG560-01-BL (Black Anodized) FG560-01-SL (Brushed Aluminum)
