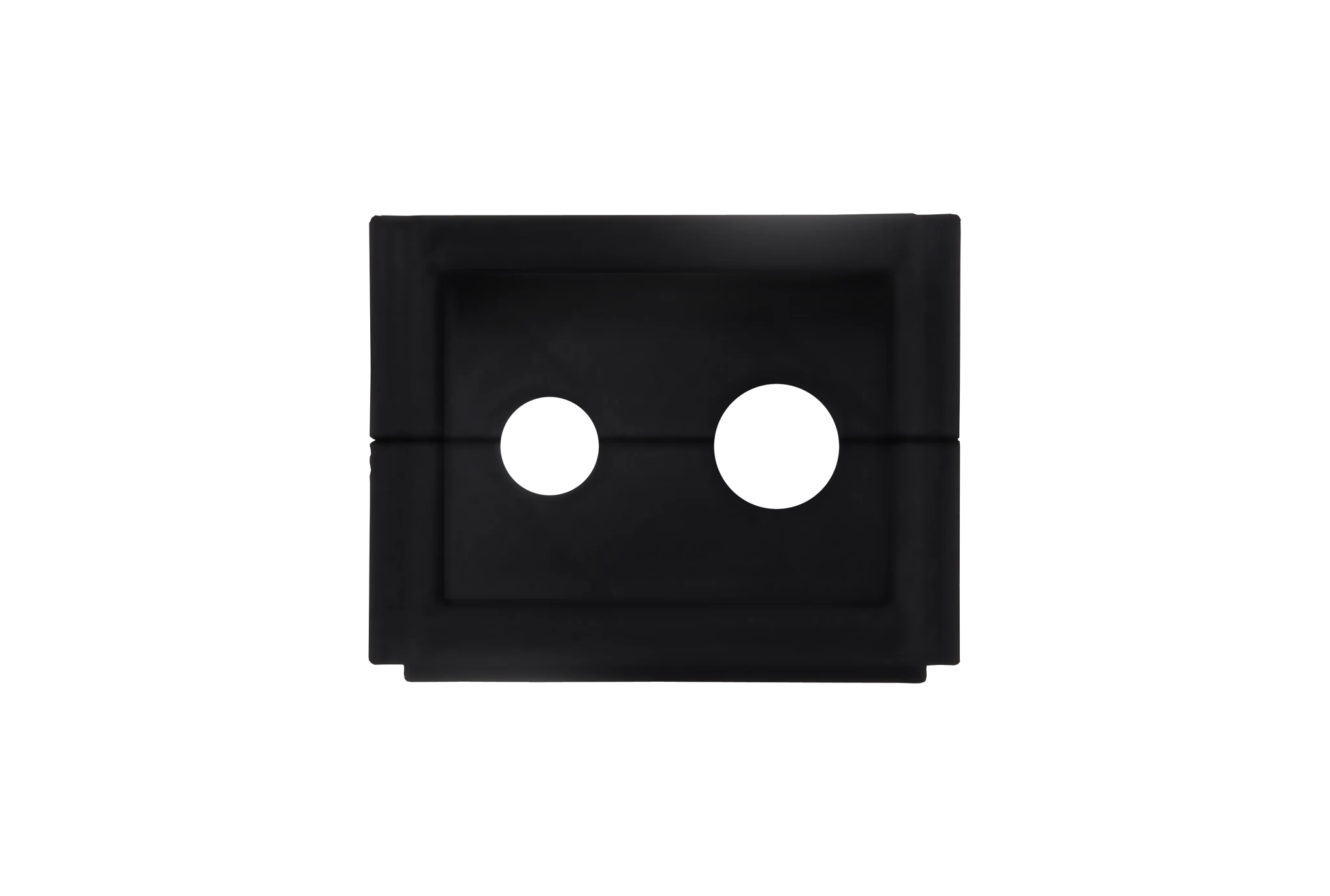

HPX-CPT200-W

Modul Cable Pass-Thru Well

HPX-CPT200-W
Gambar Lebih Besar

The HPX-CPT200-W provides a convenient way to keep cables out of sight in a HydraPort® HPX-600, 900 or 1200 chassis, while still being readily available to connect when needed.

Keterangan Lebih Lanjut

Learn important installation, configuration and programming techniques in the following course(s) from Harman Professional University:

  • Getting Started with HydraPort

 For schedules and registration for these and any Harman Professional University courses, visit College of AMX.

Video





configuration_tool

Unduhan

CAD Drawings
  Ukuran Diunggah
107 KB Okt 2020
349 KB Okt 2020
Configuration Tools
  Ukuran Diunggah
Mar 2021

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Spesifikasi

Dimensions

2 HydraPort Units (See the HPX-600, HPX-900 or HPX-1200 specifications section for an explanation of HydraPort units)

Front Panel Components
  • Small pass-thru hole(s) - 11.5mm diameter
  • Large pass-thru hole(s) - 14mm diameter
FG Numbers FG562-41
