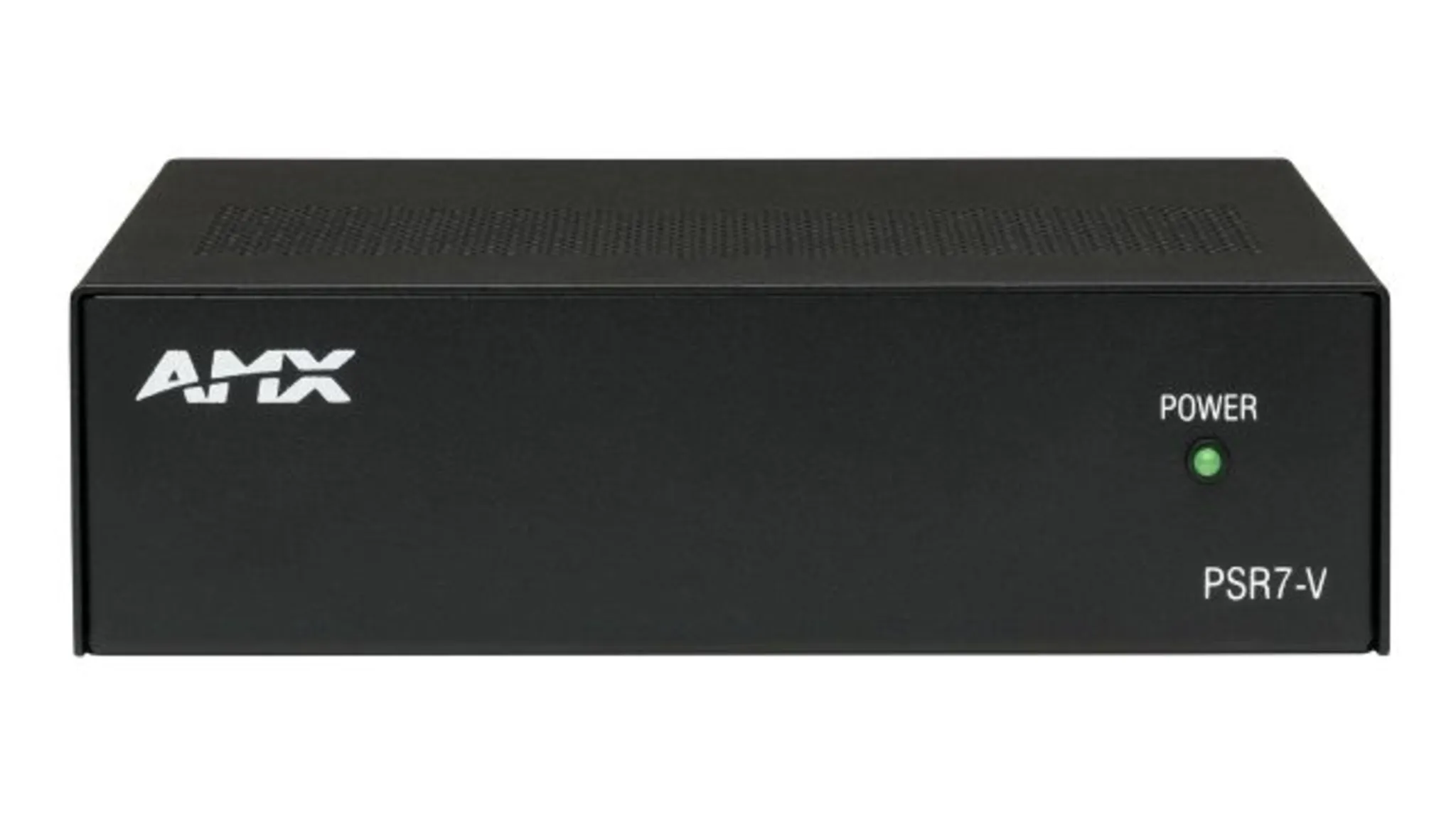

AMX PSR7-V

拡大画像

The PSR7-V power supply provides 5.5 amps of 12VDC power and is an optional power supply for Modero® X Series line of touch panels and NetLinx NX Integrated Central Controllers. It includes three 3.5 mm phoenix connectors with retention screws.

Accessories include a V-style module rack tray and surface mount brackets which allow the PSR7-V power supply to be securely mounted to flat surfaces such as under a table or on a wall. Up to three power supplies can be mounted side-by-side using a 1 RU space.

より詳しい情報はこちら

Ideal for professional AV installations, the PSR7-V power supply helps to protect valuable components against over-voltage, over-current, short-circuit, transient and thermal damage.

ダウンロード

ドキュメント

	サイズ	アップロード日
Data Sheet 更新: 2026年4月	262KB	2026年4月

Quick Start Guides

	サイズ	アップロード日
Quick Start Guide - PS/N/R Power Supplies 更新: 2020年10月	667KB	2020年10月

上記のリンクをクリックしてブラウザで文字化けが発生する場合は、ファイルを右クリックしてコンピューターに保存してください。

特長

Protection – Against over-voltage, over-current, short-circuit, transient and thermal; switching regulated and overload protected.
Power Indicator – Green LED indicates DC on the output in fault tolerant range.
Connectors – Includes 3 x Mini 2-pin captive wire connector (3.5 mm).
Input Power Cord – IEC power cord provided as a separate part, dependent on country requirements

仕様

Power Supply	Input Voltage: ~100-240 V, 1.9A MAX, 47/63 Hz; Output Voltage: 12 VDC +/-.6V; Output Current: 5.5 A
Dimensions	1 5/8" x 5 3/4" x 5 1/8" (4.13 cm x 14.6 cm x 13.02 cm) (HWD)
Operating Environment	Operating Temperature: 32°F to 122°F (0°C to 50°C)
FG Numbers	FG423-49
