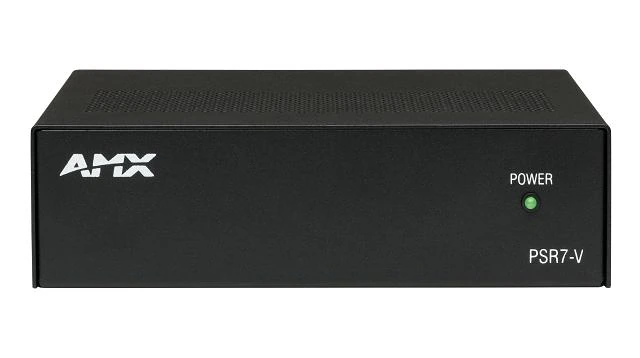

PSR7-V

Versatile Mount 7 Amp Power Supply



The PSR7-V power supply provides 7 amps of 12VDC power and is an optional power supply for Modero® X Series line of touch panels and NetLinx NX Integrated Central Controllers. It includes three 3.5 mm phoenix connector with retention screws.

Accessories include a V-style module rack tray and surface mount brackets which allow the PSR7-V power supply to be securely mounted to flat surfaces such as under a table or on a wall. Up to three power supplies can be mounted side-by-side using a 1 RU space.

更多详情

Ideal for professional AV installations, the PSR7-V power supply helps to protect valuable components against over-voltage, over-current, short-circuit, transient and thermal damage.

特点

  • Protection – Against over-voltage, over-current, short-circuit, transient and thermal; switching regulated and overload protected.
  • Power Indicator – Green LED indicates DC on the output in fault tolerant range.
  • Connectors – Includes 3 x Mini 2-pin captive wire connector (3.5 mm).
  • Input Power Cord –  IEC power cord provided as a separate part, dependent on country requirements

性能

电源

Input Voltage: 100-240 +10% VAC; Output Voltage: 12 VDC; Output Current: 7 max

尺寸

1 5/8" x 5 3/4" x 5 1/8" (4.13 cm x 14.6 cm x 13.02 cm) (HWD)
Operating Environment Operating Temperature: 32°F to 104°F (0°C to 40°C)
