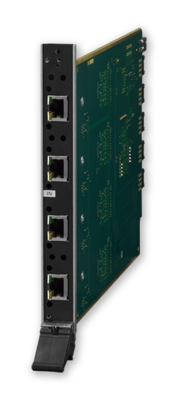

The DGX-I-DXL is a HDCP compliant twisted pair cable input board for the Enova DGX 8, 16, 32 and 64 Digital Media Enclosures. It has four connections per board designed to receive audio and video from DXLink Twisted Pair Transmitters while passing bi-directional control and Ethernet signals over one standard twisted pair cable up to 100m. DXLink Power is available from the DXLink Input Board to power DXLink Twisted Pair Transmitters.
Hình ảnh lớn hơn
Thêm Chi tiết
The Enova DGX DXLink Twisted Pair Input Board is ideal for applications where source devices are located up to 100 meters away from the Enova DGX Digital Media Switcher and need to be distributed throughout a commercial or residential environment.
configuration_tool
Tải xuống
Tài liệu
| Kích thước | |
Data Sheet
cập nhật: Thg 4 2026
|
300 KB |
Manuals
| Kích thước | |
|
|
20 MB |
|
|
900 KB |
|
|
50 KB |
Comparison Charts
| Kích thước | |
|
|
200 KB |
Certifications
| Kích thước | |
|
|
300 KB |
|
|
200 KB |
|
|
100 KB |
|
|
200 KB |
Whitepapers
| Kích thước | |
|
|
500 KB |
|
|
2 MB |
Quick Start Guides
| Kích thước | |
|
|
400 KB |
Product Guides
| Kích thước | |
|
|
Configuration Tools
| Kích thước | |
|
|
Nếu bất kỳ liên kết nào ở trên hiển thị ký tự lạ trong trình duyệt của bạn, vui lòng nhấp chuột phải vào tệp để lưu vào máy tính của bạn.
Tính năng
- Only One Cable – Receive audio and video while passing control, Ethernet and power over one twisted pair cable
- Send HDMI signals up to 100 Meters – Extend the reach of the HDMI with HDCP signals far beyond the capabilities of typical HDMI cabling
- Standard Twisted Pair Cable – Save time and effort in installation by leveraging pre-existing cost effective twisted pair cable, see the Cabling for Success with DXLink white paper for more details
- Hot Swappable – Easily add or replace I/O boards at any time after deployment - the system automatically recognizes the new configuration and activates the boards
- HDCP Compliant
Thông số kỹ thuật
| FG Numbers | FG1058-570 |
recommended_accessories
Hỗ trợ Tư vấn viênNOTE: The most current and complete specifications for this product are found in the data sheet. Specifications are subject to change.
