DGX-I-DXL

Enova® DGX DXLink™ Twisted Pair Input Board

Larger Images

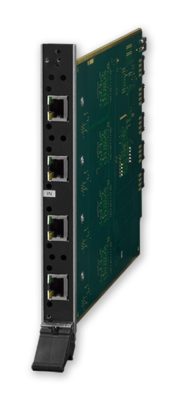

The DGX-I-DXL is a HDCP compliant twisted pair cable input board for the Enova DGX 8, 16, 32 and 64 Digital Media Enclosures. It has four connections per board designed to receive audio and video from DXLink Twisted Pair Transmitters while passing bi-directional control and Ethernet signals over one standard twisted pair cable up to 100m. DXLink Power is available from the DXLink Input Board to power DXLink Twisted Pair Transmitters.

Common Applications

The Enova DGX DXLink Twisted Pair Input Board is ideal for applications where source devices are located up to 100 meters away from the Enova DGX Digital Media Switcher and need to be distributed throughout a commercial or residential environment.

Configuration Tool

Downloads

  Version Language Size Uploaded
Data Sheet
updated: Jul 06, 2018
    322 KB Jul 06, 2018
Comparison Chart
updated: Jul 09, 2018
    68.6 KB Jul 09, 2018
Manuals
Instruction Manual - Enova DGX 8, 16, 32, 64 Digital Media Switchers
updated: Mar 26, 2018
    16.4 MB Mar 26, 2018
TSG Enova DGX Board Repalcement Rev N
updated: Jul 16, 2018
    523 KB Jul 16, 2018
Instructions - Enova DGX I/O Board and Endpoint Compatibility
updated: Mar 27, 2018
    117 KB Mar 27, 2018
Certifications
Enova DGX 100 Series CE Declaration of Conformity
updated: Apr 26, 2018
    276 KB Apr 26, 2018
Enova DGX 100 Series CB Test Certificate 60950
updated: Apr 26, 2018
    181 KB Apr 26, 2018
Enova DGX 100 Series CB Test Certificate 62368
updated: Apr 25, 2018
    166 KB Apr 25, 2018
Enova DGX 100 Series Enclosure UL Certificate of Compliance
updated: Apr 25, 2018
    176 KB Apr 25, 2018
Whitepapers
Using SDI with the Enova DGX & DVX
updated: Apr 25, 2018
    484 KB Apr 25, 2018
Cabling for Success with DXLink
updated: Apr 25, 2018
    1.6 MB Apr 25, 2018
Quick Start Guides
Quick Start Guide - Enova DGX 8, 16, 32, 64 Digital Media Switchers
updated: Mar 26, 2018
    419 KB Mar 26, 2018
Configuration Tools
Enova DGX 100 Series Configuration Tool
updated: Jan 11, 2019
    Jan 11, 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Only One Cable – Receive audio and video while passing control, Ethernet and power over one twisted pair cable
  • Send HDMI signals up to 100 Meters – Extend the reach of the HDMI with HDCP signals far beyond the capabilities of typical HDMI cabling
  • Standard Twisted Pair Cable – Save time and effort in installation by leveraging pre-existing cost effective twisted pair cable, see the Cabling for Success with DXLink white paper for more details
  • Hot Swappable – Easily add or replace I/O boards at any time after deployment - the system automatically recognizes the new configuration and activates the boards
  • HDCP Compliant

Specifications

FG Numbers FG1058-570

Recommended Accessories

  • DX-TX-DWP

    DXLink™ Multi-Format Decor Style Wallplate Transmitters (US)
  • DX-TX-WP

    DXLink™ Multi-Format Wallplate Transmitters
